Crimp sequence for one crimp. Crimp sequence for two crimps.
mm²
KRD/KSD
Name
Number of
crimps
Net weight
(kg)
Die holder
required
16 0,101 Yes
25 0,103 Yes
35 B11 0,109 Yes
50 B12 0,108 Yes
70 B14 0,112 Yes
95 B16 0,107 Yes
120 B19 0,118 Yes
150 B22 0,148 Yes
185 B25 0,135 Yes
240 B27 0,128 Yes
300 B30 0,115 Yes
400 B2532 1,018 No
500 B2540 0,891 No
630 B2545 0,899 No
800 B2553 0,912 No
.6:41
06

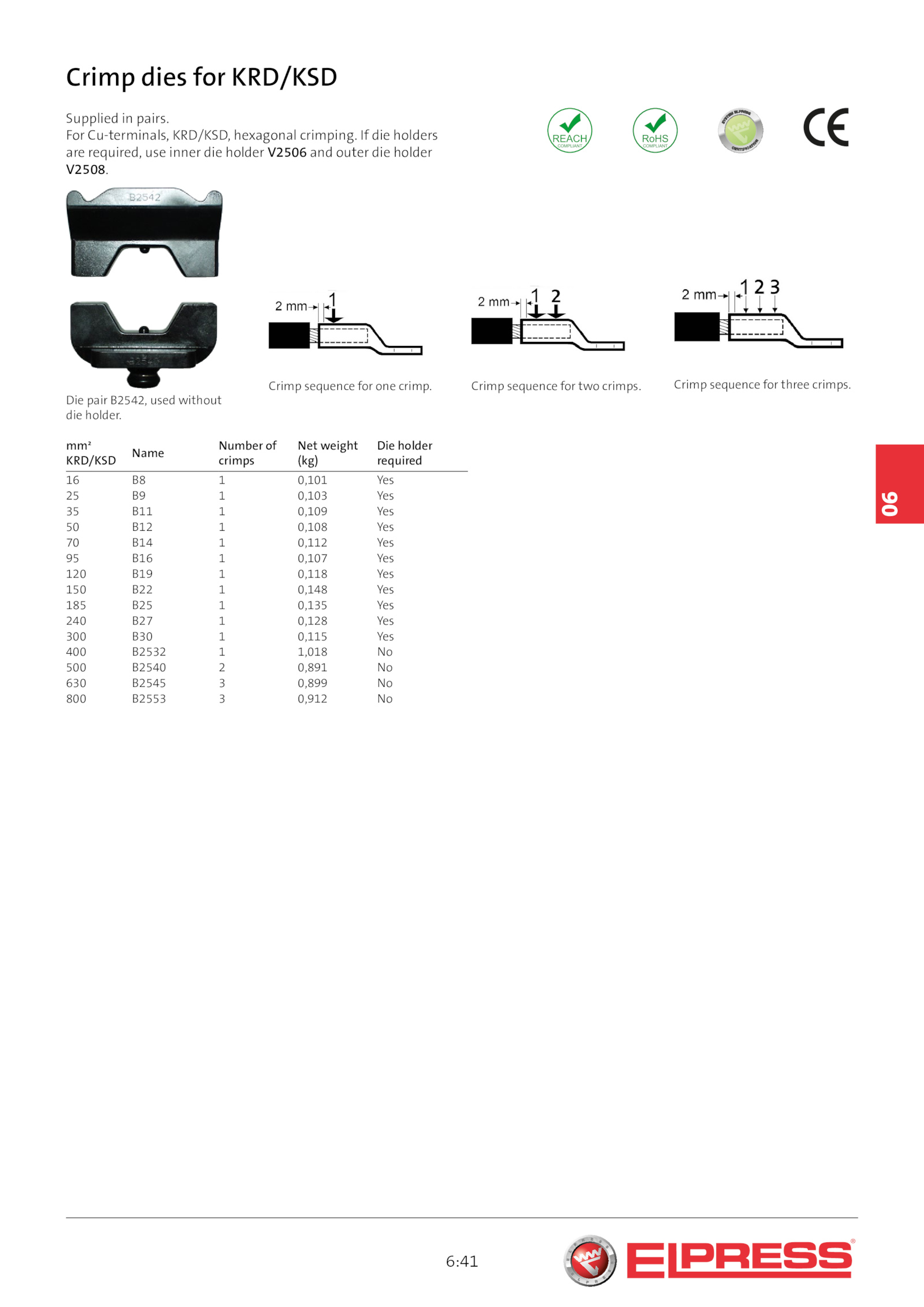

Crimp dies for KRD/KSD
Supplied pairs. die holders
are required, use inner die holder V2506 and outer die holder
V2508.
Die pair B2542, used without
die holder.
For Cu-terminals, KRD/KSD, hexagonal crimping. Crimp sequence for three crimps
