Crimp sequence
Stranded Al
mm²
Solid Al
mm²
Matrix Punch
Number of
crimps
Matrix holder
required
Punch holder
required
Note
16-25 16-35 P13M P13D Yes No
35-70 50-95 P20M P20D Yes No
95-150 120-185 P25M P25D Yes No
185-240 240 13P32M P32D No
300-400 13P37M 13P37D Matrix with safety line.
Punch and Matrix for pre-rounding
For conductors, pre-rounding.
Matrix holder V1320, matrix
R6MR, punch 13R6DR.
Stranded Al
mm²
Solid Al
mm²
Matrix Punch
Number of
crimps
Matrix holder
required
Punch holder
required
16 (+25) R6MR 13R6DR Yes No
25 R7MR 13R7DR Yes No
35 R8MR 13R8DR Yes No
50 R9MR 13R9DR Yes No
70 R12MR 13R12DR Yes No
95 120 R13MR 13R13DR Yes No
120 150 R15MR 13R15DR Yes No
150 185 R16MR 13R16DR Yes No
185 240 13R18MR 13R18DR Yes No
240 13R20MR 13R20DR Yes No
. For the indent crimping Al-terminals,
two crimps are always required.
For 16-150 (185 solid) mm² use matrix holder V1320.6:28

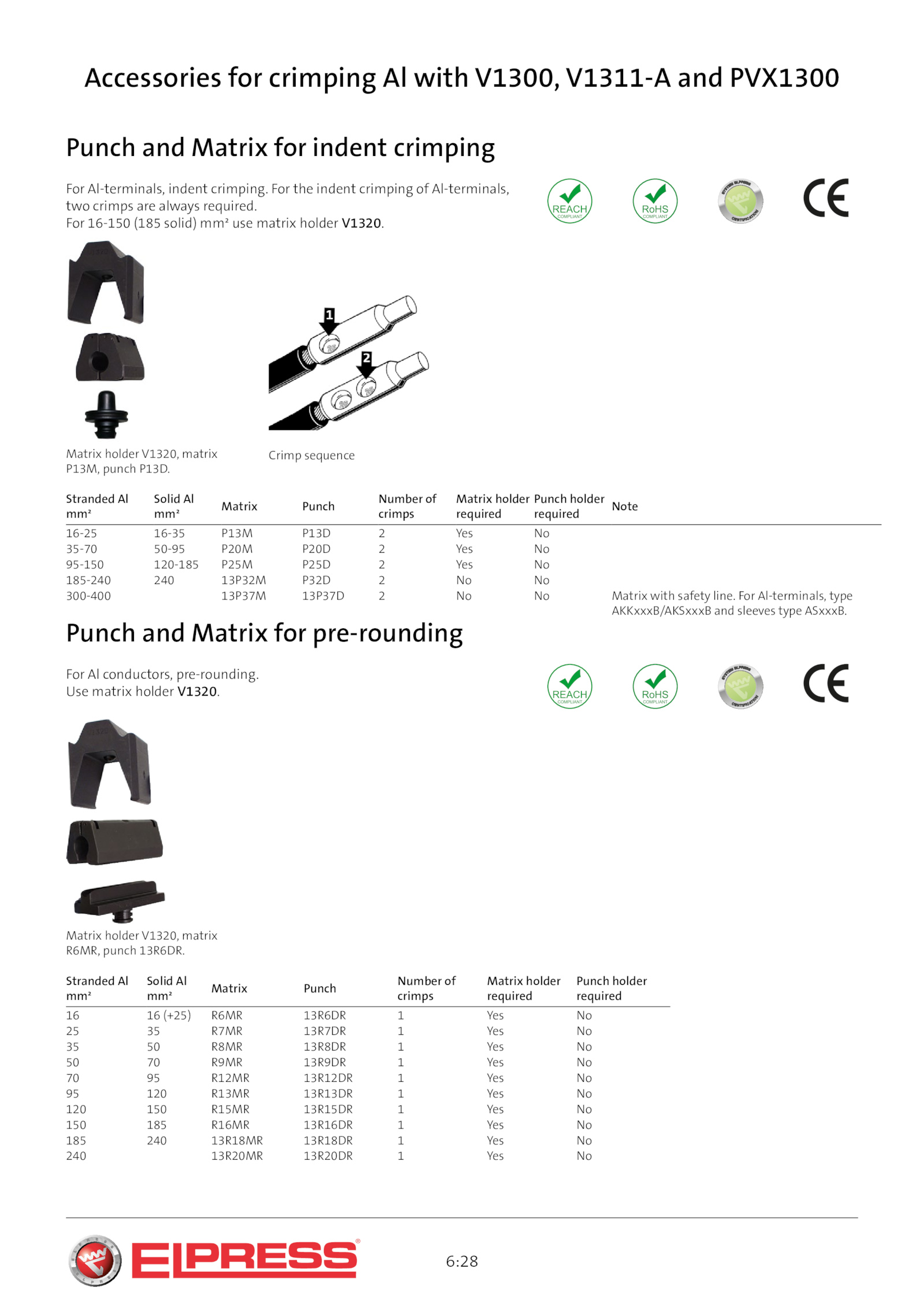

Accessories for crimping with V1300, V1311-A and PVX1300
Punch and Matrix for indent crimping
For Al-terminals, indent crimping. For Al-terminals, type
AKKxxxB/AKSxxxB and sleeves type ASxxxB.
Matrix holder V1320, matrix
P13M, punch P13D.
Use matrix holder V1320
