No die holders are needed. Crimp sequence for one crimp.
No die holders are needed. Crimp sequence for two crimps. Crimp sequence for two crimps.
Die pair 13DB20.
mm² Name
Number of
crimps
Net weight
(kg)
10 13DB8 0,448
16 13DB9 0,447
25 13DB11 0,462
35 13DB13 0,477
50 13DB14,5 0,480
70 13DB17 0,486
95 13DB20 0,484
120 13DB22 0,441
150 13DB25 0,440
185 13DB27 0,443
240 13DB30 0,453
300 13DB32 0,428
Crimp dies for DV1300C2 and PVX1300C2
Supplied pairs.
For Cu-terminals, type KR/KRF and KS/KSF and flexible conductors.
Die pair 13DCB20.
mm² Name
Number of
crimps
Net weight
(kg)
10 13DCB8 0,456
16 13DCB9 0,440
25 13DCB11 0,465
35 13DCB13 0,486
50 13DCB14,5 0,497
70 13DCB17 0,503
95 13DCB20 0,507
120 13DCB22 0,450
150 13DCB25 0,498
185 13DCB27 0,514
240 13DCB30 0,534
300 13DCB32 0,490
. Crimp sequence for one crimp.
For Cu-terminals, type KR/KRF and KS/KSF and flexible conductors.6:18

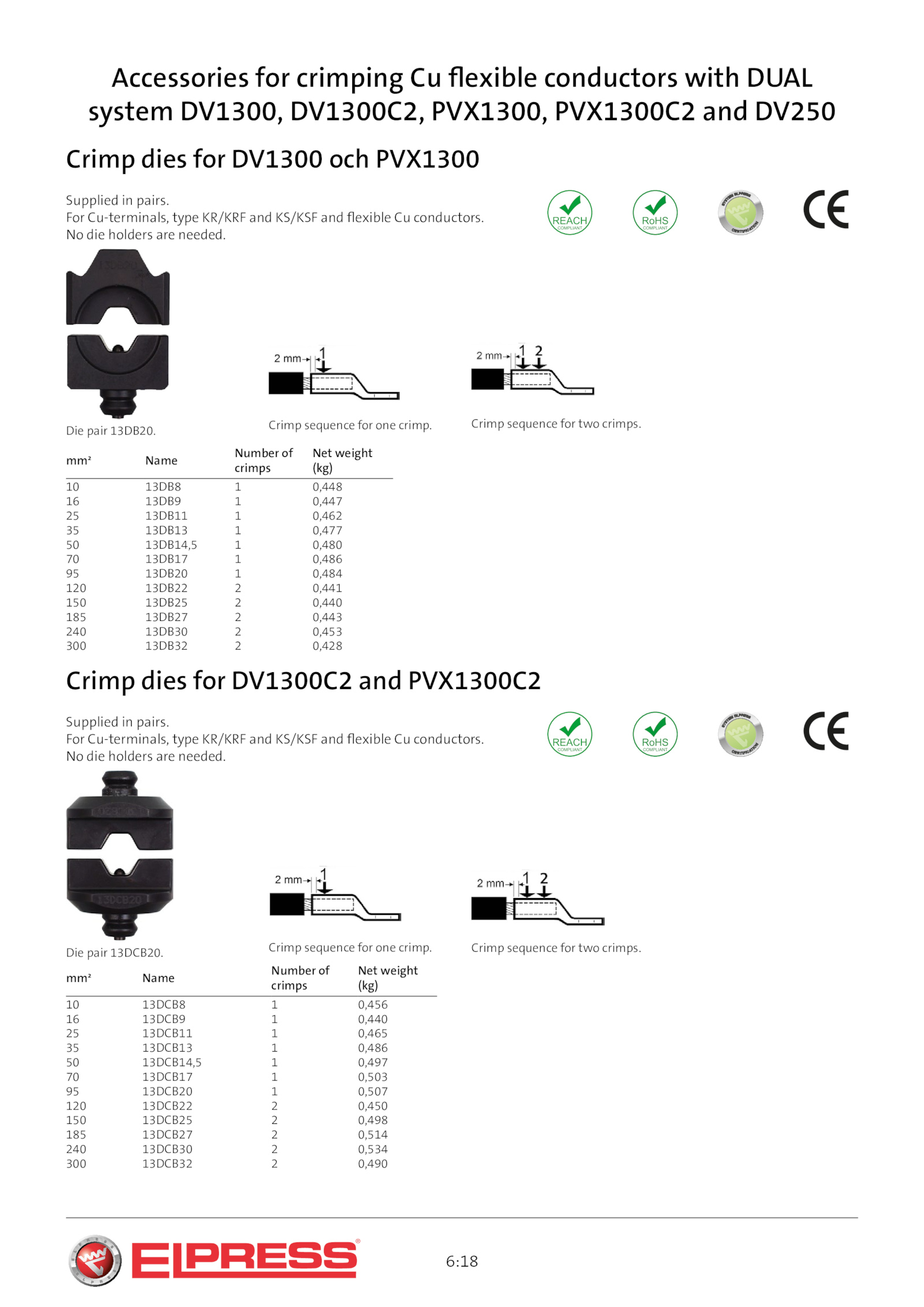

Accessories for crimping flexible conductors with DUAL
system DV1300, DV1300C2, PVX1300, PVX1300C2 and DV250
Crimp dies for DV1300 och PVX1300
Supplied pairs
