6:9
06

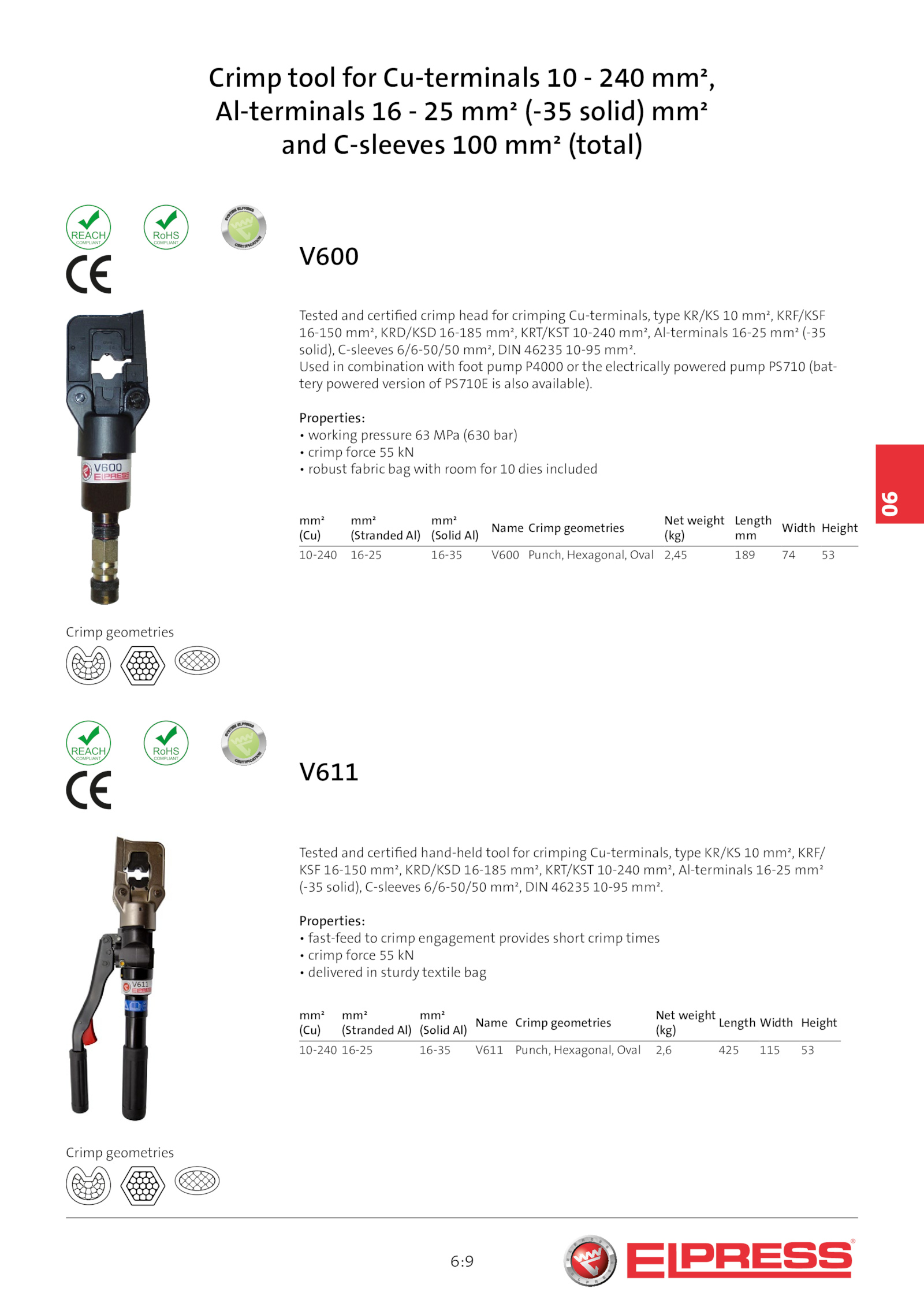

Crimp tool for Cu-terminals 240 mm²,
Al-terminals mm² (-35 solid) mm²
and C-sleeves 100 mm² (total)
V600
Crimp geometries
Tested and certified crimp head for crimping Cu-terminals, type KR/KS mm², KRF/KSF
16-150 mm², KRD/KSD 16-185 mm², KRT/KST 10-240 mm², Al-terminals 16-25 mm² (-35
solid), C-sleeves 6/6-50/50 mm², DIN 46235 10-95 mm².
Properties:
• working pressure MPa (630 bar)
• crimp force kN
• robust fabric bag with room for dies included
mm²
(Cu)
mm²
(Stranded Al)
mm²
(Solid Al)
Name Crimp geometries
Net weight
(kg)
Length
mm
Width Height
10-240 16-25 16-35 V600 Punch, Hexagonal, Oval 2,45 189 53
V611
Crimp geometries
Tested and certified hand-held tool for crimping Cu-terminals, type KR/KS mm², KRF/
KSF 16-150 mm², KRD/KSD 16-185 mm², KRT/KST 10-240 mm², Al-terminals 16-25 mm²
(-35 solid), C-sleeves 6/6-50/50 mm², DIN 46235 10-95 mm².
Properties:
• fast-feed crimp engagement provides short crimp times
• crimp force kN
• delivered sturdy textile bag
mm²
(Cu)
mm²
(Stranded Al)
mm²
(Solid Al)
Name Crimp geometries
Net weight
(kg)
Length Width Height
10-240 16-25 16-35 V611 Punch, Hexagonal, Oval 2,6 425 115 53
.
Used combination with foot pump P4000 the electrically powered pump PS710 (bat-
tery powered version PS710E also available)
