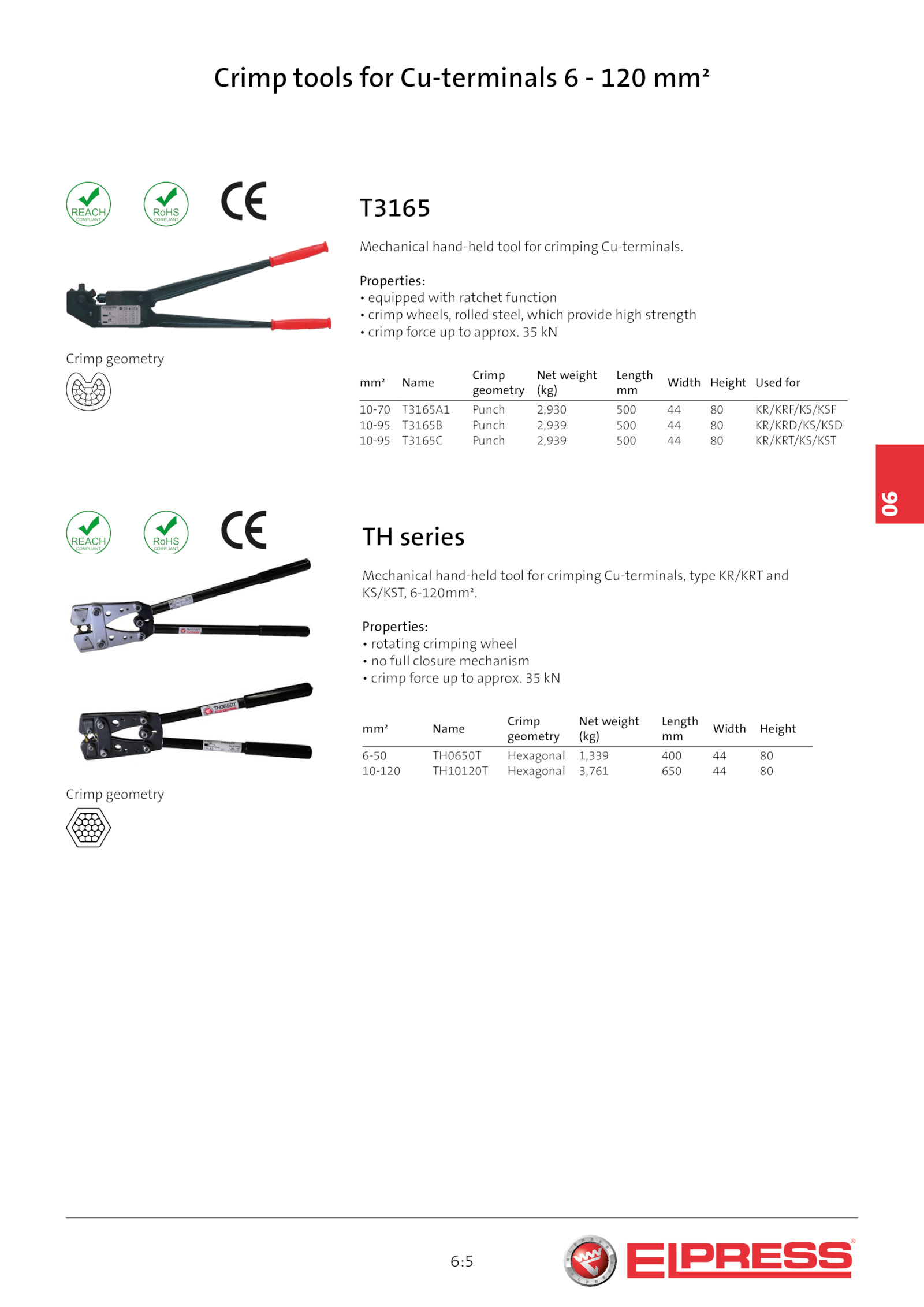

Crimp tools for Cu-terminals 120 mm²
T3165
Crimp geometry
Mechanical hand-held tool for crimping Cu-terminals. kN
mm² Name
Crimp
geometry
Net weight
(kg)
Length
mm
Width Height Used for
10-70 T3165A1 Punch 2,930 500 KR/KRF/KS/KSF
10-95 T3165B Punch 2,939 500 KR/KRD/KS/KSD
10-95 T3165C Punch 2,939 500 KR/KRT/KS/KST
TH series
Crimp geometry
Mechanical hand-held tool for crimping Cu-terminals, type KR/KRT and
KS/KST, 6-120mm². kN
mm² Name
Crimp
geometry
Net weight
(kg)
Length
mm
Width Height
6-50 TH0650T Hexagonal 1,339 400 80
10-120 TH10120T Hexagonal 3,761 650 80
.
Properties:
• equipped with ratchet function
• crimp wheels, rolled steel, which provide high strength
• crimp force approx.
Properties:
• rotating crimping wheel
• full closure mechanism
• crimp force approx
