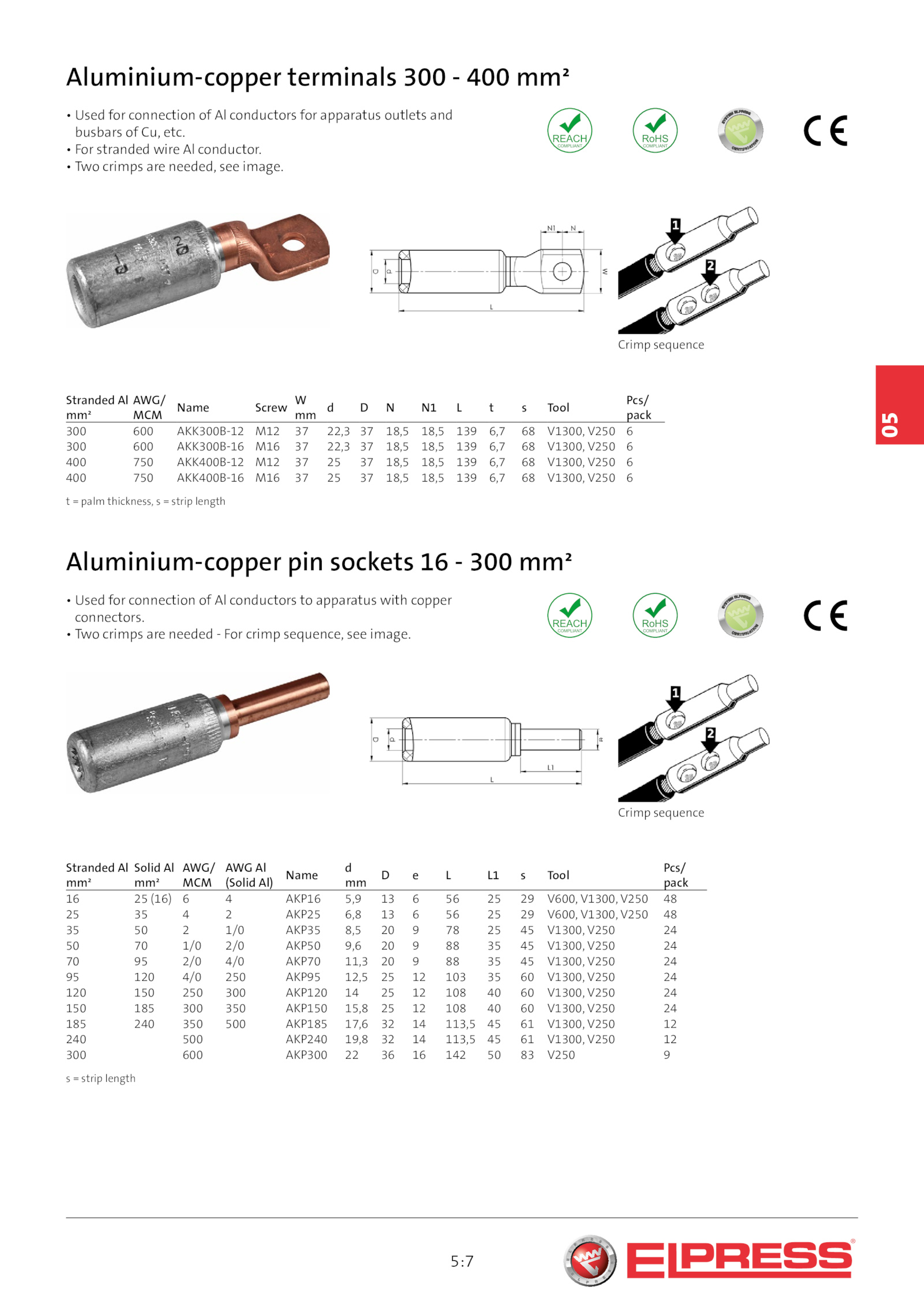

Aluminium-copper terminals 300 400 mm²
• Used for connection conductors for apparatus outlets and
busbars Cu, etc.
Crimp sequence
Stranded Al
mm²
Solid Al
mm²
AWG/
MCM
AWG Al
(Solid Al)
Name
d
mm
D Tool
Pcs/
pack
16 (16) AKP16 5,9 V600, V1300, V250 48
25 AKP25 6,8 V600, V1300, V250 48
35 1/0 AKP35 8,5 V1300, V250 24
50 1/0 2/0 AKP50 9,6 V1300, V250 24
70 2/0 4/0 AKP70 11,3 V1300, V250 24
95 120 4/0 250 AKP95 12,5 103 V1300, V250 24
120 150 250 300 AKP120 108 V1300, V250 24
150 185 300 350 AKP150 15,8 108 V1300, V250 24
185 240 350 500 AKP185 17,6 113,5 V1300, V250 12
240 500 AKP240 19,8 113,5 V1300, V250 12
300 600 AKP300 142 V250 9
s strip length
.
Crimp sequence
Stranded Al
mm²
AWG/
MCM
Name Screw
W
mm
d Tool
Pcs/
pack
300 600 AKK300B-12 M12 22,3 18,5 18,5 139 6,7 V1300, V250 6
300 600 AKK300B-16 M16 22,3 18,5 18,5 139 6,7 V1300, V250 6
400 750 AKK400B-12 M12 18,5 18,5 139 6,7 V1300, V250 6
400 750 AKK400B-16 M16 18,5 18,5 139 6,7 V1300, V250 6
t palm thickness, strip length
Aluminium-copper pin sockets 300 mm²
• Used for connection conductors apparatus with copper
connectors.
• Two crimps are needed, see image.
• Two crimps are needed For crimp sequence, see image
