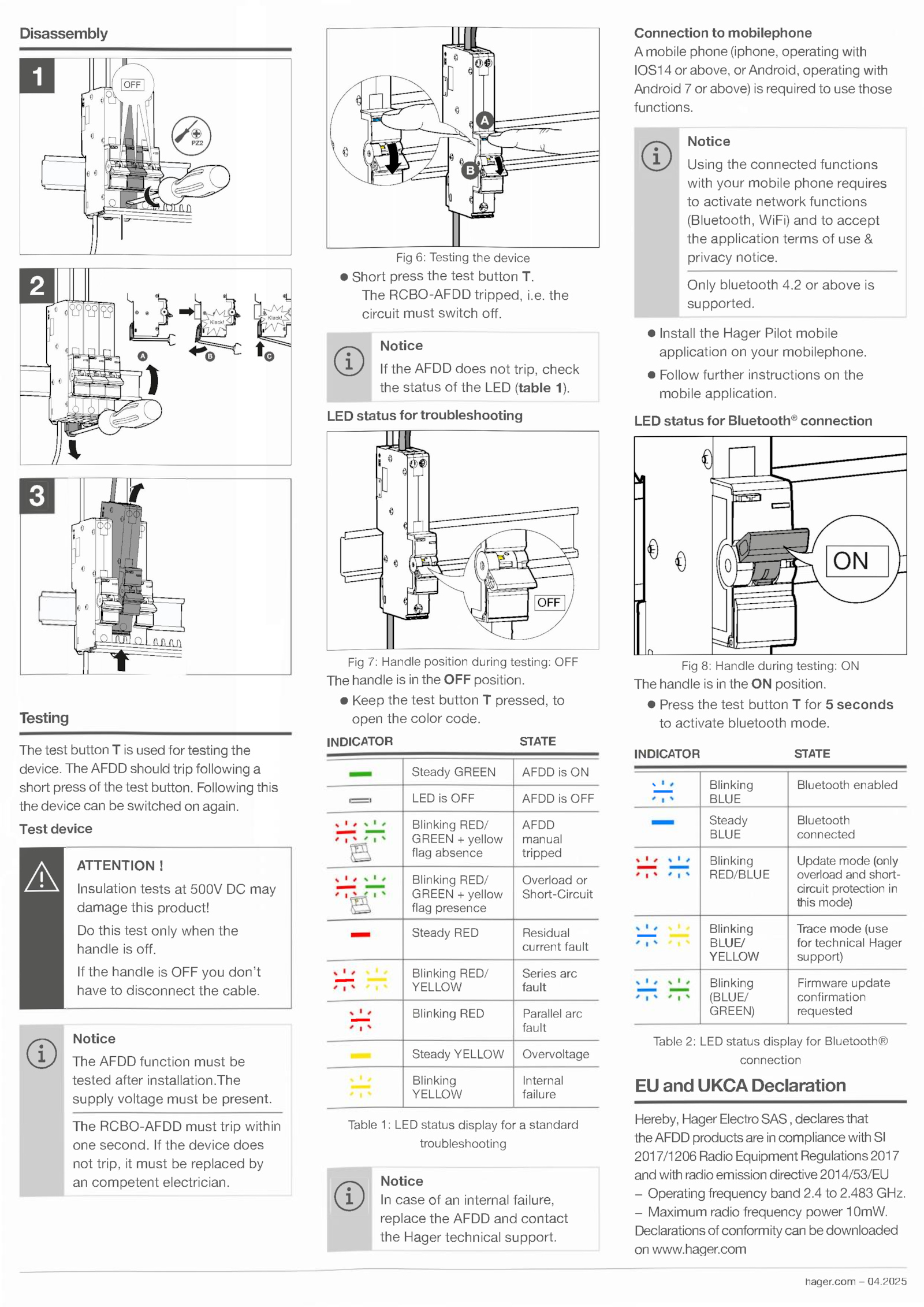

com 04.Disassembly Fig Testing the device Connection mobilephone A mobile phone (iphone, operating with IOS14 above, Android, operating with Android above) required use those functions. • Press the test button for seconds to activate bluetooth mode. Table LED status display for standard troubleshooting © Notice The AFDD function must be tested after installation. The RCBO-AFDD tripped, i. Declarations conformity can downloaded on www. The test button used for testing the device.com hager. LED status fortroubleshooting © Notice If the AFDD does not trip, check the status the LED (table 1). • Follow further instructions the mobile application.2025 . Only bluetooth 4.4 2. LED status for Bluetooth® connection Fig Handle during testing: ON The handle the position. Testing Fig Handle position during testing: OFF The handle the OFF position.e.hager. INDICATOR STATE *— Blinking BLUE Bluetooth enabled Steady BLUE Bluetooth connected Blinking RED/BLUE Update mode (only overload and short- circuit protection in this mode) — Blinking BLUE/ YELLOW Trace mode (use for technical Hager support) Blinking (BLUE/ GREEN) Firmware update confirmation requested Table LED status display for Bluetooth® connection EU and UKCA Declaration Hereby, Hager Electro SAS, declaresthat the AFDD products are compliance with SI 2017/1206 Radio Equipment Regulations2017 and with radio emission directive 2014/53/EU - Operating frequency band 2. The RCBO-AFDD must trip within one second. the device does not trip, must replaced by an competent electrician. Following this the device can switched again.The supply voltage must present. - Maximum radio frequency power 10mW. Test device ATTENTION ! Insulation tests 500V may damage this product! Do this test only when the handle off.2 above is supported. If the handle OFF you don’t have disconnect the cable. INDICATOR STATE Steady GREEN AFDD ON 1 LED OFF AFDD OFF Blinking RED/ GREEN yellow flag absence AFDD manual tripped Blinking RED/ GREEN yellow flag presence Overload or Short-Circuit Steady RED Residual current fault —- Blinking RED/ YELLOW Series arc fault — Blinking RED Parallel arc fault Steady YELLOW Overvoltage Blinking YELLOW Internal failure Notice In case internal failure, replace the AFDD and contact the Hager technical support. the circuit must switch off. • Short press the test button T. • Keep the test button pressed, to open the color code. • Install the Hager Pilot mobile application your mobilephone.483 GHz. Notice Using the connected functions with your mobile phone requires to activate network functions (Bluetooth, WiFi) and accept the application terms use & privacy notice. The AFDD should trip following a short press the test button
