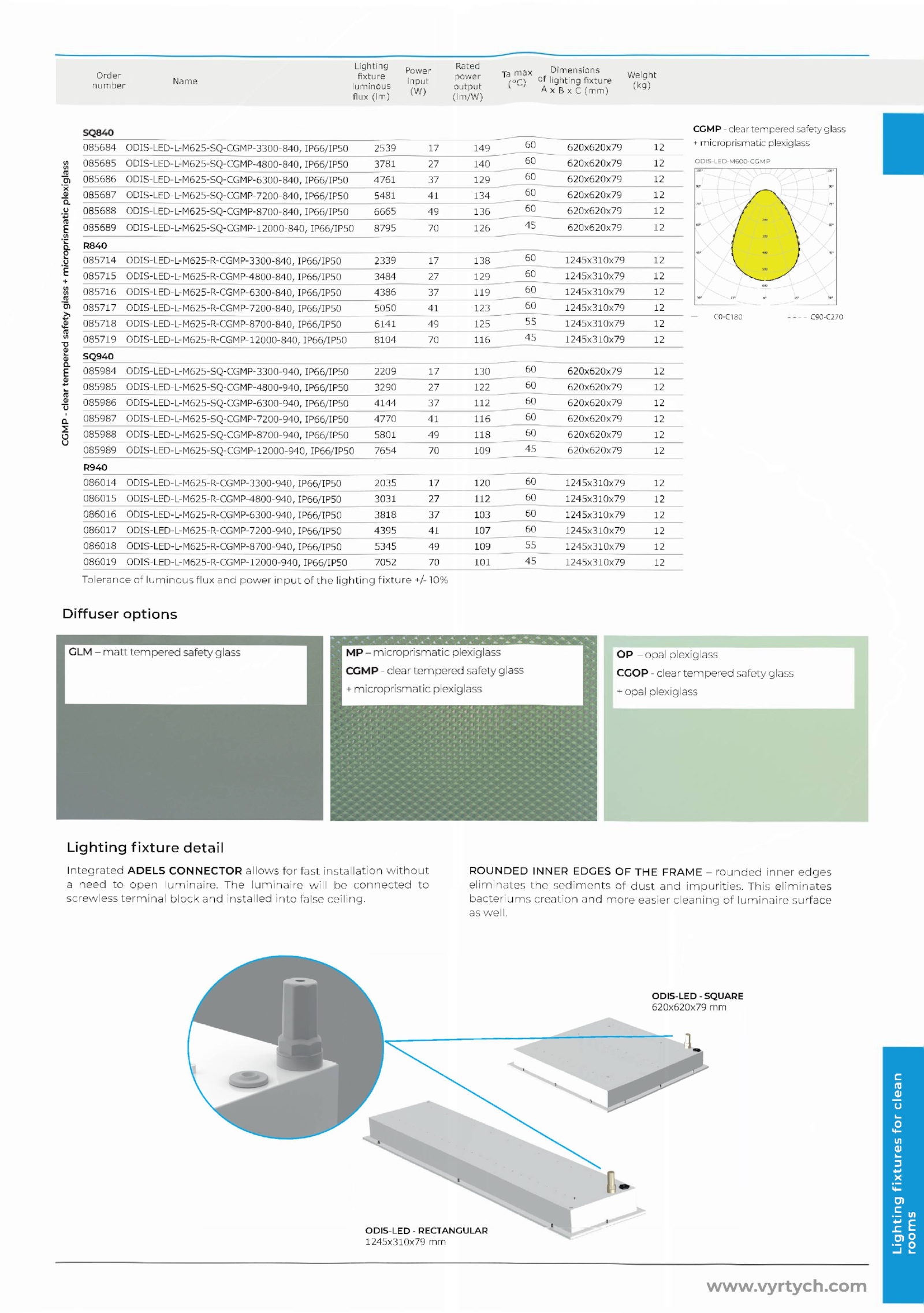

ODIS-LED RECTANGULAR
1245x310x79 mm
L
ig
h
tin
g
fix
tu
re
s
fo
r
clean
room
s
www. The luminaire will connected to
screwless terminal block and installed into false ceiling. This eliminates
bacteriums creation and more easier cleaning luminaire surface
as well.Lighting
fixture
luminous
flux (Im)
Rated
power
output
(Im/W)
Power
input
(W)
Weight
(kg)
Order
number
Name
Ta max Dimensions
/om lighting fixture
A (mm)
C
G
M
P
-
clear
tem
p
ered
safety
glass
+
m
icroprism
atic
plexiglass
085684 ODIS-LED-L-M625-SQ-CGMP-3300-840, IP66/IP50 2539 149 620x620x79 12
085685 ODIS-LED-L-M625-SQ-CGMP-4800-840, IP66/IP50 3781 140 620x620x79 12
085686 ODIS-LED-L-M625-SQ-CGMP-6300-840, IP66/IP50 4761 129 620x620x79 12
085687 ODIS-LED-L-M625-SQ-CGMP-7200-840, IP66/IP50 5481 134 620x620x79 12
085688 ODIS-LED-L-M625-SQ-CGMP-8700-840, IP66/IP50 6665 136 620x620x79 12
085689 ODIS-LED-L-M625-SQ-CGMP-12000-840, IP66/IP50 8795 126 620x620x79 12
R840
085714 ODIS-LED-L-M625-R-CGMP-3300-840, IP66/IP50 2339 138 1245x310x79 12
085715 ODIS-LED-L-M625-R-CGMP-4800-840, IP66/IP50 3484 129 1245x310x79 12
085716 ODIS-LED-L-M625-R-CGMP-6300-840, IP66/IP50 4386 119 1245x310x79 12
085717 ODIS-LED-L-M625-R-CGMP-7200-840, IP66/IP50 5050 123 1245x310x79 12
085718 ODIS-LED-L-M625-R-CGMP-8700-840, IP66/IP50 6141 125 1245x310x79 12
085719 ODIS-LED-L-M625-R-CGMP-12000-840, IP66/IP50 8104 116 1245x310x79 12
SQ94O
085984 ODIS-LED-L-M625-SQ-CGMP-3300-940, IP66/IP50 2209 130 620x620x79 12
085985 ODIS-LED-L-M625-SQ-CGMP-4800-940, IP66/IP50 3290 122 620x620x79 12
085986 ODIS-LED-L-M625-SQ-CGMP-6300-940, IP66/IP50 4144 112 620x620x79 12
085987 ODIS-LED-L-M625-SQ-CGMP-7200-940, IP66/IP50 4770 116 620x620x79 12
085988 ODIS-LED-L-M625-SQ-CGMP-8700-940, IP66/IP50 5801 118 620x620x79 12
085989 ODIS-LED-L-M625-SQ-CGMP-12000-940, IP66/IP50 7654 109 620x620x79 12
R940
086014 ODIS-LED-L-M625-R-CGMP-3300-940, IP66/IP50 2035 120 1245x310x79 12
086015 ODIS-LED-L-M625-R-CGMP-4800-940, IP66/IP50 3031 112 1245x310x79 12
086016 ODIS-LED-L-M625-R-CGMP-6300-940, IP66/IP50 3818 103 1245x310x79 12
086017 ODIS-LED-L-M625-R-CGMP-7200-940, IP66/IP50 4395 107 1245x310x79 12
086018 ODIS-LED-L-M625-R-CGMP-8700-940, IP66/IP50 5345 109 1245x310x79 12
086019 ODIS-LED-L-M625-R-CGMP-12000-940, IP66/IP50 7052 101 1245x310x79 12
Tolerance luminous flux and power input the lighting fixture +/-10%
CGMP clear tempered safety glass
+ microprismatic plexiglass
----- C0-C180 C90-C270
Diffuser options
Lighting fixture detail
Integrated ADELS CONNECTOR allows for fast installation without
a need open luminaire.vyrtych.com
.
OP opal plexiglass
CCOP clear tempered safety glass
+ opal plexiglass
ROUNDED INNER EDGES THE FRAME rounded inner edges
eliminates the sediments dust and impurities
