Design
The sensor made the following components:
• Housing (A)
• Connection cable (B):
–
– phase (black)
–
– neutral conductor (blue)
–
– Floating switch contact (2x white)
• Motion sensor (C)
• Button for setting the delay (D)
• LED (E)
Installation Safety instructions
The motion detector must only installed and put into opera-
tion qualified electrician.
• not route sensor lines together with power
supply lamp lines.
The HIGH BAY motion detector can connected any control
component with floating input that designed for permanent
contact (switch). The applicable safety regulations
and accident prevention regulations must observed. The unit mounted
directly dry lining box using the „Mounting Adapter“,
optionally available from OSRAM, ensure that the installation
conforms the guidelines. When motion longer registered, the luminaires
switch off after adjustable delay period.
WARNING!
Exposed, live cables damaged housing.
Function
The motion detector detects motion within detection area of
360° and switches the connected luminaires when motion is
registered.
.de
40083214100788
4008321410078
Page 4

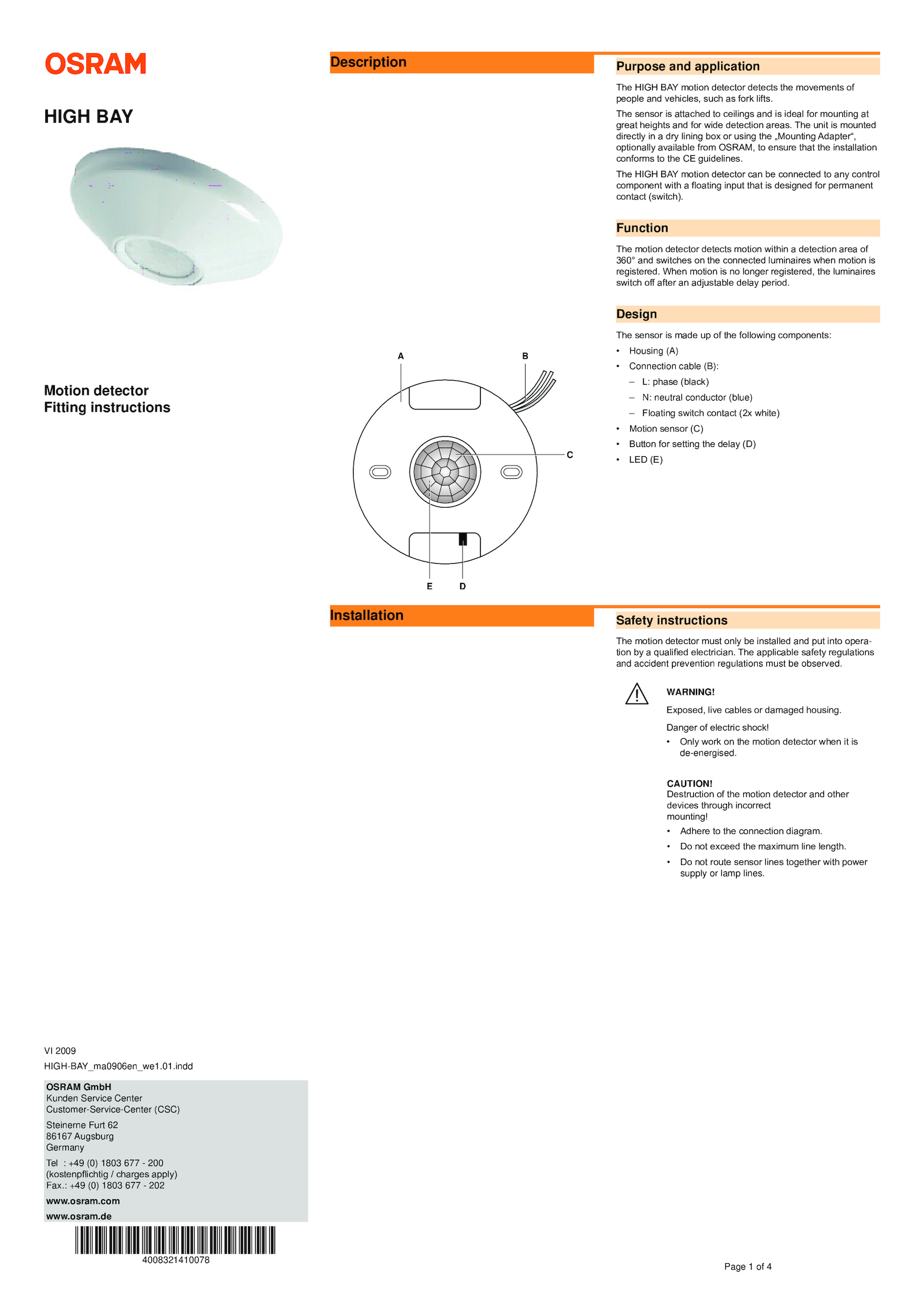

Motion detector
Fitting instructions
VI 2009
HIGH-BAY_ma0906en_we1.indd
HIGH BAY
D
E
B
A
C
Description Purpose and application
The HIGH BAY motion detector detects the movements of
people and vehicles, such fork lifts.: +49 (0) 1803 677 202
www.osram.
Danger electric shock!
• Only work the motion detector when is
de-energised.osram.
The sensor attached ceilings and ideal for mounting at
great heights and for wide detection areas.OSRAM GmbH
Kunden Service Center
Customer-Service-Center (CSC)
Steinerne Furt 62
86167 Augsburg
Germany
Tel +49 (0) 1803 677 200
(kostenpflichtig charges apply)
Fax.
CAUTION!
Destruction the motion detector and other
devices through incorrect
mounting!
• Adhere the connection diagram
