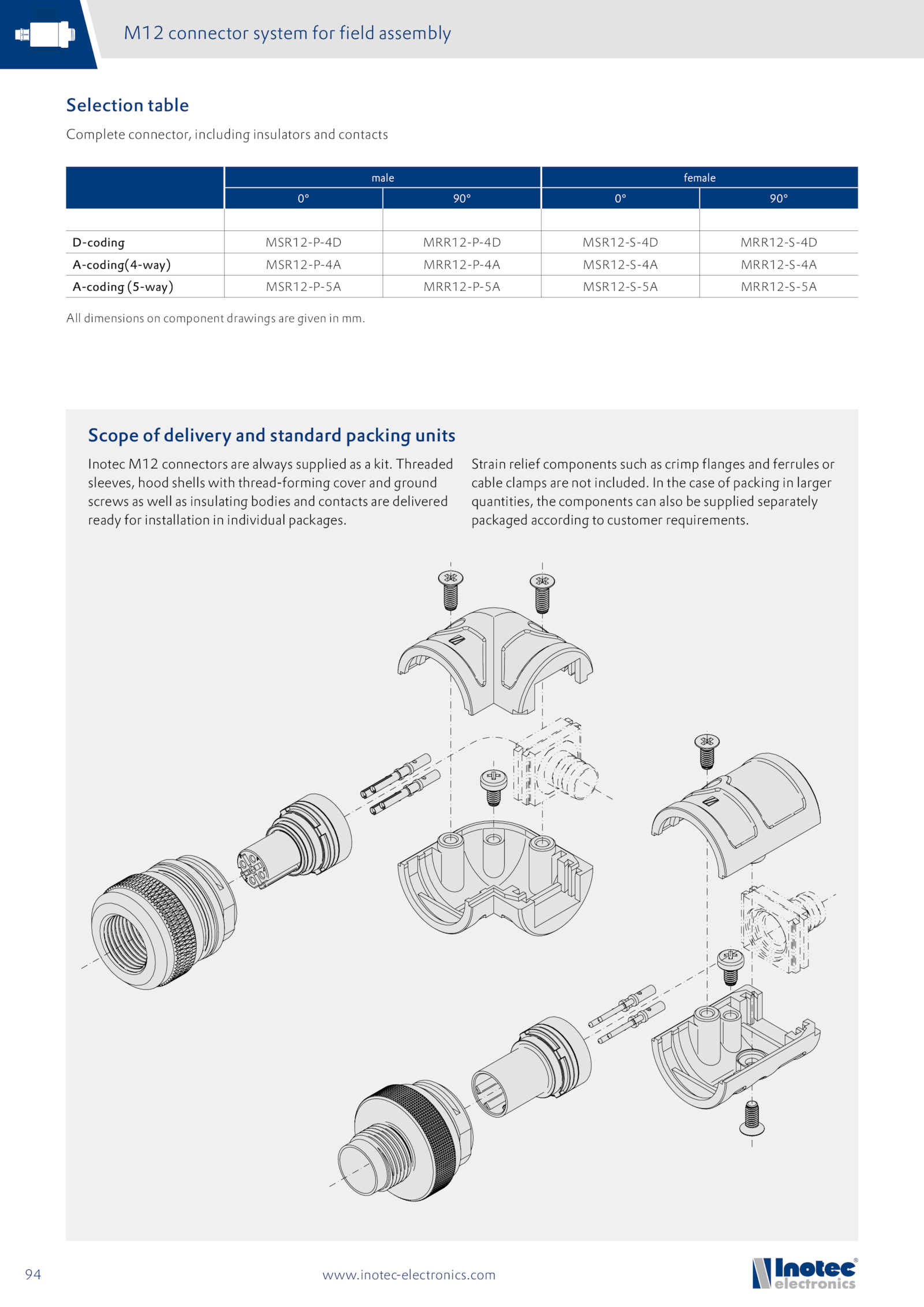

M12 connector system for field assembly
.male female
0° 90° 90°
D-coding MSR12-P-4D MRR12-P-4D MSR12-S-4D MRR12-S-4D
A-coding(4-way) MSR12-P-4A MRR12-P-4A MSR12-S-4A MRR12-S-4A
A-coding (5-way) MSR12-P-5A MRR12-P-5A MSR12-S-5A MRR12-S-5A
All dimensions component drawings are given mm.
Strain relief components such crimp flanges and ferrules or
cable clamps are not included. Threaded
sleeves, hood shells with thread-forming cover and ground
screws well insulating bodies and contacts are delivered
ready for installation individual packages. the case packing larger
quantities, the components can also supplied separately
packaged according customer requirements.
94 www.com
Selection table
Complete connector, including insulators and contacts
Scope delivery and standard packing units
Inotec M12 connectors are always supplied kit.inotec-electronics
