Central units sensitive signalling appli-
cations like onboard units for ERTMS*
systems trains, routers telecommu-
nications applications, industrial process
controls network equipment 19“
racks with IEC 60603-2 (DIN 41612)
interfaces are still elementary com-
ponent numerous electronic systems.
EMC-compliant and robust
hood systems for 19“ racks
The complete interface solution:
EMC-compliant housing design
HF-tight full-metal housing made
of die-cast zinc with labyrinth
cover
Unused cable inputs are sealed
with blind plugs RF-tight
Built-in additional grounding
points
Ergonomically designed hood
shape avoids pulling the cable
Minimal transition resistances to
shielded cables combination
with the Inotec crimp flange
technology dovetail design
Cable clamps different stand-
ard sizes for the introduction of
wire cable bundles
Flexible cabling via 3+2 cable
entries
High-quality and durable fasteners
for reliable long-term use
F-type insulator body for Inotec
crimp contacts, fire-resistance
level for rail vehicles according to
IEC 60603-2 level 45545-2
compliance R22/R23 HL3

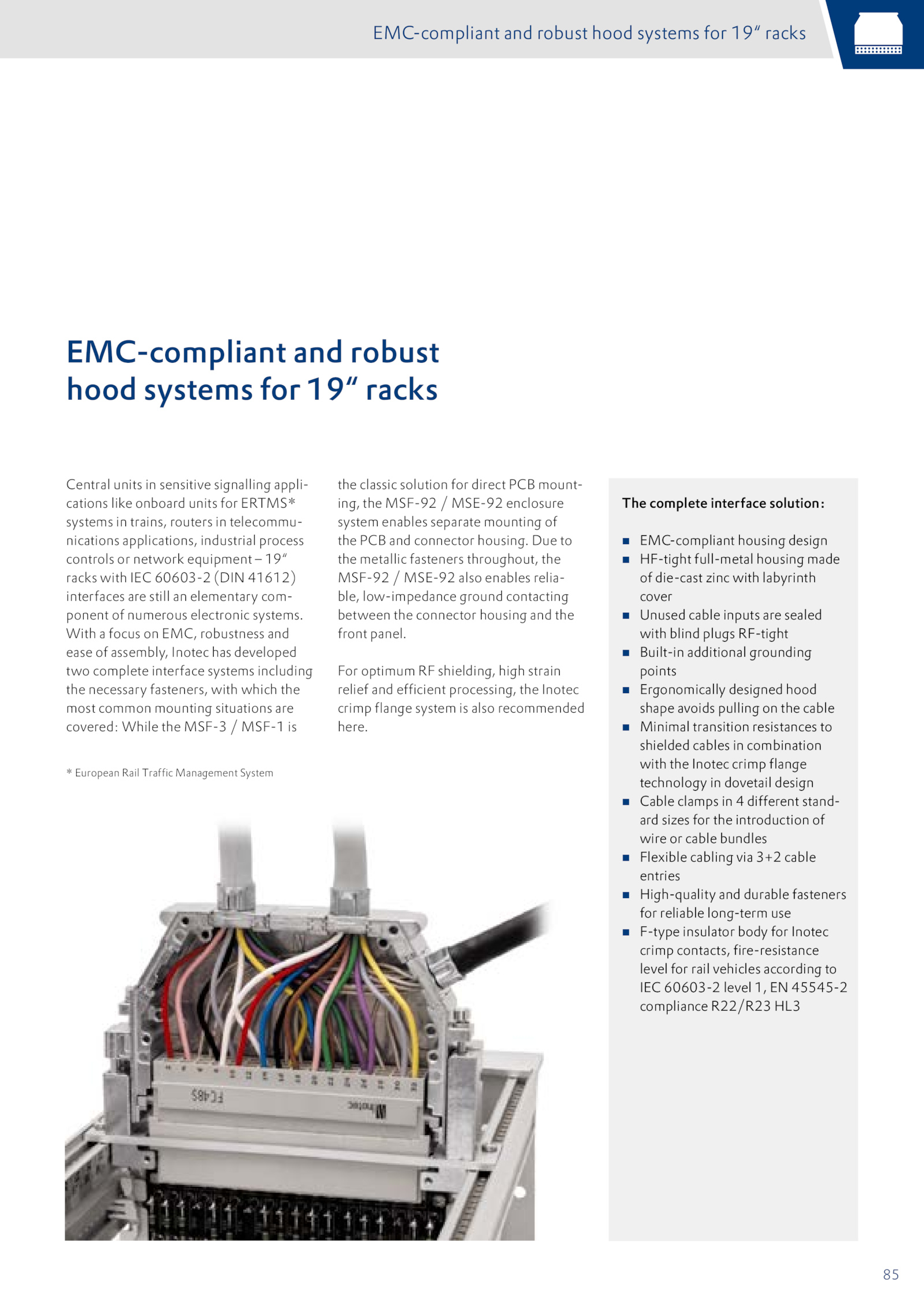

EMC-compliant and robust hood systems for 19“ racks
.
With focus EMC, robustness and
ease assembly, Inotec has developed
two complete interface systems including
the necessary fasteners, with which the
most common mounting situations are
covered: While the MSF-3 MSF-1 is
* European Rail Traffic Management System
the classic solution for direct PCB mount-
ing, the MSF-92 MSE-92 enclosure
system enables separate mounting of
the PCB and connector housing. Due to
the metallic fasteners throughout, the
MSF-92 MSE-92 also enables relia-
ble, low-impedance ground contacting
between the connector housing and the
front panel.
For optimum shielding, high strain
relief and efficient processing, the Inotec
crimp flange system also recommended
here
