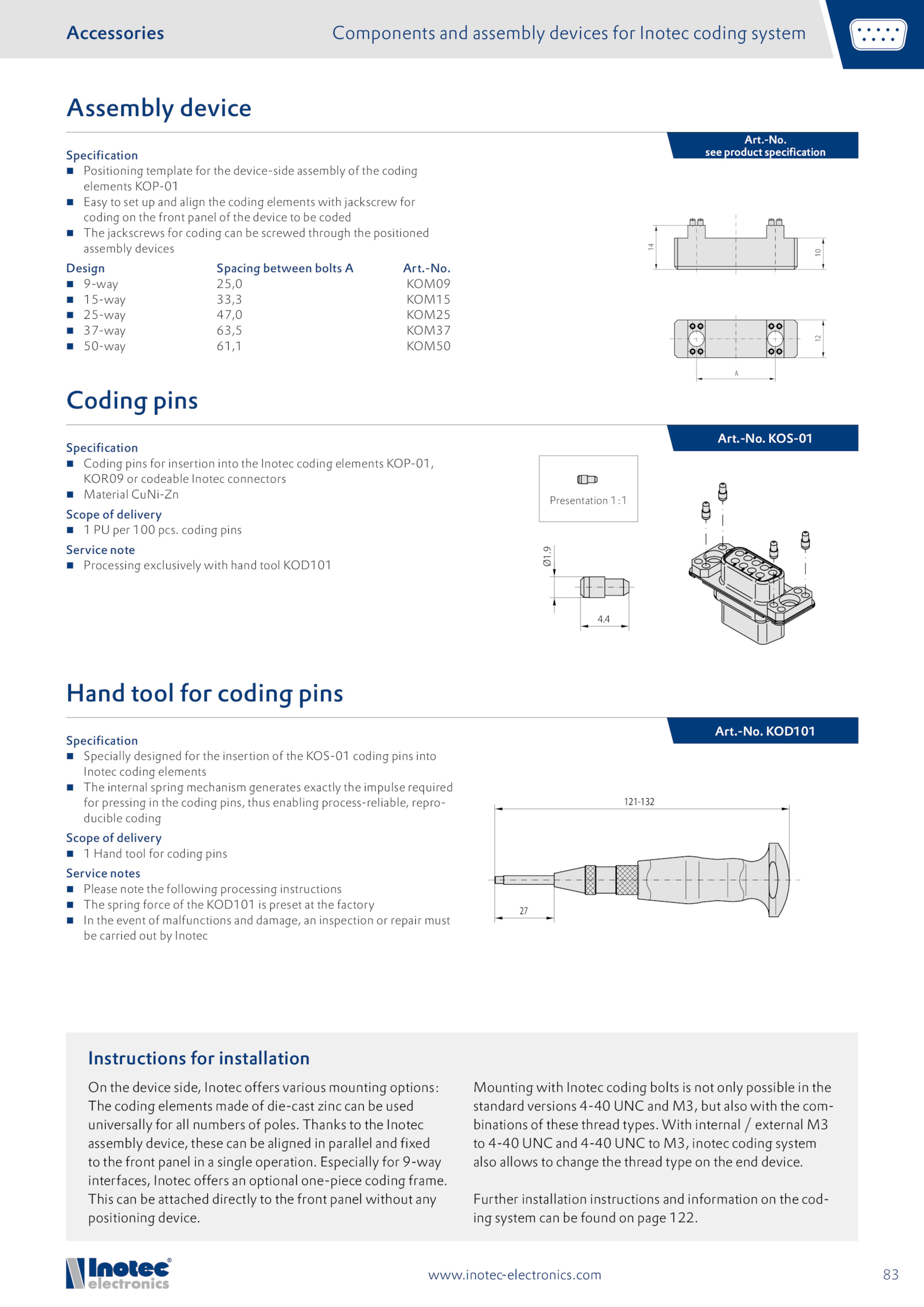

Components and assembly devices for Inotec coding system
Accessories
.inotec-electronics. KOD101
Specification
Positioning template for the device-side assembly the coding
elements KOP-01
Easy set and align the coding elements with jackscrew for
coding the front panel the device coded
The jackscrews for coding can screwed through the positioned
assembly devices
Design Spacing between bolts Art.4
1:1
83
www. coding pins
Service note
Processing exclusively with hand tool KOD101
Specification
Specially designed for the insertion the KOS-01 coding pins into
Inotec coding elements
The internal spring mechanism generates exactly the impulse required
for pressing the coding pins, thus enabling process-reliable, repro-
ducible coding
Scope delivery
Hand tool for coding pins
Service notes
Please note the following processing instructions
The spring force the KOD101 preset the factory
the event malfunctions and damage, inspection repair must
be carried out Inotec
Assembly device
Coding pins
Hand tool for coding pins
Instructions for installation
On the device side, Inotec offers various mounting options:
The coding elements made die-cast zinc can used
universally for all numbers poles. With internal external M3
to 4-40 UNC and 4-40 UNC M3, inotec coding system
also allows change the thread type the end device. KOS-01
Art.
Mounting with Inotec coding bolts not only possible the
standard versions 4-40 UNC and M3, but also with the com-
binations these thread types.-No.
This can attached directly the front panel without any
positioning device.
Further installation instructions and information the cod-
ing system can found page 122.A
10
14
12
27
121-132
5:1
1:1
Ø1.
see product specification
Art.
9-way 25,0 KOM09
15-way 33,3 KOM15
25-way 47,0 KOM25
37-way 63,5 KOM37
50-way 61,1 KOM50
Specification
Coding pins for insertion into the Inotec coding elements KOP-01,
KOR09 codeable Inotec connectors
Material CuNi-Zn
Scope delivery
per 100 pcs
