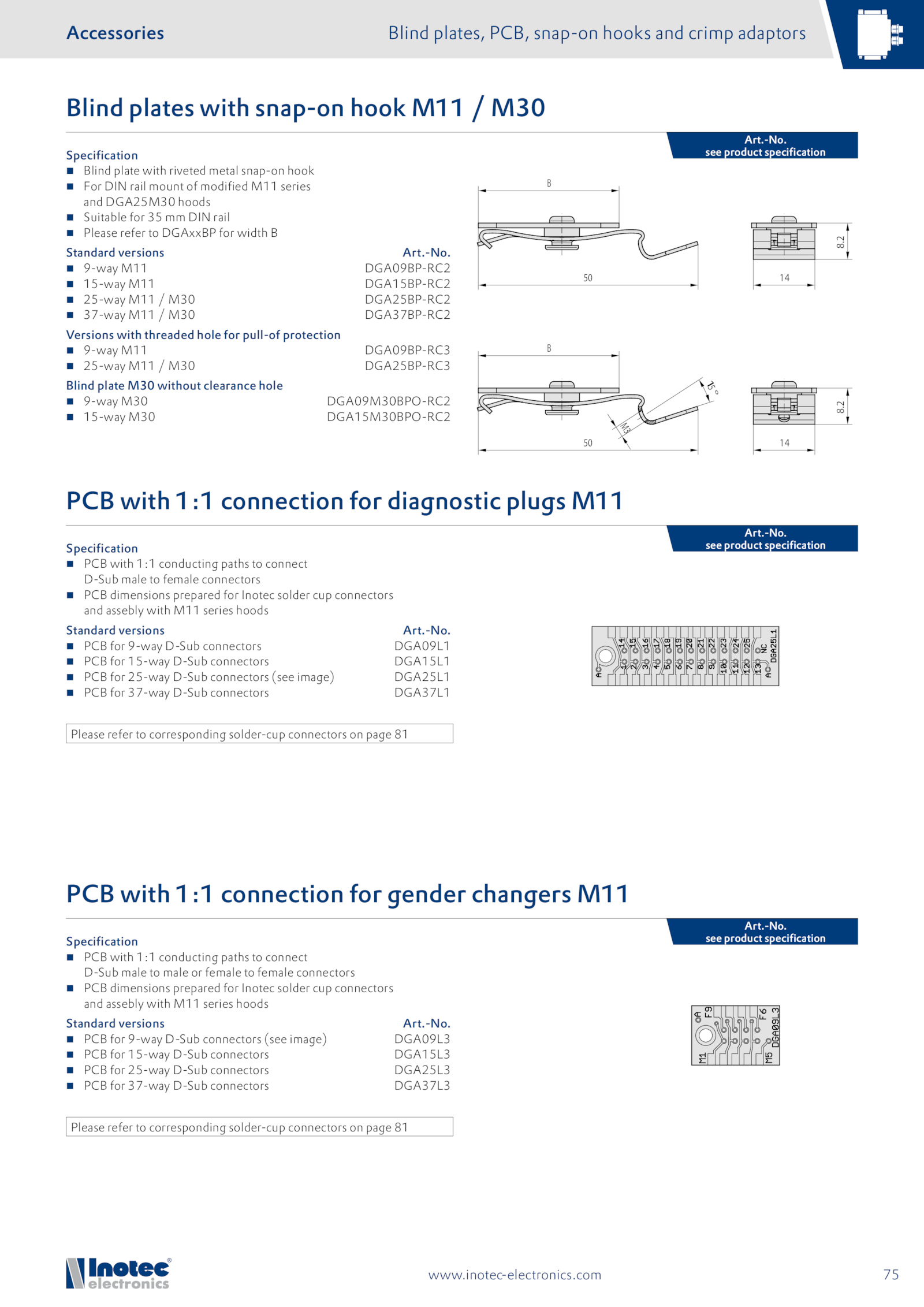

2 75 www. see product specification Art.-No.2 14 B 50 8. „ PCB for 9-way D-Sub connectors DGA09L1 „ PCB for 15-way D-Sub connectors DGA15L1 „ PCB for 25-way D-Sub connectors (see image) DGA25L1 „ PCB for 37-way D-Sub connectors DGA37L1 Please refer corresponding solder-cup connectors page 81 Specification „ PCB with 1:1 conducting paths connect D-Sub male male female female connectors „ PCB dimensions prepared for Inotec solder cup connectors and assebly with M11 series hoods Standard versions Art.-No.inotec-electronics.-No. „ PCB for 9-way D-Sub connectors (see image) DGA09L3 „ PCB for 15-way D-Sub connectors DGA15L3 „ PCB for 25-way D-Sub connectors DGA25L3 „ PCB for 37-way D-Sub connectors DGA37L3 Please refer corresponding solder-cup connectors page 81 PCB with 1:1 connection for diagnostic plugs M11 PCB with 1:1 connection for gender changers M11 Art.-No. see product specification Specification „ Blind plate with riveted metal snap-on hook „ For DIN rail mount modified M11 series and DGA25M30 hoods „ Suitable for DIN rail „ Please refer DGAxxBP for width B Standard versions Art. „ 9-way M11 DGA09BP-RC2 „ 15-way M11 DGA15BP-RC2 „ 25-way M11 M30 DGA25BP-RC2 „ 37-way M11 M30 DGA37BP-RC2 Versions with threaded hole for pull-of protection „ 9-way M11 DGA09BP-RC3 „ 25-way M11 M30 DGA25BP-RC3 Blind plate M30 without clearance hole „ 9-way M30 DGA09M30BPO-RC2 „ 15-way M30 DGA15M30BPO-RC2 Blind plates with snap-on hook M11 M30 Accessories Blind plates, PCB, snap-on hooks and crimp adaptors .-No.-No.14 B 50 1 5 ° M 3 8. see product specification Specification „ PCB with 1:1 conducting paths connect D-Sub male female connectors „ PCB dimensions prepared for Inotec solder cup connectors and assebly with M11 series hoods Standard versions Art.com Art
