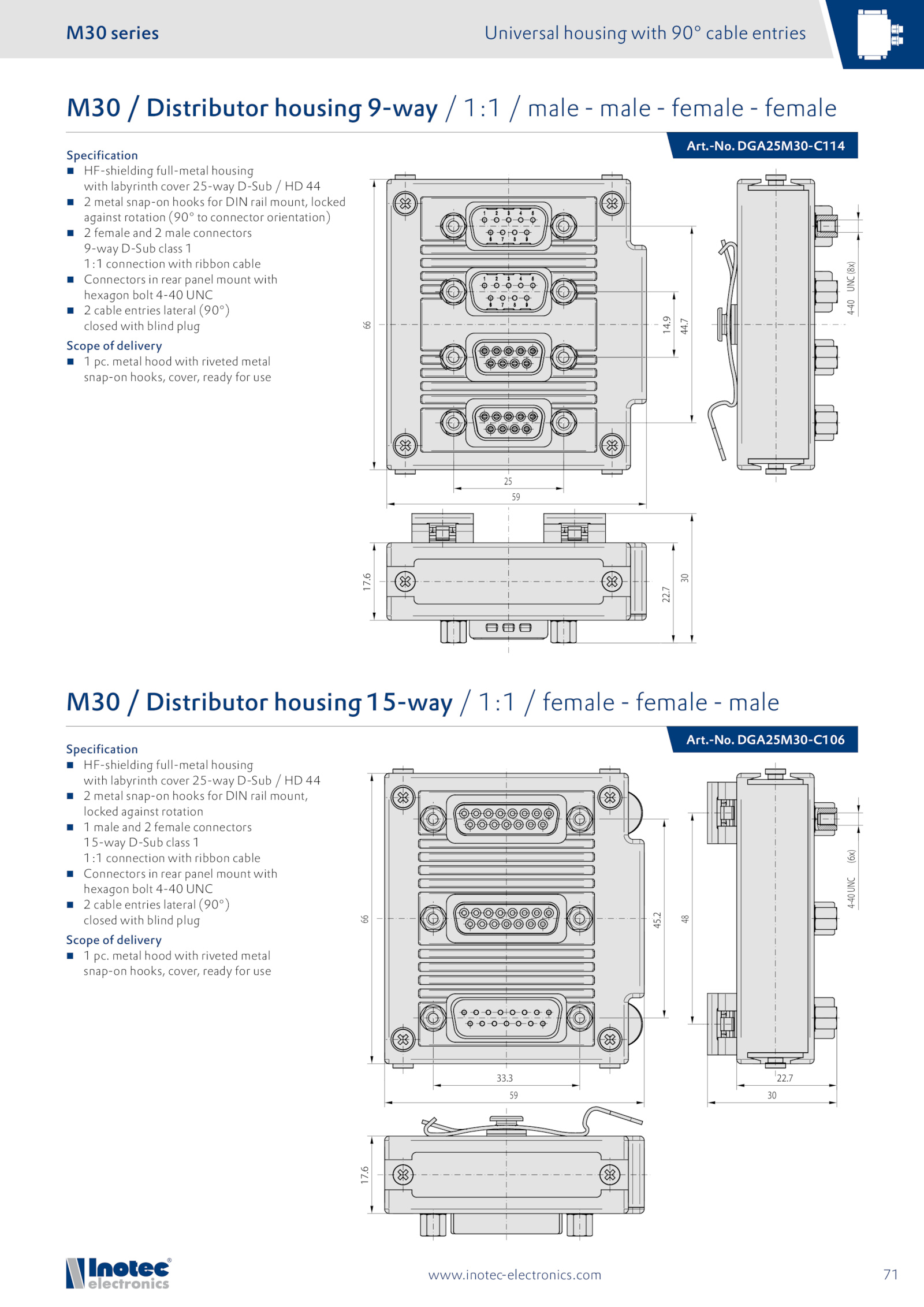

DGA25M30-C114
Specification
HF-shielding full-metal housing
with labyrinth cover 25-way D-Sub 44
metal snap-on hooks for DIN rail mount, locked
against rotation (90° connector orientation)
female and male connectors
9-way D-Sub class 1
1:1 connection with ribbon cable
Connectors rear panel mount with
hexagon bolt 4-40 UNC
cable entries lateral (90°)
closed with blind plug
Scope delivery
pc. metal hood with riveted metal
snap-on hooks, cover, ready for use
M30 Distributor housing 15-way 1:1 female female male
M30 series Universal housing with 90° cable entries
