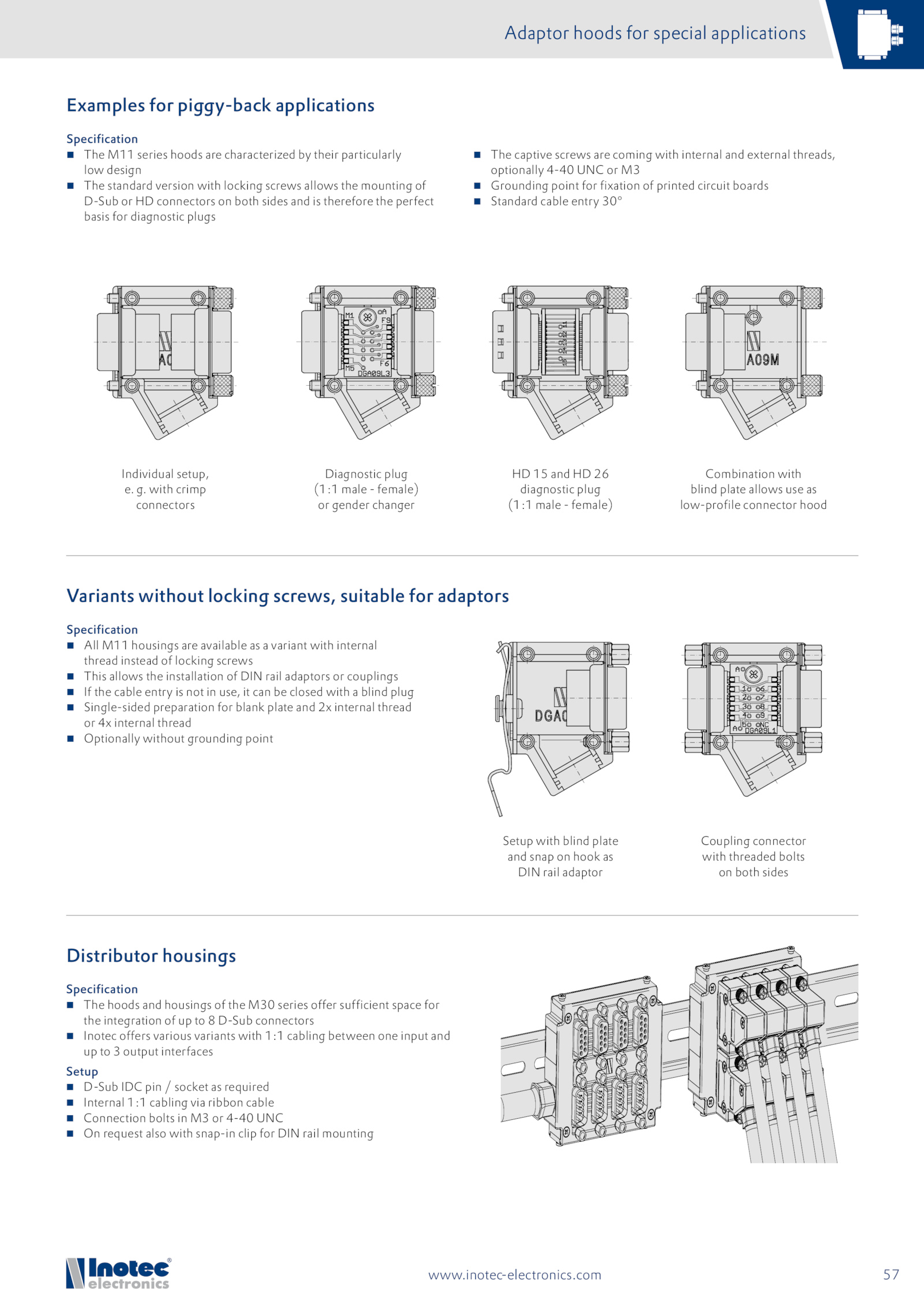

Examples for piggy-back applications
Specification
The M11 series hoods are characterized their particularly
low design
The standard version with locking screws allows the mounting of
D-Sub connectors both sides and therefore the perfect
basis for diagnostic plugs
The captive screws are coming with internal and external threads,
optionally 4-40 UNC M3
Grounding point for fixation printed circuit boards
Standard cable entry 30°
Specification
All M11 housings are available variant with internal
thread instead locking screws
This allows the installation DIN rail adaptors couplings
the cable entry not use, can closed with blind plug
Single-sided preparation for blank plate and internal thread
or internal thread
Optionally without grounding point
Variants without locking screws, suitable for adaptors
Distributor housings
Specification
The hoods and housings the M30 series offer sufficient space for
the integration D-Sub connectors
Inotec offers various variants with 1:1 cabling between one input and
up output interfaces
Setup
D-Sub IDC pin socket required
Internal 1:1 cabling via ribbon cable
Connection bolts 4-40 UNC
request also with snap-in clip for DIN rail mounting
Adaptor hoods for special applications
. with crimp
connectors
57
www.Combination with
blind plate allows use as
low-profile connector hood
HD and 26
diagnostic plug
(1:1 male female)
Setup with blind plate
and snap hook as
DIN rail adaptor
Coupling connector
with threaded bolts
on both sides
Diagnostic plug
(1:1 male female)
or gender changer
Individual setup,
