The universal solution for data bus applications
MSB series
.com

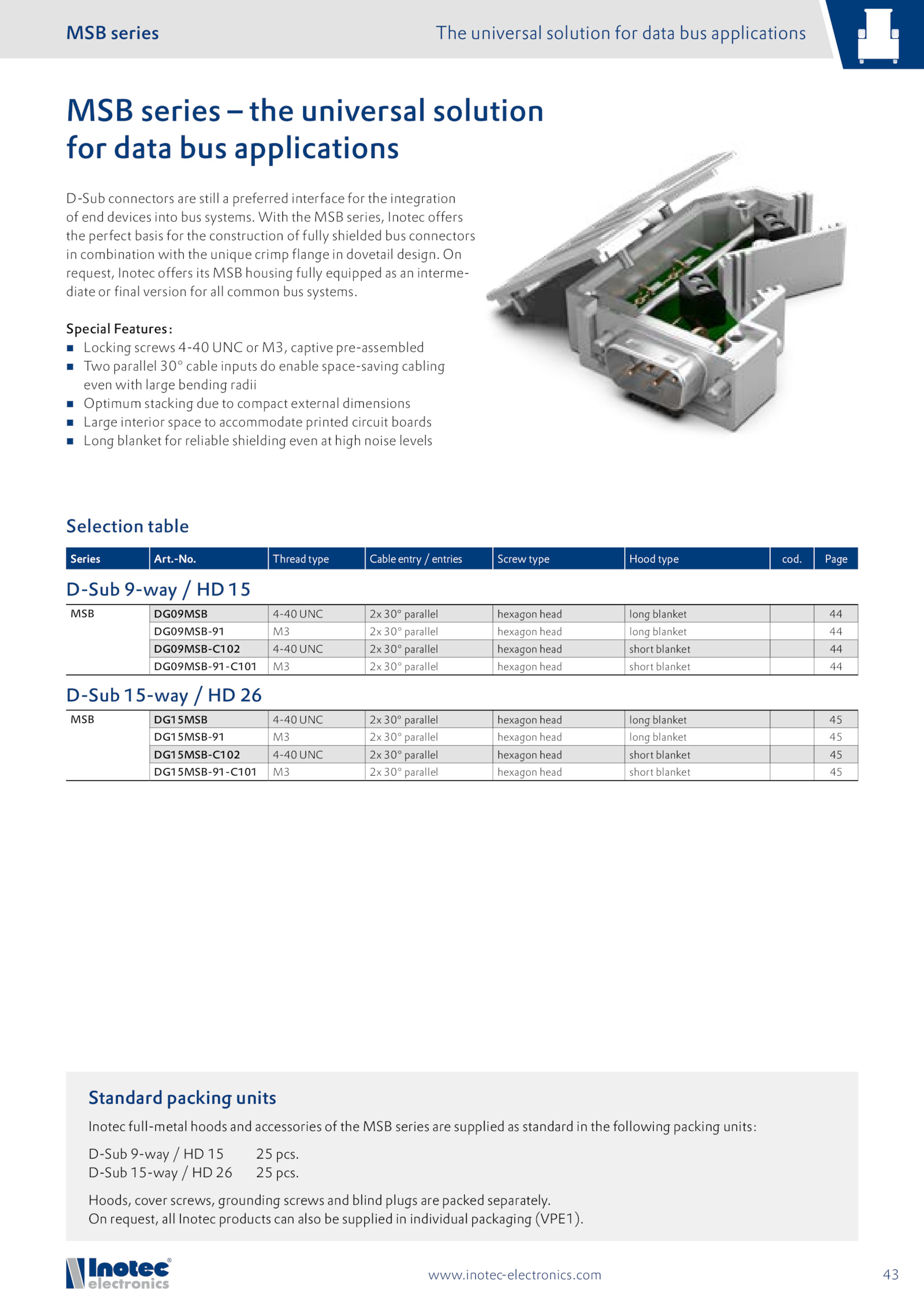

MSB series the universal solution
for data bus applications
D-Sub connectors are still preferred interface for the integration
of end devices into bus systems. Thread type Cable entry entries Screw type Hood type cod. Page
D-Sub 9-way 15
MSB DG09MSB 4-40 UNC 30° parallel hexagon head long blanket 44
DG09MSB-91 30° parallel hexagon head long blanket 44
DG09MSB-C102 4-40 UNC 30° parallel hexagon head short blanket 44
DG09MSB-91-C101 30° parallel hexagon head short blanket 44
D-Sub 15-way 26
MSB DG15MSB 4-40 UNC 30° parallel hexagon head long blanket 45
DG15MSB-91 30° parallel hexagon head long blanket 45
DG15MSB-C102 4-40 UNC 30° parallel hexagon head short blanket 45
DG15MSB-91-C101 30° parallel hexagon head short blanket 45
Standard packing units
Inotec full-metal hoods and accessories the MSB series are supplied standard the following packing units:
D-Sub 9-way pcs. With the MSB series, Inotec offers
the perfect basis for the construction fully shielded bus connectors
in combination with the unique crimp flange dovetail design.
D-Sub 15-way pcs. On
request, Inotec offers its MSB housing fully equipped interme-
diate final version for all common bus systems.-No.
Hoods, cover screws, grounding screws and blind plugs are packed separately.
Special Features:
Locking screws 4-40 UNC M3, captive pre-assembled
Two parallel 30° cable inputs enable space-saving cabling
even with large bending radii
Optimum stacking due compact external dimensions
Large interior space accommodate printed circuit boards
Long blanket for reliable shielding even high noise levels
Selection table
Series Art.43
www.
On request, all Inotec products can also supplied individual packaging (VPE1).inotec-electronics
