The correct processing shielded cables
is crucial criterion for both electrical and
mechanical functionality for any EMI/
RFI shielding connector housings but also
for direct cable in- and feedthrough into
shielded end devices.
Strain and torque relief with high re-
tention forces that remains functional
even under rough handling conditions.
Simple, efficient and cost-effective
processing.
The functional reliability entire ap-
plication finally depends cable-specific
choice the appropriate components
and processing tools.
gap-free RF-tight sealing the
cable entry.
The connection the cable and the cable
shield the housings must meet several
essential requirements:
low-impedance connection
between the cable shield and the
housing, which remains constant
over long periods use, even under
mechanical stress. Special installa-
tion space situations individual cable
designs may however still require the use
of conventional cable clamp technology.
Further strain relief and
cable entry components
cable clamps different clamping
widths for special cabling
cable entry via BNC connector
die-cast zinc components with
Inotec dovetail for low transition
resistance

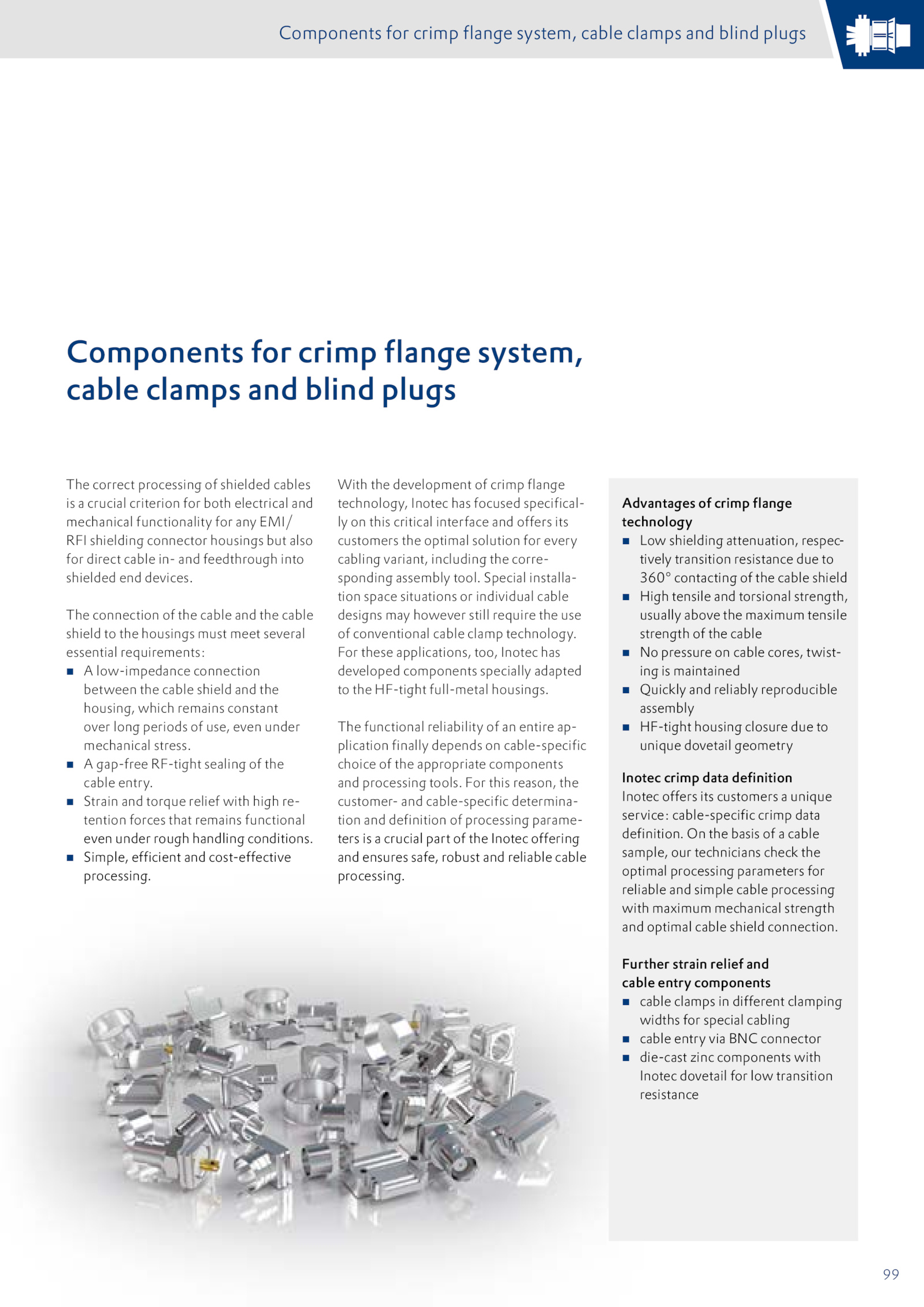

Components for crimp flange system, cable clamps and blind plugs
.
With the development crimp flange
technology, Inotec has focused specifical-
ly this critical interface and offers its
customers the optimal solution for every
cabling variant, including the corre-
sponding assembly tool.
For these applications, too, Inotec has
developed components specially adapted
to the HF-tight full-metal housings. For this reason, the
customer- and cable-specific determina-
tion and definition processing parame-
ters crucial part the Inotec offering
and ensures safe, robust and reliable cable
processing.
Components for crimp flange system,
cable clamps and blind plugs
Advantages crimp flange
technology
Low shielding attenuation, respec-
tively transition resistance due to
360° contacting the cable shield
High tensile and torsional strength,
usually above the maximum tensile
strength the cable
pressure cable cores, twist-
ing maintained
Quickly and reliably reproducible
assembly
HF-tight housing closure due to
unique dovetail geometry
Inotec crimp data definition
Inotec offers its customers unique
service: cable-specific crimp data
definition. the basis cable
sample, our technicians check the
optimal processing parameters for
reliable and simple cable processing
with maximum mechanical strength
and optimal cable shield connection
