ABB Softstartéry - opravy, náhradní díly (EN)

| Kategorie: Leták / Datasheet  | Tento dokument chci!

Vydal: ABB s.r.o, ELSYNN Autor: ABB ELSYnn

Strana 72 z 79







Poznámky redaktora

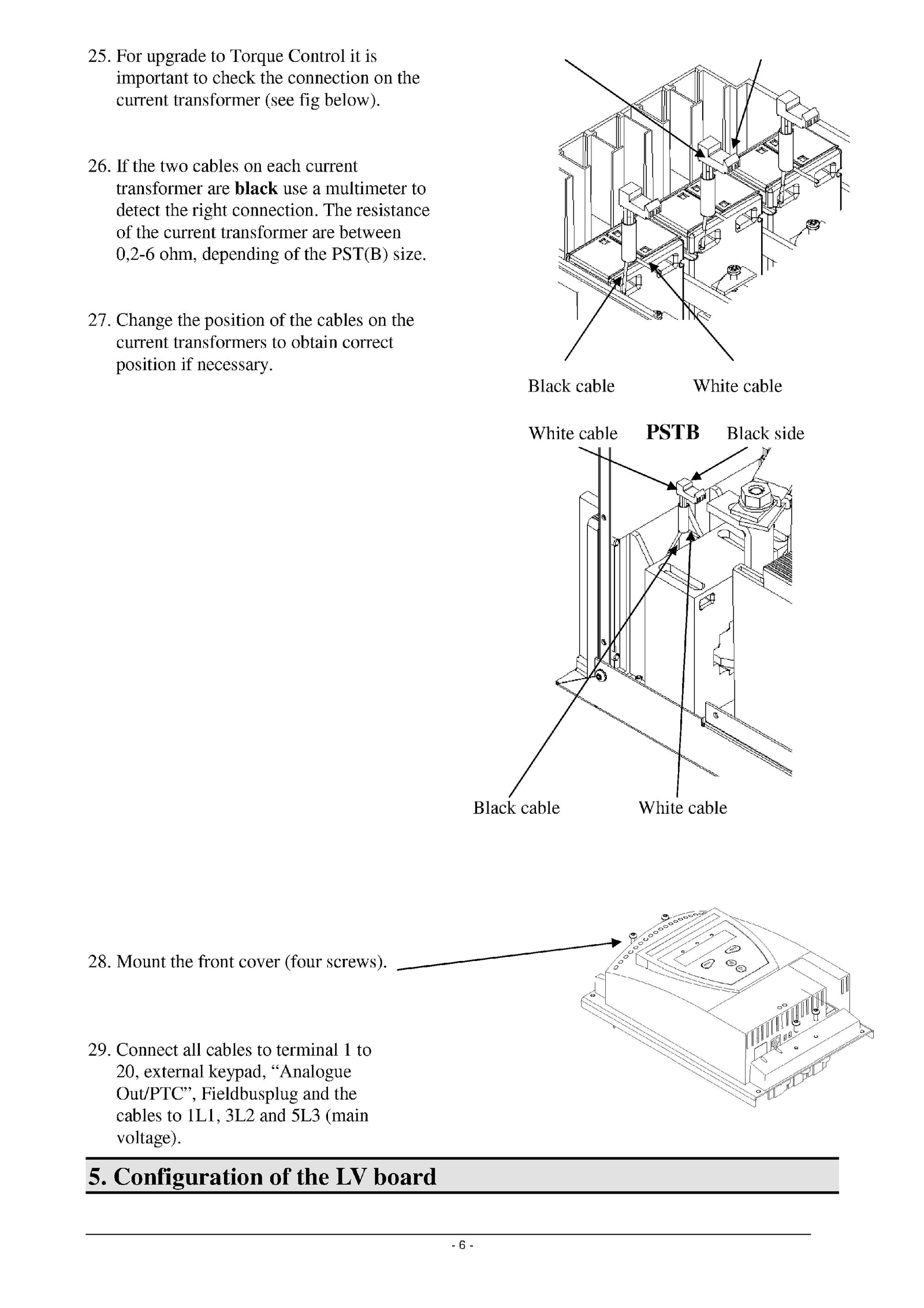

26. 29.25. Connect all cables terminal to 20, external keypad, “Analogue Out/PTC”, Fieldbusplug and the cables 1L1, 3L2 and 5L3 (main voltage). Change the position the cables the current transformers obtain correct position necessary. The resistance of the current transformer are between 0,2-6 ohm, depending the PST(B) size. For upgrade Torque Control is important check the connection the current transformer (see fig below). the two cables each current transformer are black use multimeter to detect the right connection. 27. 5. Black cable White cable White cable PSTB Black side Black cable White cable 28. Configuration ofthe LVboard -. Mount the front cover (four screws)
