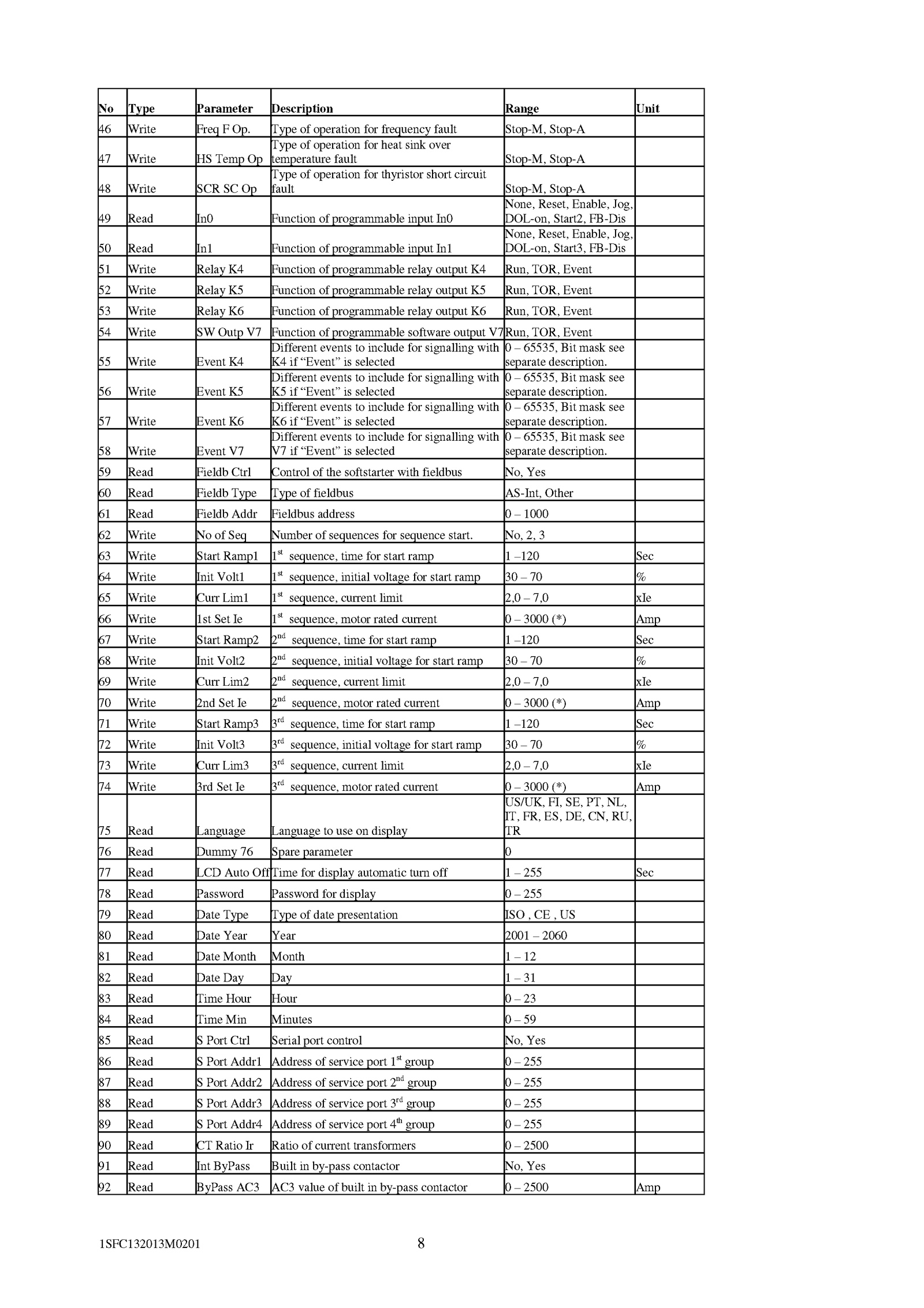

Type operation for frequency fault Stop-M, Stop-A
47 Write Temp Op
Type operation for heat sink over
temperature fault Stop-M, Stop-A
48 Write SCR Op
Type operation for thyristor short circuit
fault Stop-M, Stop-A
49 Read In0 Function programmable input In0
None, Reset, Enable, Jog,
DOL-on, Start2, FB-Dis
50 Read Inl Function programmable input Inl
None, Reset, Enable, Jog,
DOL-on, Start3, FB-Dis
51 Write Relay Function programmable relay output Run, TOR, Event
52 Write Relay Function programmable relay output Run, TOR, Event
53 Write Relay Function programmable relay output Run, TOR, Event
54 Write Outp Function programmable software output Run, TOR, Event
55 Write Event K4
Different events include for signalling with
K4 “Event” selected
0 65535, Bit mask see
separate description.
57 Write Event K6
Different events include for signalling with
K6 “Event” selected
0 65535, Bit mask see
separate description.
56 Write Event K5
Different events include for signalling with
K5 “Event” selected
0 65535, Bit mask see
separate description.
58 Write Event V7
Different events include for signalling with
V7 “Event” selected
0 65535, Bit mask see
separate description. No, 3
63 Write Start Rampl 1st sequence, time for start ramp -120 Sec
64 Write Init Voltl 1st sequence, initial voltage for start ramp %
65 Write Curr Liml 1st sequence, current limit 2,0 7,0 xle
66 Write 1st Set 1st sequence, motor rated current 3000 (*) Amp
67 Write Start Ramp2 2nd sequence, time for start ramp -120 Sec
68 Write Init Volt2 2nd sequence, initial voltage for start ramp %
69 Write Curr Lim2 2nd sequence, current limit 2,0 7,0 xle
70 Write 2nd Set 2nd sequence, motor rated current 3000 (*) Amp
71 Write Start Ramp3 3rd sequence, time for start ramp -120 Sec
72 Write Init Volt3 3rd sequence, initial voltage for start ramp %
73 Write Curr Lim3 3rd sequence, current limit 2,0 7,0 xle
74 Write 3rd SetIe 3rd sequence, motor rated current 3000 (*) Amp
75 Read Language Language use display
US/UK, FI, SE, PT, NL,
IT, FR, ES, DE, CN, RU,
TR
76 Read Dummy Spare parameter 0
77 Read LCD Auto Off Time for display automatic turn off 255 Sec
78 Read Password Password for display 255
79 Read Date Type Type date presentation ISO US
80 Read Date Year Year 2001 2060
81 Read Date Month Month 12
82 Read Date Day Day 31
83 Read Time Hour Hour 23
84 Read Time Min Minutes 59
85 Read Port Ctrl Serial port control No, Yes
86 Read Port Addrl Address service port 1st group 255
87 Read Port Addr2 Address service port 2ndgroup 255
88 Read Port Addr3 Address service port 3rd group 255
89 Read Port Addr4 Address service port 4thgroup 255
90 Read Ratio Ratio current transformers 2500
91 Read Int ByPass Built by-pass contactor No, Yes
92 Read ByPass AC3 AC3 value built by-pass contactor 2500 Amp
1SFC132013M0201.
59 Read Fieldb Ctrl Control the softstarter with fieldbus No, Yes
60 Read Fieldb Type Type fieldbus AS-Int, Other
61 Read Fieldb Addr Fieldbus address 1000
62 Write Seq Number sequences for sequence start.Type Parameter Description Range Unit
46 Write Freq Op
