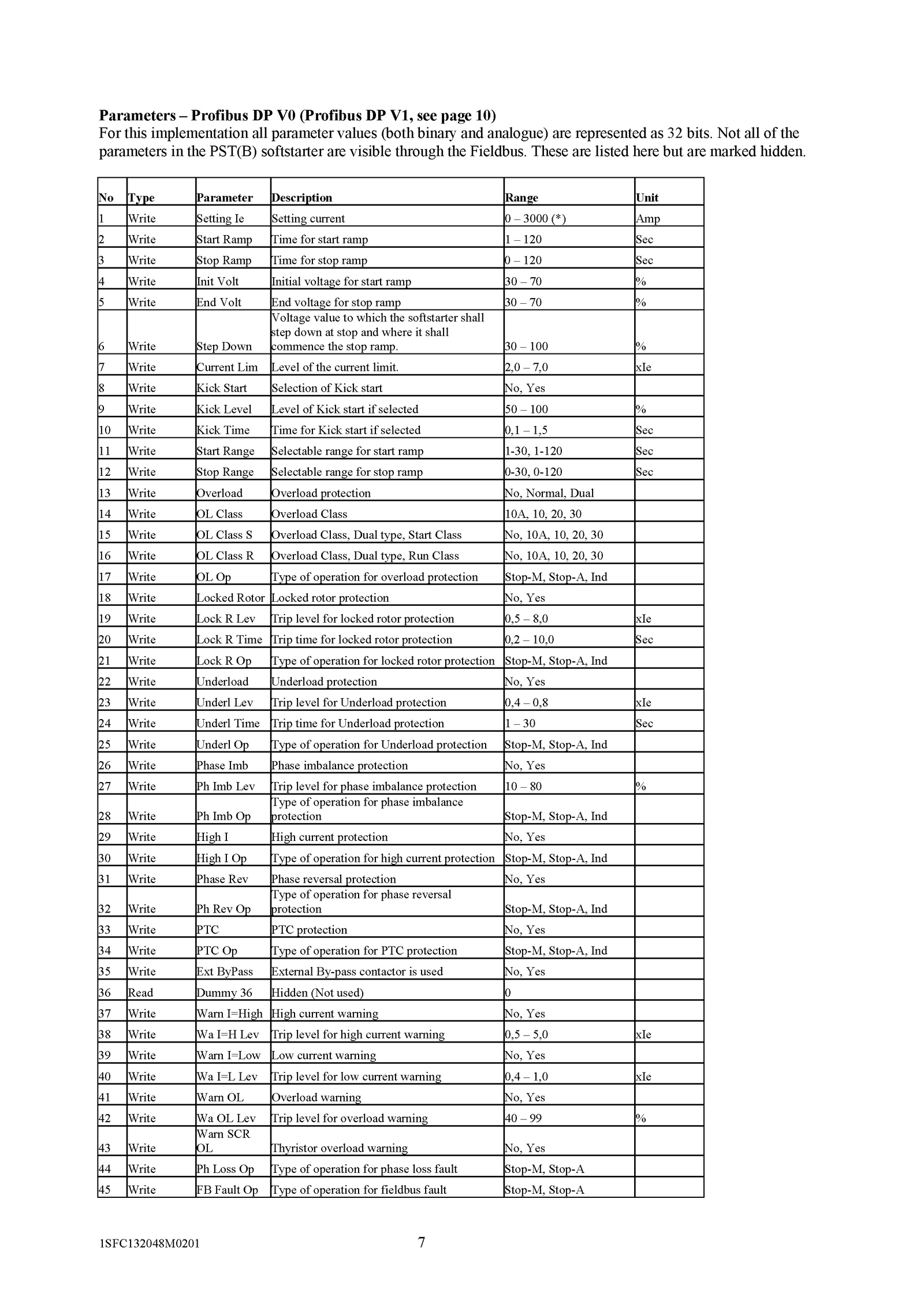

These are listed here but are marked hidden.Parameters Profibus (Profibus V1, see page 10)
For this implementation all parameter values (both binary and analogue) are represented bits.
No Type Parameter Description Range Unit
1 Write Setting Setting current 3000 (*) Amp
2 Write Start Ramp Time for start ramp 120 Sec
3 Write Stop Ramp Time for stop ramp 120 Sec
4 Write Init Volt Initial voltage for start ramp %
5 Write End Volt End voltage for stop ramp %
6 Write Step Down
Voltage value which the softstarter shall
step down stop and where shall
commence the stop ramp. Not all the
parameters the PST(B) softstarter are visible through the Fieldbus. 2,0 7,0 xIe
8 Write Kick Start Selection Kick start No, Yes
9 Write Kick Level Level Kick start selected 100 %
10 Write Kick Time Time for Kick start selected 0,1 1,5 Sec
11 Write Start Range Selectable range for start ramp 1-30, 1-120 Sec
12 Write Stop Range Selectable range for stop ramp 0-30, 0-120 Sec
13 Write Overload Overload protection No, Normal, Dual
14 Write Class Overload Class 10A, 10, 20, 30
15 Write Class Overload Class, Dual type, Start Class No, 10A, 10, 20, 30
16 Write Class Overload Class, Dual type, Run Class No, 10A, 10, 20, 30
17 Write Type operation for overload protection Stop-M, Stop-A, Ind
18 Write Locked Rotor Locked rotor protection No, Yes
19 Write Lock Lev Trip level for locked rotor protection 0,5 8,0 xIe
20 Write Lock Time Trip time for locked rotor protection 0,2 10,0 Sec
21 Write Lock Type operation for locked rotor protection Stop-M, Stop-A, Ind
22 Write Underload Underload protection No, Yes
23 Write Underl Lev Trip level for Underload protection 0,4 0,8 xIe
24 Write Underl Time Trip time for Underload protection Sec
25 Write Underl Type operation for Underload protection Stop-M, Stop-A, Ind
26 Write Phase Imb Phase imbalance protection No, Yes
27 Write Imb Lev Trip level for phase imbalance protection %
28 Write Imb Op
Type operation for phase imbalance
protection Stop-M, Stop-A, Ind
29 Write High High current protection No, Yes
30 Write High Type operation for high current protection Stop-M, Stop-A, Ind
31 Write Phase Rev Phase reversal protection No, Yes
32 Write Rev Op
Type operation for phase reversal
protection Stop-M, Stop-A, Ind
33 Write PTC PTC protection No, Yes
34 Write PTC Type operation for PTC protection Stop-M, Stop-A, Ind
35 Write Ext ByPass External By-pass contactor used No, Yes
36 Read Dummy Hidden (Not used) 0
37 Write Warn I=High High current warning No, Yes
38 Write I=H Lev Trip level for high current warning
O,
5
1
«O
o"
xIe
39 Write Warn I=Low Low current warning No, Yes
40 Write I=L Lev Trip level for low current warning 0,4 1,0 xIe
41 Write Warn Overload warning No, Yes
42 Write Lev Trip level for overload warning %
43 Write
Warn SCR
OL Thyristor overload warning No, Yes
44 Write Loss Type operation for phase loss fault Stop-M, Stop-A
45 Write Fault Type operation for fieldbus fault Stop-M, Stop-A
1SFC132048M0201. 100 %
7 Write Current Lim Level the current limit
