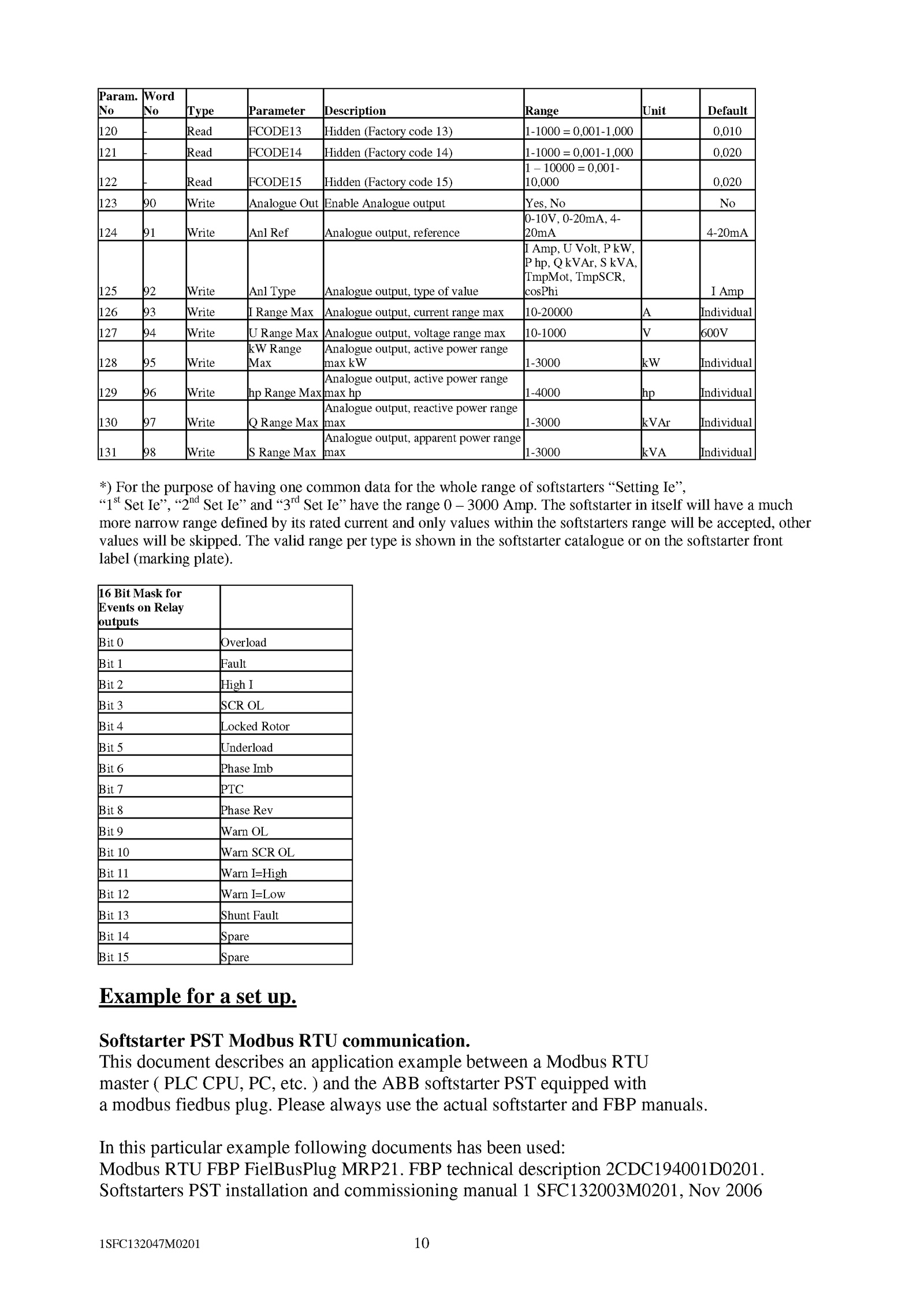

Param. No Word No Type Parameter Description Range Unit Default 120 Read FCODE13 Hidden (Factory code 13) 1-1000 0,001-1,000 0,010 121 Read FCODE14 Hidden (Factory code 14) 1-1000 0,001-1,000 0,020 122 Read FCODE15 Hidden (Factory code 15) 1 10000 0,001­ 10,000 0,020 123 Write Analogue Out Enable Analogue output Yes, No 124 Write Anl Ref Analogue output, reference 0-10V, 0-20mA, 4- 20mA 4-20mA 125 Write Anl Type Analogue output, type value I Amp, Volt, kW, P hp, kVAr, kVA, TmpMot, TmpSCR, cosPhi Amp 126 Write Range Max Analogue output, current range max 10-20000 Individual 127 Write Range Max Analogue output, voltage range max 10-1000 600V 128 Write kW Range Max Analogue output, active power range max 1-3000 Individual 129 Write Range Max Analogue output, active power range max 1-4000 Individual 130 Write Range Max Analogue output, reactive power range max 1-3000 kVAr Individual 131 Write Range Max Analogue output, apparent power range max 1-3000 kVA Individual *) For the purpose having one common data for the whole range softstarters “Setting Ie”, “1st Set Ie”, “2ndSet Ie” and “3rd Set Ie” have the range 3000 Amp. The valid range per type shown the softstarter catalogue the softstarter front label (marking plate). This document describes application example between Modbus RTU master PLC CPU, PC, etc. and the ABB softstarter PST equipped with a modbus fiedbus plug. The softstarter itself will have much more narrow range defined its rated current and only values within the softstarters range will accepted, other values will skipped. 16 Bit Mask for Events Relay outputs Bit Overload Bit Fault Bit High I Bit SCR OL Bit Locked Rotor Bit Underload Bit Phase Imb Bit PTC Bit Phase Rev Bit Warn OL Bit Warn SCR OL Bit Warn I=High Bit Warn I=Low Bit Shunt Fault Bit Spare Bit Spare Example for set up. Softstarters PST installation and commissioning manual SfC132003M0201, Nov 2006 1SFC132047M0201 10 . FBP technical description 2CDC194001D0201. In this particular example following documents has been used: Modbus RTU FBP FielBusPlug MRP21. Please always use the actual softstarter and FBP manuals. Softstarter PST Modbus RTU communication
