The softstarter itself will have much
more narrow range defined its rated current and only values within the softstarters range will accepted, other

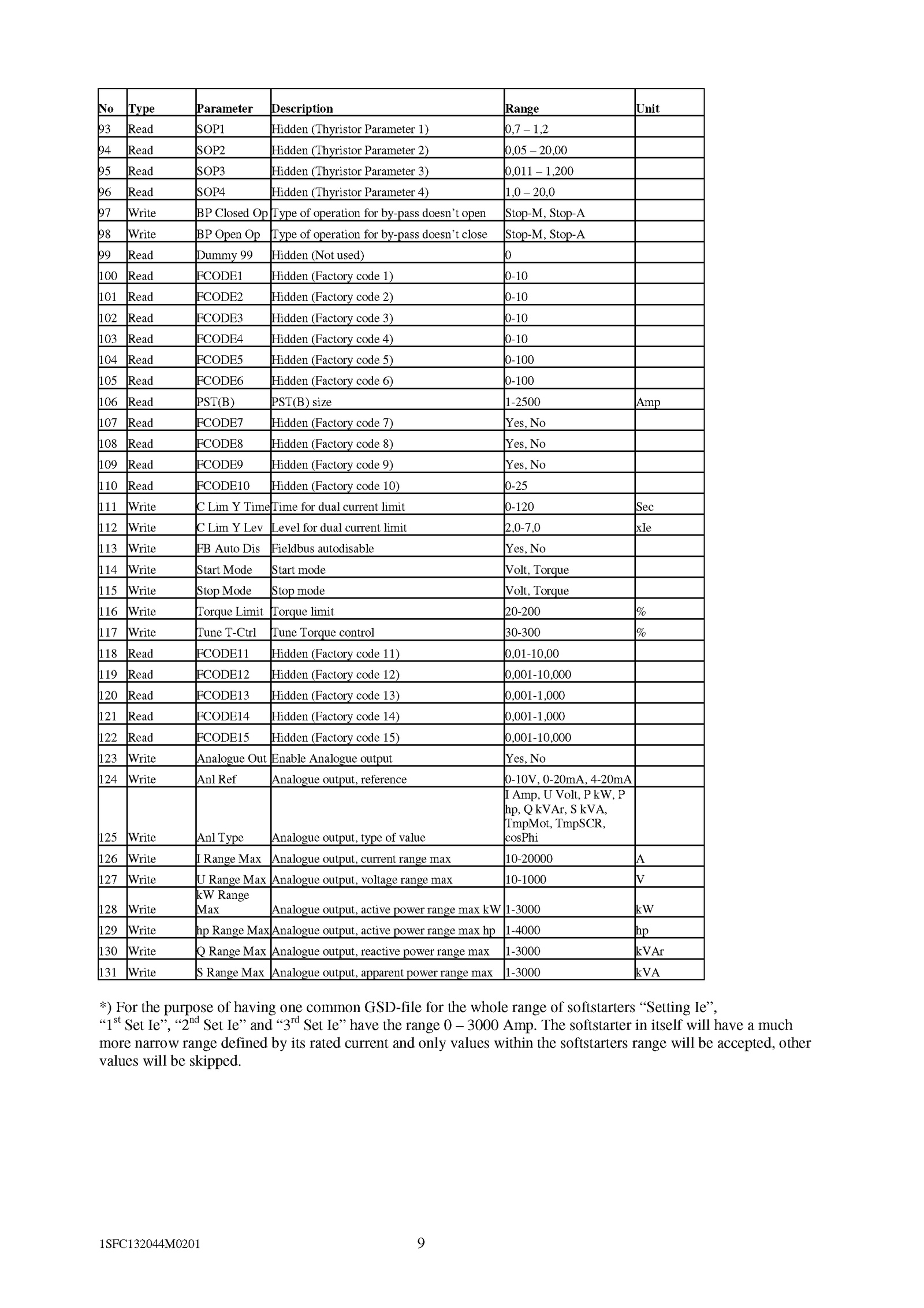

values will skipped.Type Parameter Description Range Unit
93 Read SOP1 Hidden (Thyristor Parameter 0,7 1,2
94 Read SOP2 Hidden (Thyristor Parameter 0,05 20,00
95 Read SOP3 Hidden (Thyristor Parameter 0,011 1,200
96 Read SOP4 Hidden (Thyristor Parameter 1,0 20,0
97 Write Closed Type operation for by-pass doesn’t open Stop-M, Stop-A
98 Write Open Type operation for by-pass doesn’t close Stop-M, Stop-A
99 Read Dummy Hidden (Not used) 0
100 Read FCODE1 Hidden (Factory code 0-10
101 Read FCODE2 Hidden (Factory code 0-10
102 Read FCODE3 Hidden (Factory code 0-10
103 Read FCODE4 Hidden (Factory code 0-10
104 Read FCODE5 Hidden (Factory code 0-100
105 Read FCODE6 Hidden (Factory code 0-100
106 Read PST(B) PST(B) size 1-2500 Amp
107 Read FCODE7 Hidden (Factory code Yes, No
108 Read FCODE8 Hidden (Factory code Yes, No
109 Read FCODE9 Hidden (Factory code Yes, No
110 Read FCODE10 Hidden (Factory code 10) 0-25
111 Write Lim Time Time for dual current limit 0-120 Sec
112 Write Lim Lev Level for dual current limit 2,0-7,0 xle
113 Write Auto Dis Fieldbus autodisable Yes, No
114 Write Start Mode Start mode Volt, Torque
115 Write Stop Mode Stop mode Volt, Torque
116 Write Torque Limit Torque limit 20-200 %
117 Write Tune T-Ctrl Tune Torque control 30-300 %
118 Read FCODE11 Hidden (Factory code 11) 0,01-10,00
119 Read FCODE12 Hidden (Factory code 12) 0,001-10,000
120 Read FCODE13 Hidden (Factory code 13) 0,001-1,000
121 Read FCODE14 Hidden (Factory code 14) 0,001-1,000
122 Read FCODE15 Hidden (Factory code 15) 0,001-10,000
123 Write Analogue Out Enable Analogue output Yes, No
124 Write Anl Ref Analogue output, reference 0-10V, 0-20mA, 4-20mA
125 Write Anl Type Analogue output, type value
[ Amp, Volt, kW, P
hp, kVAr, kVA,
TmpMot, TmpSCR,
cosPhi
126 Write Range Max Analogue output, current range max 10-20000 A
127 Write Range Max Analogue output, voltage range max 10-1000 V
128 Write
kW Range
Max Analogue output, active power range max 1-3000 kW
129 Write Range Max Analogue output, active power range max 1-4000 hp
130 Write Range Max Analogue output, reactive power range max 1-3000 kVAr
131 Write Range Max Analogue output, apparent power range max 1-3000 kVA
*) For the purpose having one common GSD-file for the whole range softstarters “Setting Ie”,
“1st Set Ie”, “2ndSet Ie” and “3rd Set Ie” have the range 3000 Amp.
