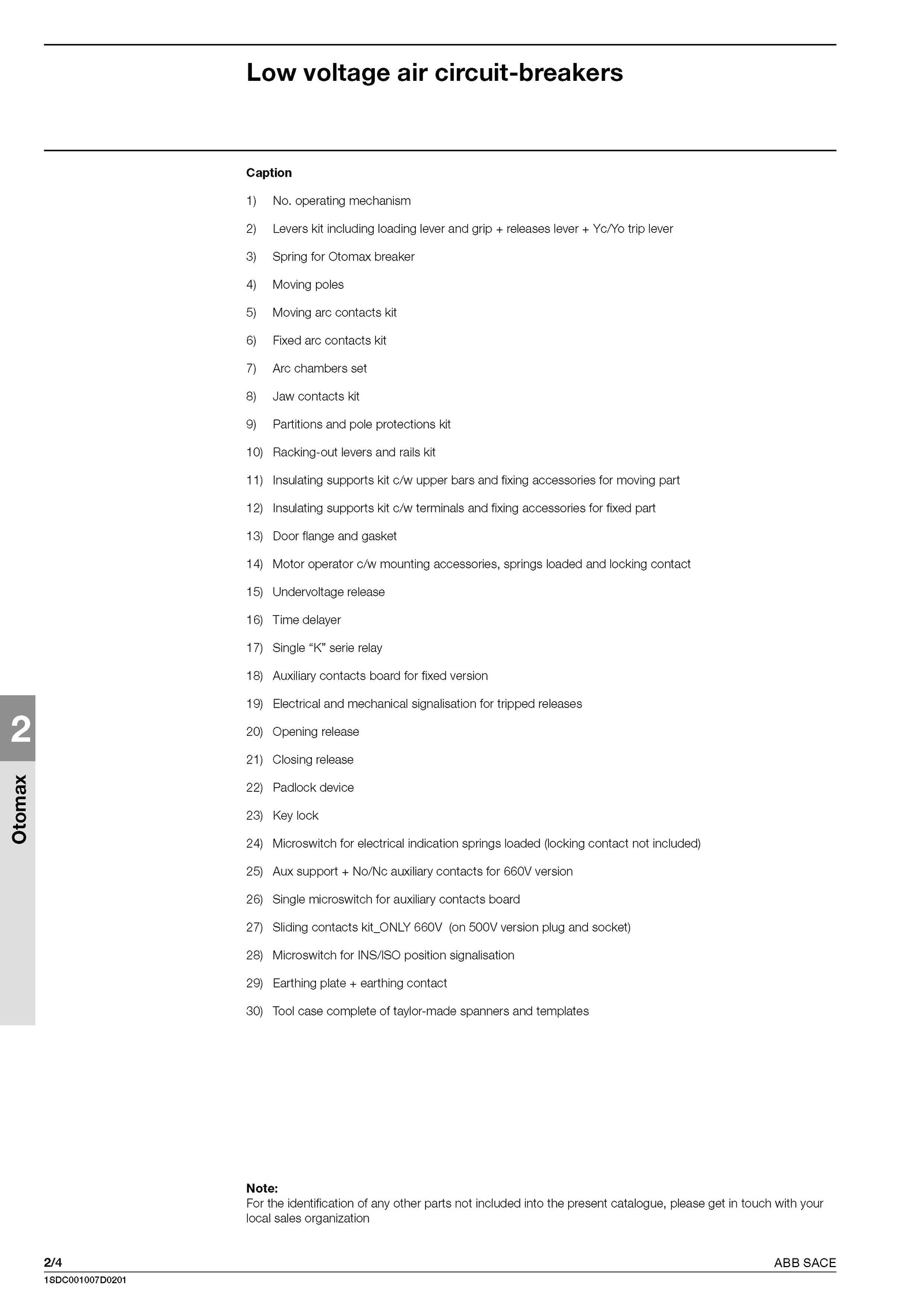

operating mechanism 2) Levers kit including loading lever and grip releases lever Yc/Yo trip lever 3) Spring for Otomax breaker 4) Moving poles 5) Moving arc contacts kit 6) Fixed arc contacts kit 7) Arc chambers set 8) Jaw contacts kit 9) Partitions and pole protections kit 10) Racking-out levers and rails kit 11) Insulating supports kit c/w upper bars and fixing accessories for moving part 12) Insulating supports kit c/w terminals and fixing accessories for fixed part 13) Door flange and gasket 14) Motor operator c/w mounting accessories, springs loaded and locking contact 15) Undervoltage release 16) Time delayer 17) Single “K” serie relay 18) Auxiliary contacts board for fixed version 19) Electrical and mechanical signalisation for tripped releases 20) Opening release 21) Closing release 22) Padlock device 23) Key lock 24) Microswitch for electrical indication springs loaded (locking contact not included) 25) Aux support No/Nc auxiliary contacts for 660V version 26) Single microswitch for auxiliary contacts board 27) Sliding contacts kit_ONLY 660V (on 500V version plug and socket) 28) Microswitch for INS/ISO position signalisation 29) Earthing plate earthing contact 30) Tool case complete taylor-made spanners and templates Note: For the identification any other parts not included into the present catalogue, please get touch with your local sales organization 2/4 ABB SACE 1SDC001007D0201 .2 Otomax Low voltage air circuit-breakers Caption 1) No
