Low voltage moulded-case circuit-breakers
M 0
C tio n

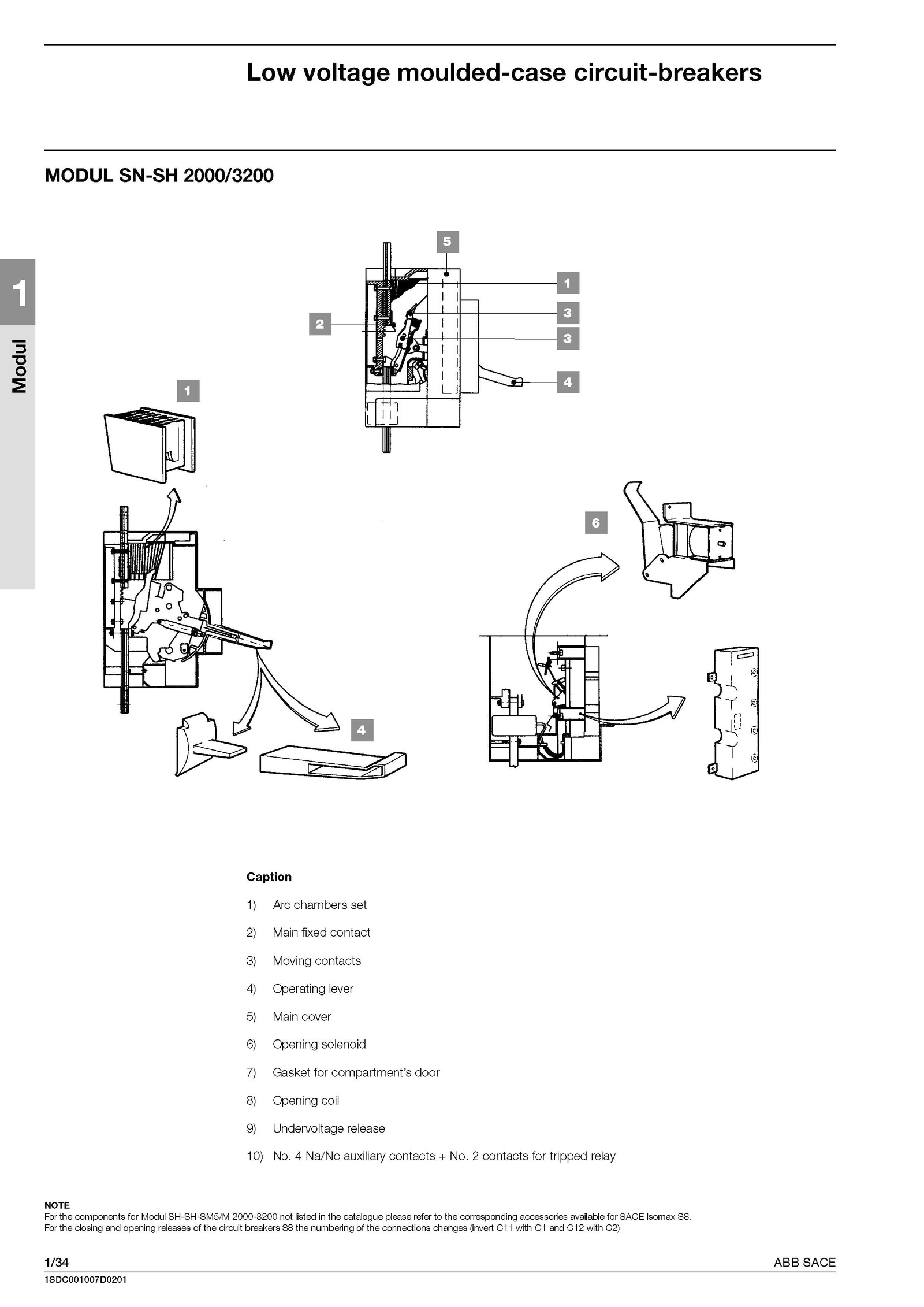

1) Arc chambers set
2) Main fixed contact
3) Moving contacts
4) Operating lever
5) Main cover
6) Opening solenoid
7) Gasket for compartment's door
8) Opening coil
9) Undervoltage release
10) No.
For the closing and opening releases the circuit breakers the numbering the connections changes (invert C11 with and C12 with C2)
1/34
1SDC001007D0201
ABB SACE
. contacts for tripped relay
NOTE
For the components for Modul SH-SH-SM5/M 2000-3200 not listed the catalogue please refer the corresponding accessories available for SACE Isomax S8. Na/Nc auxiliary contacts No
