For Novomax and Megamax the retrofitting kit are fitted into the old breakers' fixed part for prompt
insertion. Kit available only assembled the new circuit-breaker.Retrofitting kits

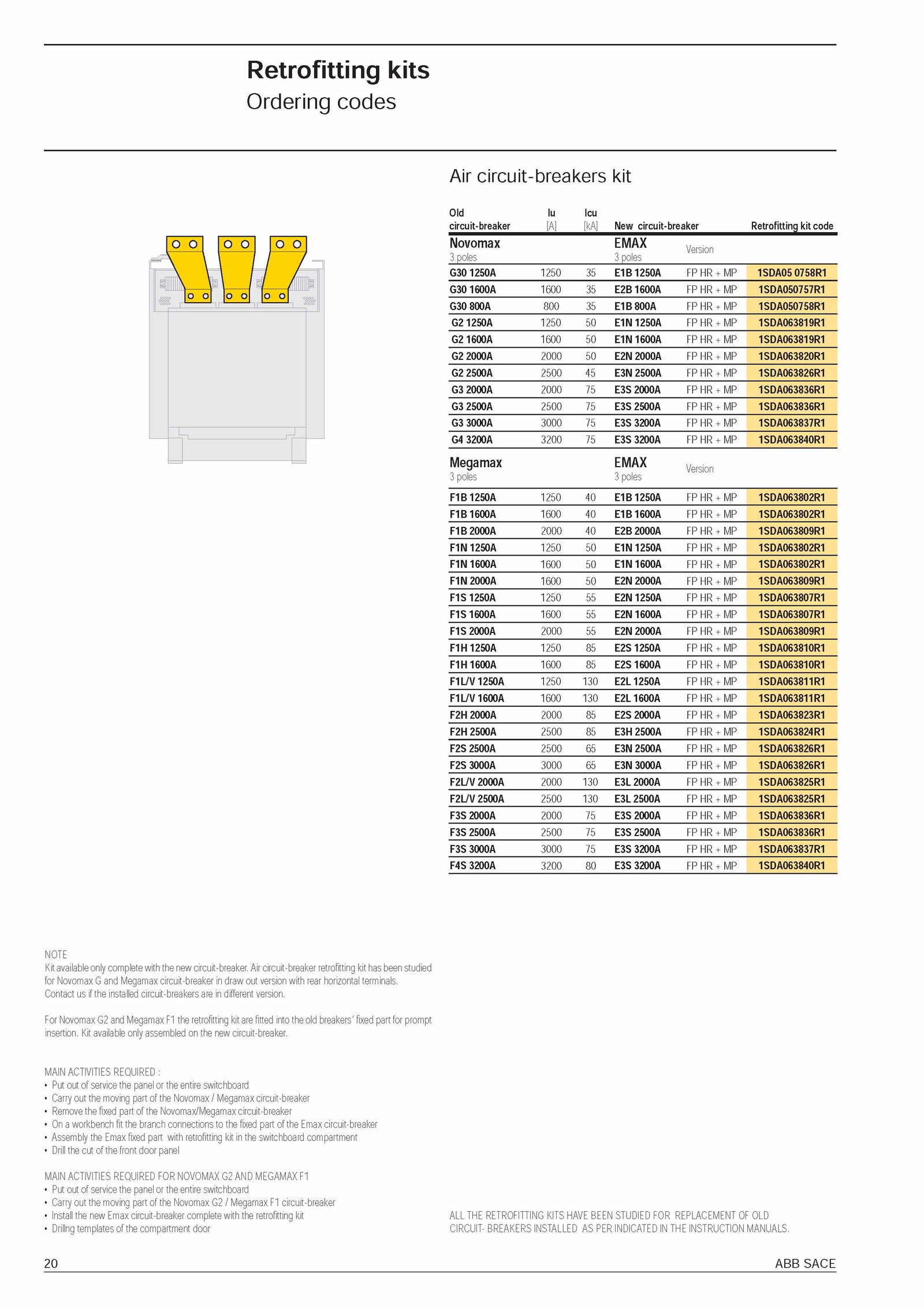

Ordering codes
Air circuit-breakers kit
Old Icu
circuit-breaker [A] [kA] New circuit-breaker Retrofitting kit code
Novomax
3 poles
EMAX
3 poles
Versior
G30 1250A 1250 E1B1250A 1SDA05 0758R1
G 301600A 1600 E2B1600A 1SDA050757R1
G30 800A 800 E1B 800A 1SDA050758R1
G2 1250A 1250 E1N1250A 1SDA063819R1
G2 1600A 1600 E1N1600A 1SDA063819R1
G2 2000A 2000 E2N 2000A 1SDA063820R1
G2 2500A 2500 E3N 2500A 1SDA063826R1
G3 2000A 2000 E3S 2000A 1SDA063836R1
G3 2500A 2500 E3S 2500A 1SDA063836R1
G3 3000A 3000 E3S 3200A 1SDA063837R1
G4 3200A 3200 E3S 3200A 1SDA063840R1
Megamax
3 poles
EMAX
3 poles
Versior
F1B1250A 1250 E1B1250A 1SDA063802R1
F1B 1600A 1600 E1B1600A 1SDA063802R1
F1B 2000A 2000 E2B 2000A 1SDA063809R1
F1N 1250A 1250 E1N1250A 1SDA063802R1
F1N 1600A 1600 E1N1600A 1SDA063802R1
F1N 2000A 1600 E2N 2000A 1SDA063809R1
F1S1250A 1250 E2N1250A 1SDA063807R1
F1S 1600A 1600 E2N 1600A 1SDA063807R1
F1S 2000A 2000 E2N 2000A 1SDA063809R1
F1H 1250A 1250 E2S 1250A 1SDA063810R1
F1H 1600A 1600 E2S 1600A 1SDA063810R1
F1L/V1250A 1250 130 E2L1250A 1SDA063811R1
F1L/V 1600A 1600 130 E2L1600A 1SDA063811R1
F2H 2000A 2000 E2S 2000A 1SDA063823R1
F2H 2500A 2500 E3H 2500A 1SDA063824R1
F2S 2500A 2500 E3N 2500A 1SDA063826R1
F2S 3000A 3000 E3N 3000A 1SDA063826R1
F2L/V 2000A 2000 130 E3L 2000A 1SDA063825R1
F2L/V 2500A 2500 130 E3L 2500A 1SDA063825R1
F3S 2000A 2000 E3S 2000A 1SDA063836R1
F3S 2500A 2500 E3S 2500A 1SDA063836R1
F3S 3000A 3000 E3S 3200A 1SDA063837R1
F4S 3200A 3200 E3S 3200A 1SDA063840R1
NOTE
Kit available only complete with the new circuit-breaker. Air circuit-breaker retrofitting kit has been studied
for Novomax and Megamax circuit-breaker draw out version with rear horizontal terminals.
Contact the installed circuit-breakers are different version.
MAIN ACTIVITIES REQUIRED :
• Put out service the panel the entire switchboarc
• Carry out the moving part the Novomax Megamax circuit-breaker
• Remove the fixed part the Novomax/Megamax circuit-breaker
• workbench fit the branch connections the fixed part the Emax circuit-breaker
• Assembly the Emax fixed part with retrofitting kit the switchboard compartment
• Drill the cut the front door panel
MAIN ACTIVITIES REQUIRED FOR NOVOMAX AND MEGAMAX F'
• Put out service the panel the entire switchboard
• Carry out the moving part the Novomax Megamax circuit-breaker
• Install the new Emax circuit-breaker complete with the retrofitting kit ALL THE RETROFITTING KITS HAVE BEEN STUDIED FOR REPLACEMENT OLD
• Drillng templates the compartment door CIRCUIT- BREAKERS INSTALLED PER INDICATED THE INSTRUCTION MANUALS
