• Dual jumper slots allow four different potentials ac-
commodated along side each other.
Standard jumpers offered by
WAGO
Custom push-in type jumper
bars are created breaking
and removing jumper con-
tacts (2000, 2001, 2002,
2004 Series).
• Make sure that only one contact lug inserted per con-
tact.com
Rail-Mount Terminal Blocks, TOPJOB® S
Rail-Mount Terminal Blocks, TOPJOB® S

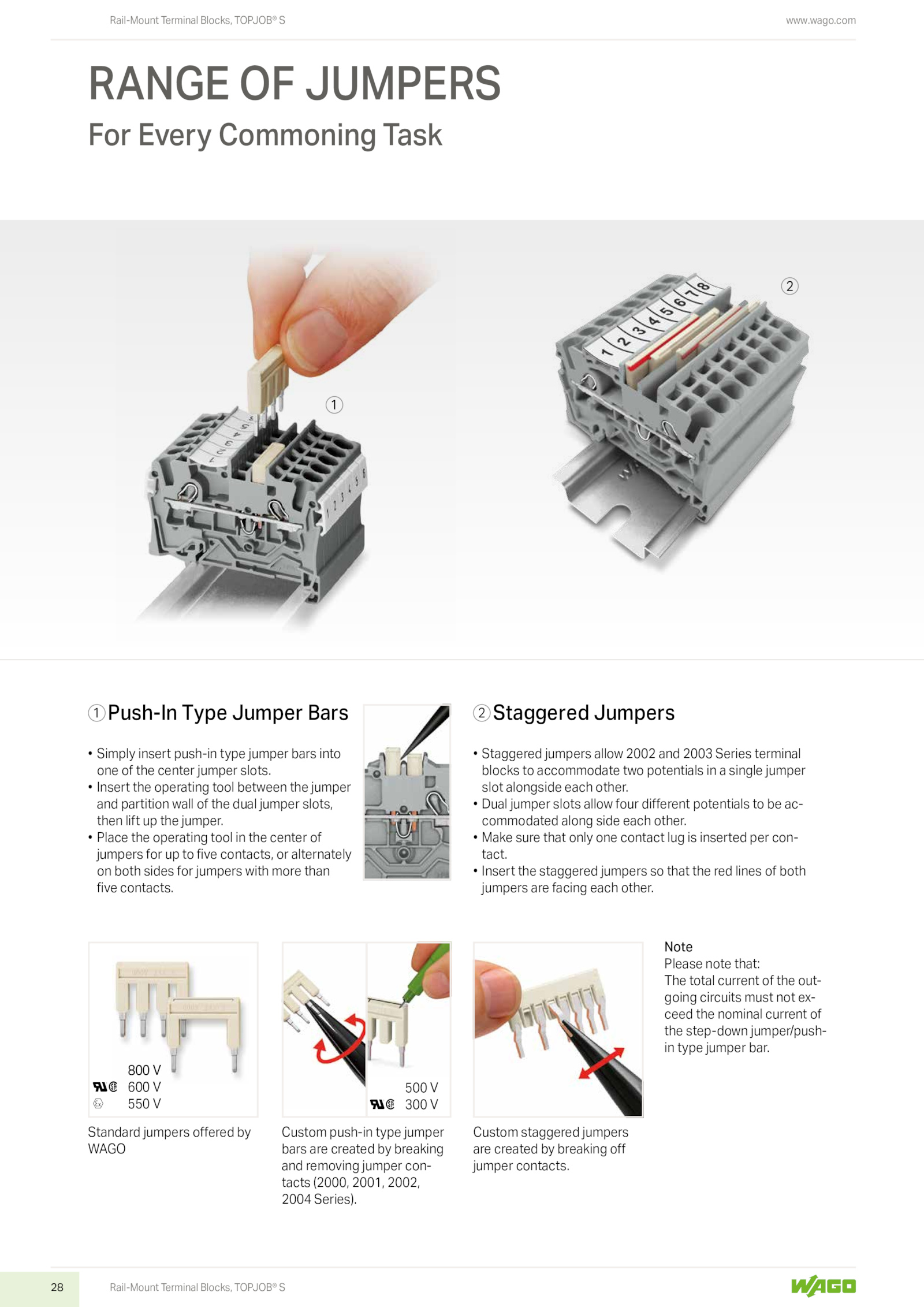

RANGE JUMPERS
For Every Commoning Task
Push-In Type Jumper Bars Staggered Jumpers
• Simply insert push-in type jumper bars into
one the center jumper slots.
.wago.
Custom staggered jumpers
are created breaking off
jumper contacts.
• Place the operating tool the center of
jumpers for five contacts, alternately
on both sides for jumpers with more than
five contacts.
Note
Please note that:
The total current the out-
going circuits must not ex-
ceed the nominal current of
the step-down jumper/push-
in type jumper bar.
• Staggered jumpers allow 2002 and 2003 Series terminal
blocks accommodate two potentials single jumper
slot alongside each other.
• Insert the staggered jumpers that the red lines both
jumpers are facing each other.
• Insert the operating tool between the jumper
and partition wall the dual jumper slots,
then lift the jumper.28
500 V
U2 300 V
800 V
U2 600 V
4 550 V
2
2
1
1
