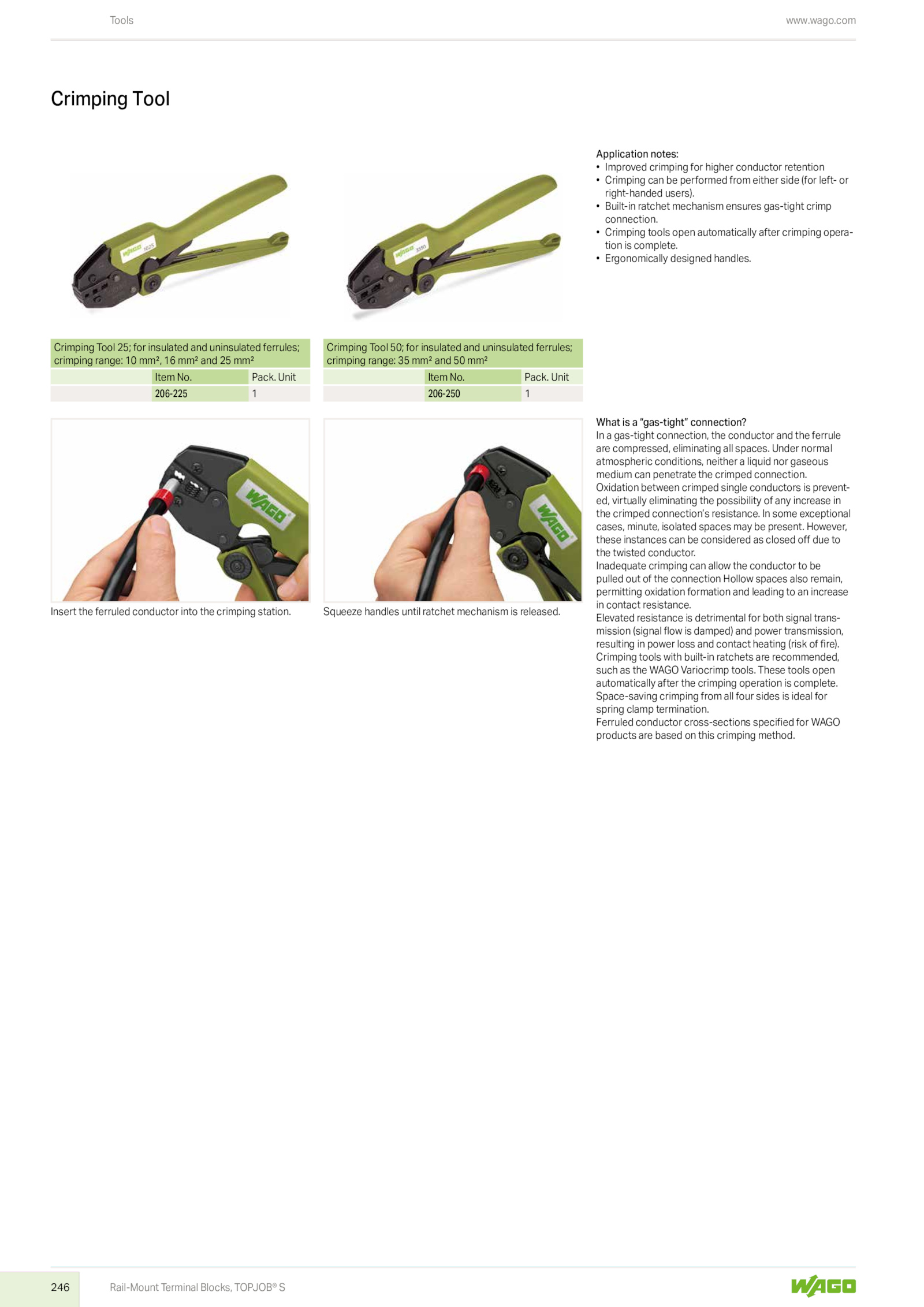

Rail-Mount Terminal Blocks, TOPJOB® S
Tools
Crimping Tool 25; for insulated and uninsulated ferrules;
crimping range: mm², mm² and mm²
Crimping Tool 50; for insulated and uninsulated ferrules;
crimping range: mm² and mm²
Item No.
• Crimping tools open automatically after crimping opera-
tion complete.
Oxidation between crimped single conductors prevent-
ed, virtually eliminating the possibility any increase in
the crimped connection’s resistance. Under normal
atmospheric conditions, neither liquid nor gaseous
medium can penetrate the crimped connection.
Elevated resistance detrimental for both signal trans-
mission (signal flow damped) and power transmission,
resulting power loss and contact heating (risk fire). Pack.246
www.
• Built-in ratchet mechanism ensures gas-tight crimp
connection.
Ferruled conductor cross-sections specified for WAGO
products are based this crimping method. However,
these instances can considered closed off due to
the twisted conductor.
.
Space-saving crimping from all four sides ideal for
spring clamp termination.
What “gas-tight” connection?
In gas-tight connection, the conductor and the ferrule
are compressed, eliminating all spaces. some exceptional
cases, minute, isolated spaces may present. Unit
206-225 206-250 1
Crimping Tool
Insert the ferruled conductor into the crimping station. Pack.
Application notes:
• Improved crimping for higher conductor retention
• Crimping can performed from either side (for left- or
right-handed users).
Crimping tools with built-in ratchets are recommended,
such the WAGO Variocrimp tools. These tools open
automatically after the crimping operation complete.
Inadequate crimping can allow the conductor be
pulled out the connection Hollow spaces also remain,
permitting oxidation formation and leading increase
in contact resistance.
• Ergonomically designed handles
