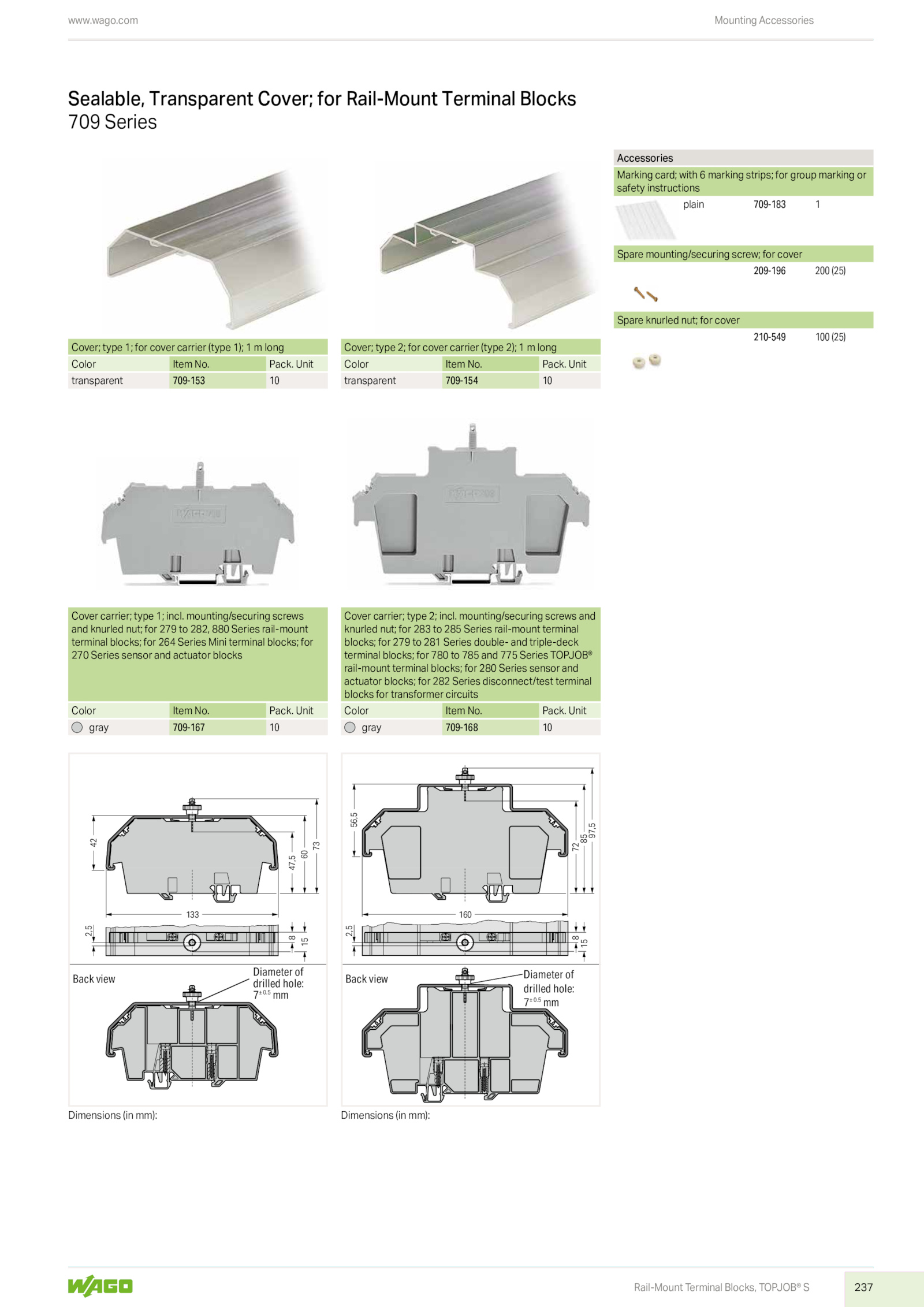

Rail-Mount Terminal Blocks, TOPJOB® S
Mounting Accessories
709 Series
Sealable, Transparent Cover; for Rail-Mount Terminal Blocks
Cover; type for cover carrier (type 1); long Cover; type for cover carrier (type 2); long
Color Item No. Unit
transparent 709-153 transparent 709-154 10
Cover carrier; type incl. Unit Color Item No. Unit Color Item No. Pack. Pack.wago. Pack.5
mm
Back view
www. Unit
gray 709-167 gray 709-168 10
Accessories
Marking card; with marking strips; for group marking or
safety instructions
plain 709-183 1
Spare mounting/securing screw; for cover
209-196 200 (25)
Spare knurled nut; for cover
210-549 100 (25)
Dimensions (in mm): Dimensions (in mm):
