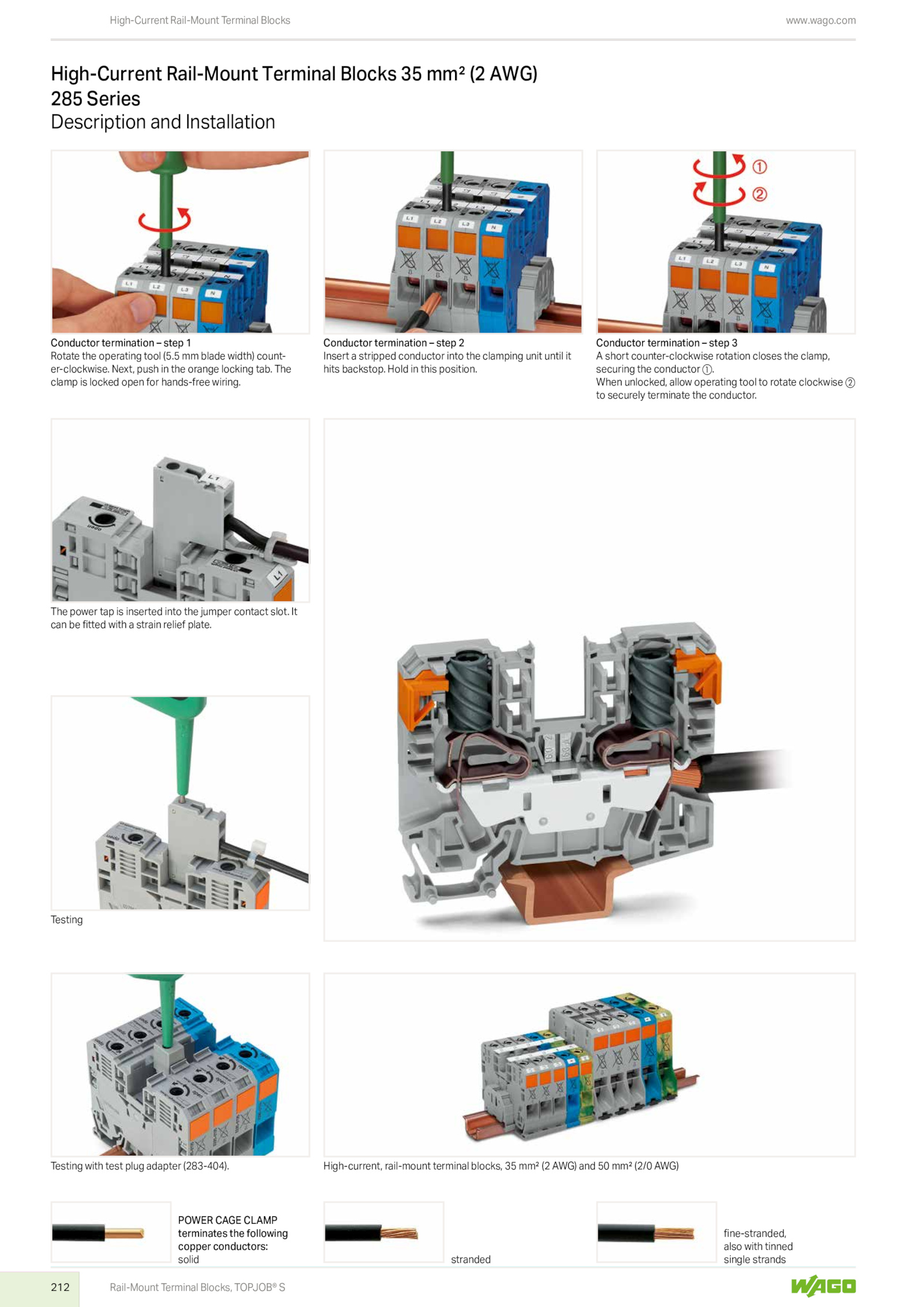

212 www.com Rail-Mount Terminal Blocks, TOPJOB® S High-Current Rail-Mount Terminal Blocks Description and Installation High-Current Rail-Mount Terminal Blocks mm² AWG) 285 Series Conductor termination step 1 Rotate the operating tool (5.5 blade width) count- er-clockwise. Next, push the orange locking tab. Testing Testing with test plug adapter (283‑404). Conductor termination step 3 A short counter-clockwise rotation closes the clamp, securing the conductor !. It can fitted with strain relief plate. When unlocked, allow operating tool rotate clockwise " to securely terminate the conductor.wago. Conductor termination step 2 Insert stripped conductor into the clamping unit until it hits backstop. The power tap inserted into the jumper contact slot. Hold this position. The clamp locked open for hands-free wiring. POWER CAGE CLAMP terminates the following copper conductors: solid stranded fine-stranded, also with tinned single strands High-current, rail-mount terminal blocks, mm² AWG) and mm² (2/0 AWG)
