, when designing prototypes).
Mounting
The appropriate mounting tool shall used order
to guarantee that the individual modules are properly
attached each other without damaging the locking
latches.
Modules and Pole Numbers
A customized X-COM®S-SYSTEM-MINI female plug
consists of:
One base module with end plate
Up end modules
Intended Use
According 61984, pluggable connectors without a
current interrupting capacity must not mated unmat-
ed when live under load.com
Rail-Mount Terminal Blocks, TOPJOB® S
Rail-Mount Terminal Blocks with Pluggable Connector, X-COM®S-SYSTEM-MINI
End module

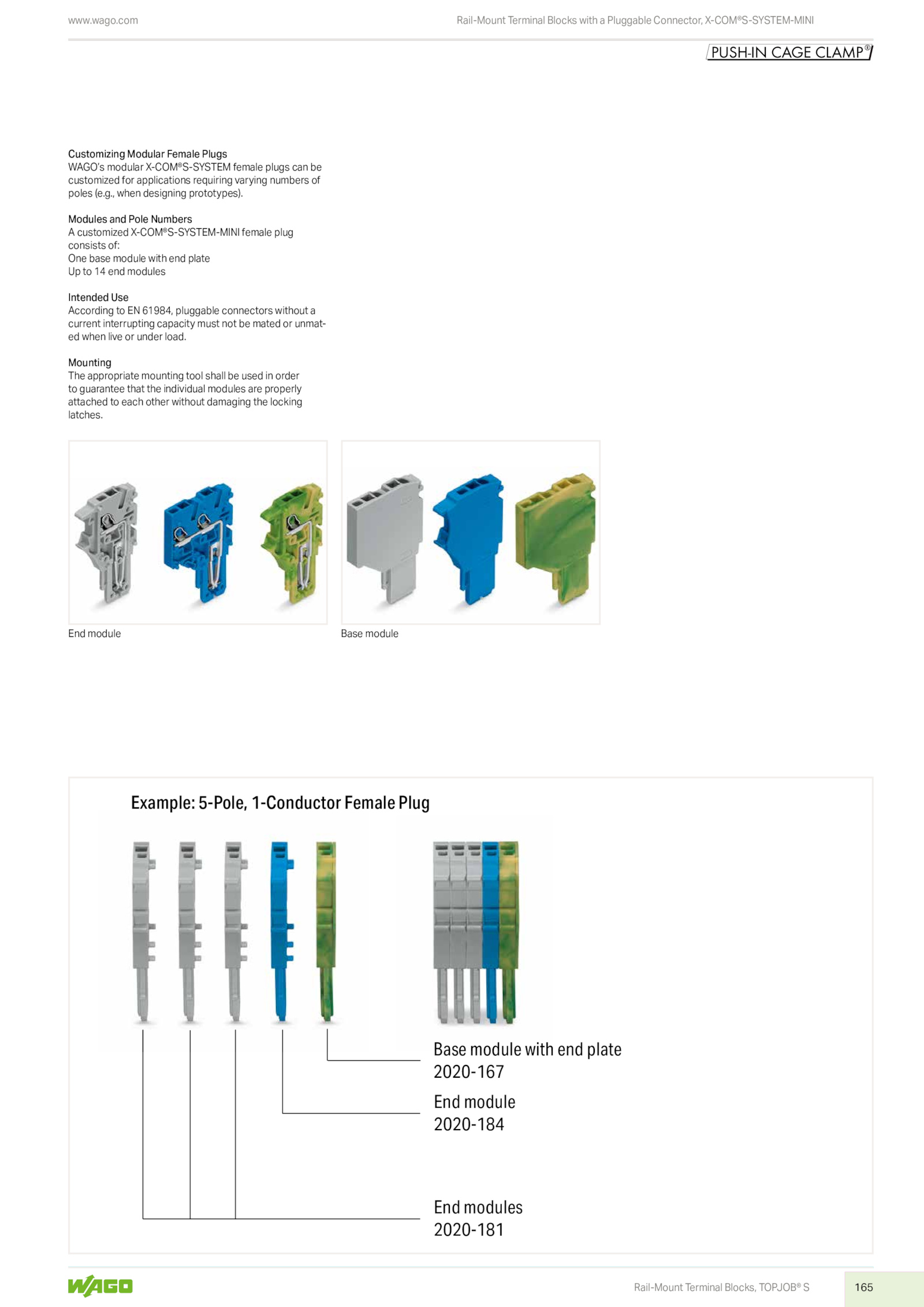

Customizing Modular Female Plugs
WAGO’s modular X-COM®S-SYSTEM female plugs can be
customized for applications requiring varying numbers of
poles (e.g.wago.
Base module
.165
Example: 5-Pole, 1-Conductor Female Plug
Base module with end plate
2020-167
End module
2020-184
End modules
2020-181
