Rail-Mount Terminal Blocks, TOPJOB® S
Rail-Mount Terminal Blocks with Pluggable Connector, X-COM®S-SYSTEM

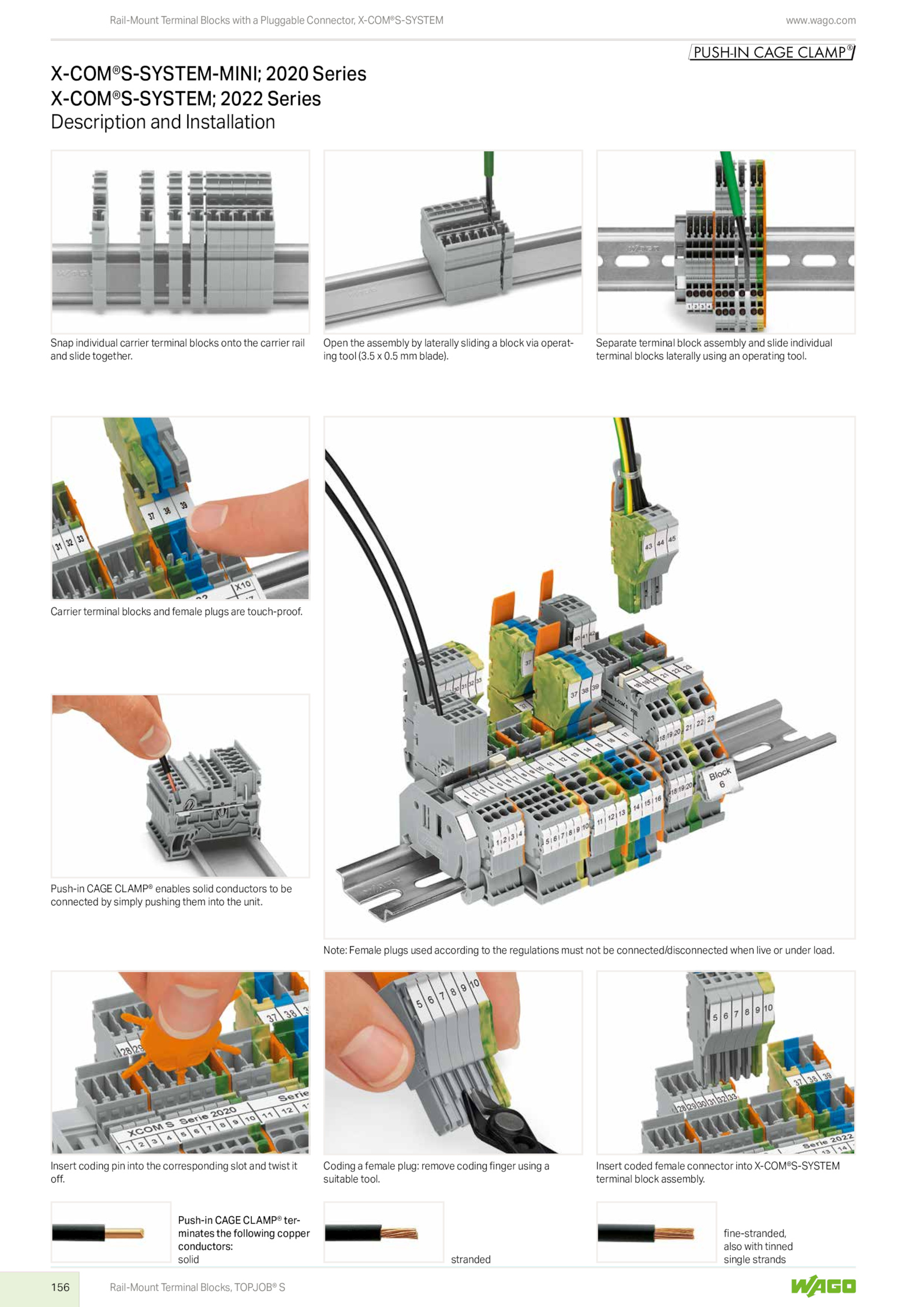

Description and Installation
X-COM®S-SYSTEM-MINI; 2020 Series
X-COM®S-SYSTEM; 2022 Series
Snap individual carrier terminal blocks onto the carrier rail
and slide together.5 0.
Open the assembly laterally sliding block via operat-
ing tool (3.
Insert coding pin into the corresponding slot and twist it
off.
Push-in CAGE CLAMP® enables solid conductors be
connected simply pushing them into the unit.
Note: Female plugs used according the regulations must not connected/disconnected when live under load.
Insert coded female connector into X-COM®S-SYSTEM
terminal block assembly.wago.
Carrier terminal blocks and female plugs are touch-proof.5 blade).
Separate terminal block assembly and slide individual
terminal blocks laterally using operating tool.
.
Push-in CAGE CLAMP® ter-
minates the following copper
conductors:
solid stranded
fine-stranded,
also with tinned
single strands
Coding female plug: remove coding finger using a
suitable tool.156
