Rail-Mount Terminal Blocks, TOPJOB® S

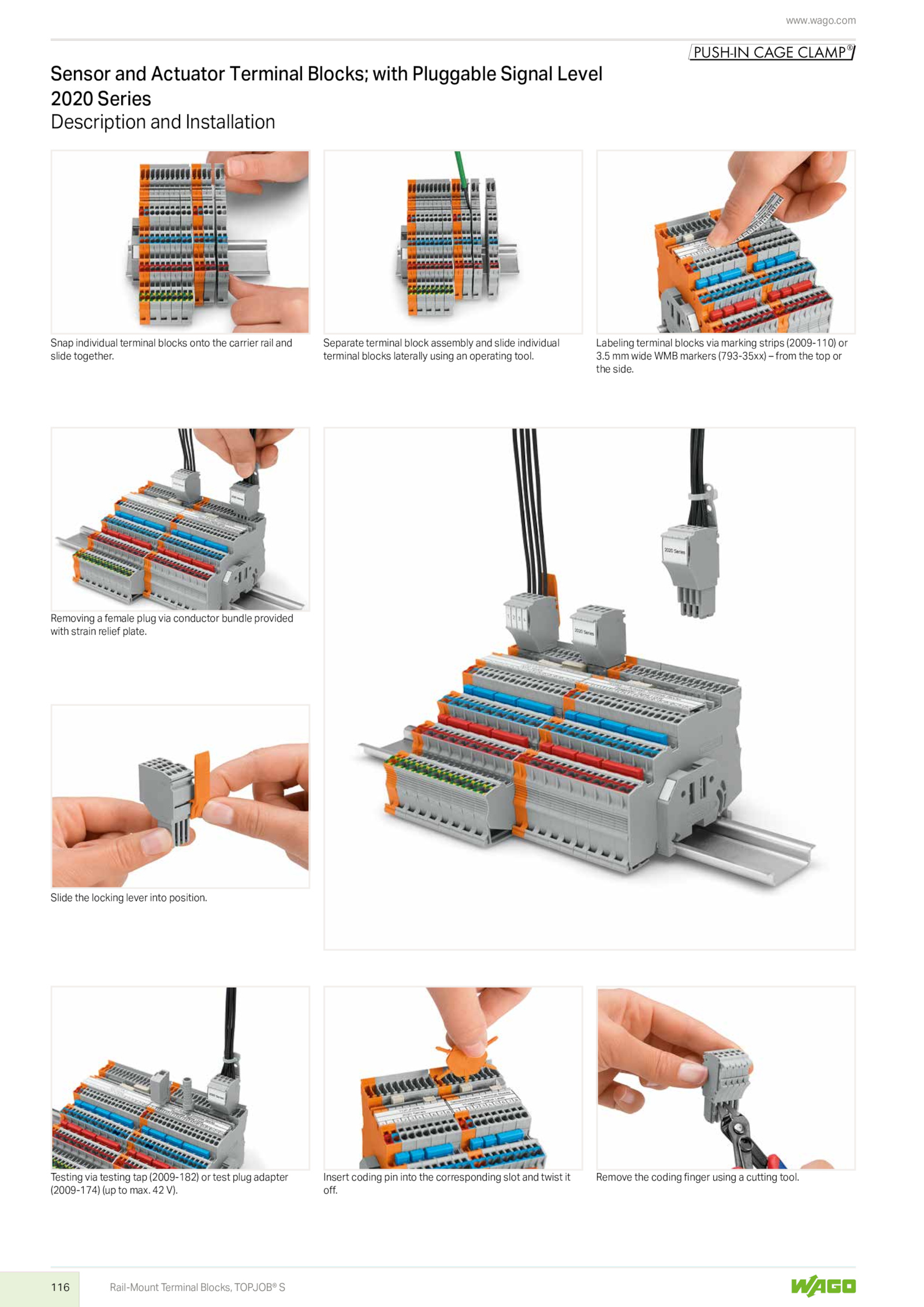

Description and Installation
Sensor and Actuator Terminal Blocks; with Pluggable Signal Level
2020 Series
Snap individual terminal blocks onto the carrier rail and
slide together.
Remove the coding finger using cutting tool.
Insert coding pin into the corresponding slot and twist it
off.
Removing female plug via conductor bundle provided
with strain relief plate.wago. V).
Labeling terminal blocks via marking strips (2009‑110) or
3.
Separate terminal block assembly and slide individual
terminal blocks laterally using operating tool.
Testing via testing tap (2009-182) test plug adapter
(2009-174) (up max.
.5 wide WMB markers (793‑35xx) from the top or
the side.116
www.
Slide the locking lever into position
