Rail-Mount Terminal Blocks, TOPJOB® S
Rail-Mount Terminal Blocks, TOPJOB® S

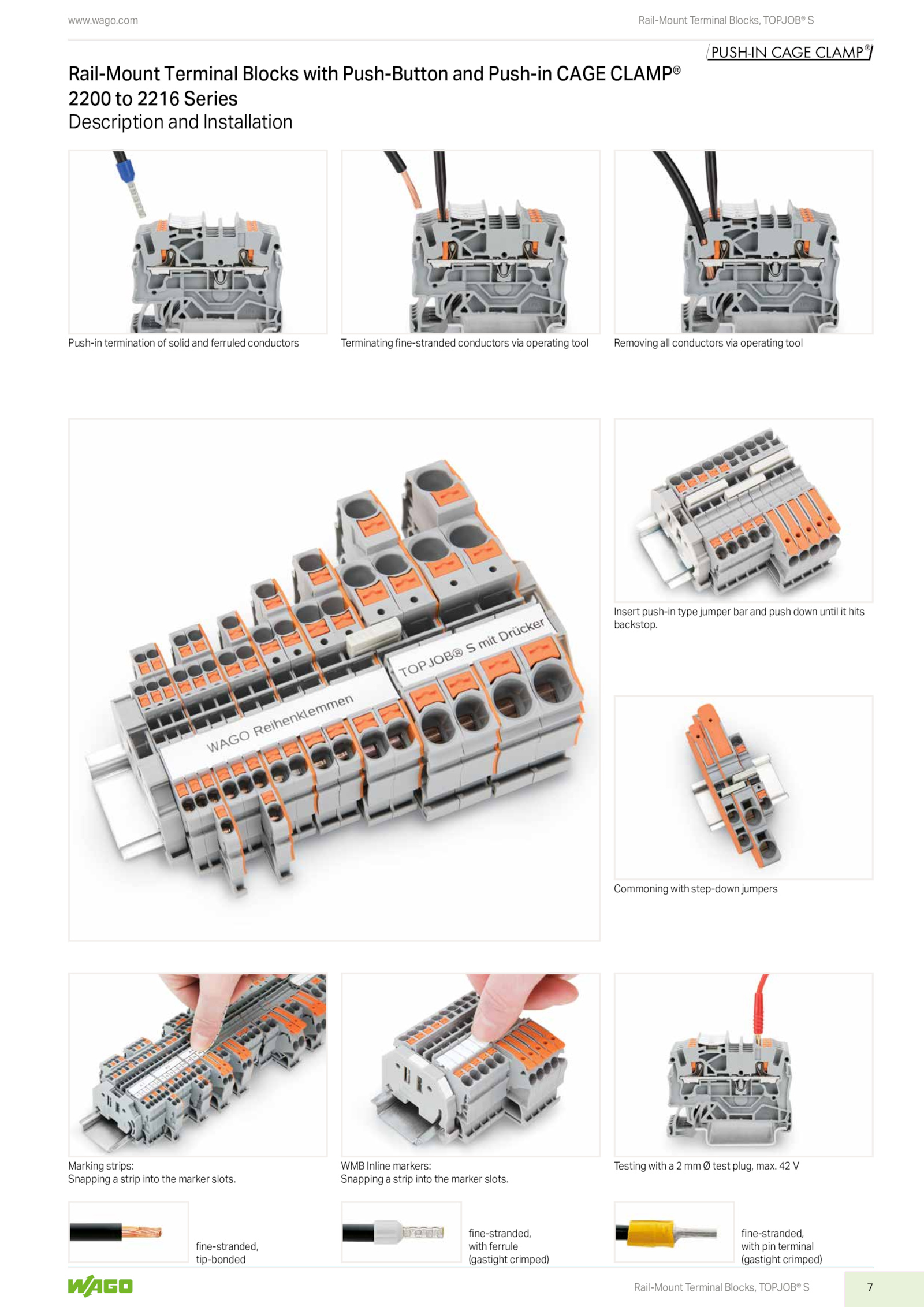

Description and Installation
Rail-Mount Terminal Blocks with Push-Button and Push‑in CAGE CLAMP®
2200 2216 Series
fine-stranded,
tip-bonded
fine-stranded,
with ferrule
(gastight crimped)
fine-stranded,
with pin terminal
(gastight crimped)
Push-in termination solid and ferruled conductors Terminating fine-stranded conductors via operating tool Removing all conductors via operating tool
Marking strips:
Snapping strip into the marker slots.wago..
WMB Inline markers:
Snapping strip into the marker slots.
Commoning with step-down jumpers
Insert push-in type jumper bar and push down until hits
backstop.
Testing with test plug, max
