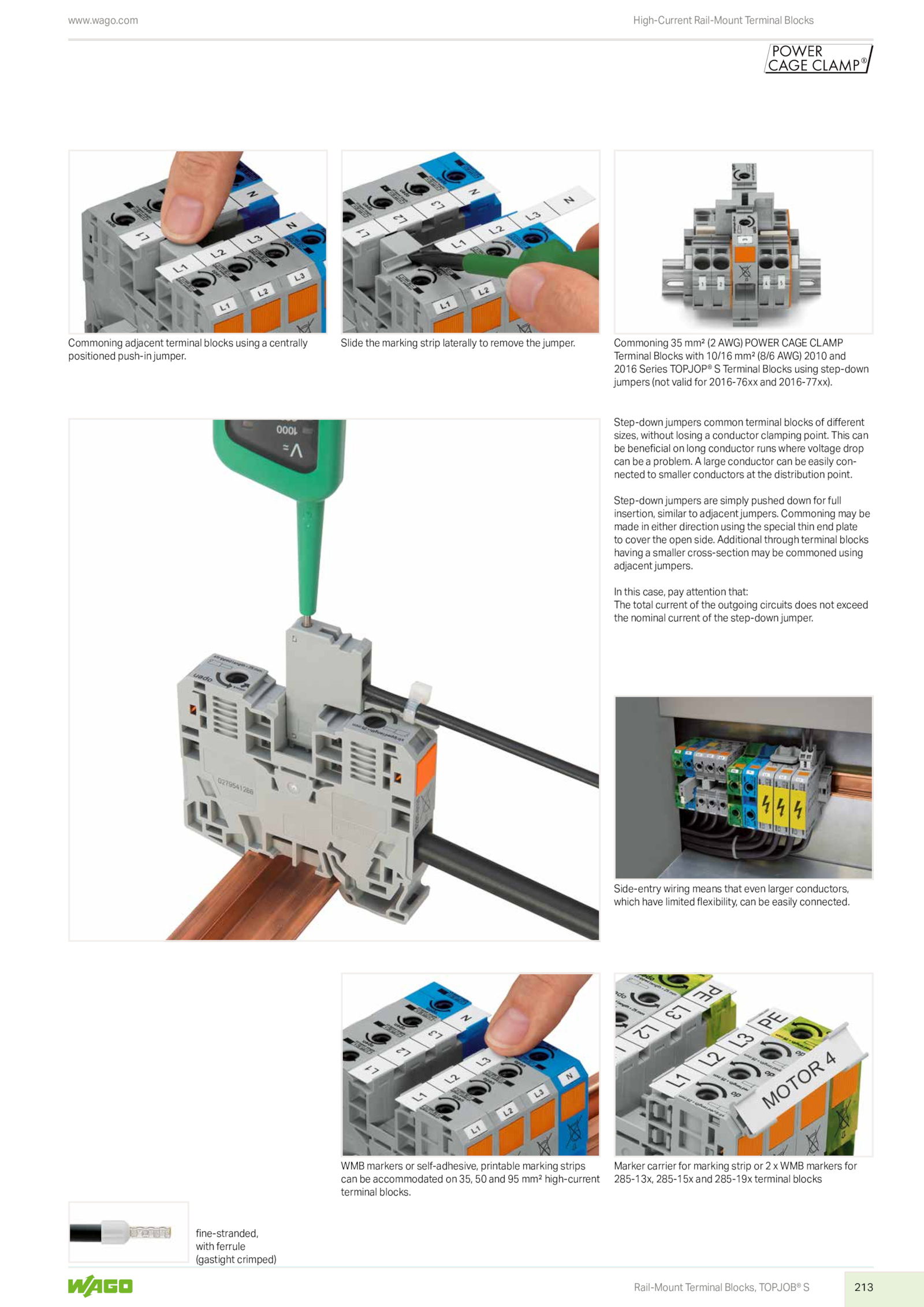

213 www. This can be beneficial long conductor runs where voltage drop can problem. large conductor can easily con- nected smaller conductors the distribution point. Commoning may be made either direction using the special thin end plate to cover the open side.wago. Marker carrier for marking strip WMB markers for 285‑13x, 285‑15x and 285‑19x terminal blocks . Slide the marking strip laterally remove the jumper. Side-entry wiring means that even larger conductors, which have limited flexibility, can easily connected.com Rail-Mount Terminal Blocks, TOPJOB® S High-Current Rail-Mount Terminal Blocks fine-stranded, with ferrule (gastight crimped) Commoning adjacent terminal blocks using centrally positioned push-in jumper. Step-down jumpers common terminal blocks different sizes, without losing conductor clamping point. Step-down jumpers are simply pushed down for full insertion, similar adjacent jumpers. WMB markers self-adhesive, printable marking strips can accommodated 35, and mm² high-current terminal blocks. In this case, pay attention that: The total current the outgoing circuits does not exceed the nominal current the step-down jumper. Commoning mm² AWG) POWER CAGE CLAMP Terminal Blocks with 10/16 mm² (8/6 AWG) 2010 and 2016 Series TOPJOP® Terminal Blocks using step-down jumpers (not valid for 2016‑76xx and 2016‑77xx). Additional through terminal blocks having smaller cross-section may commoned using adjacent jumpers
