Installation Rail-Mount Terminal Blocks, TOPJOB® S
Installation

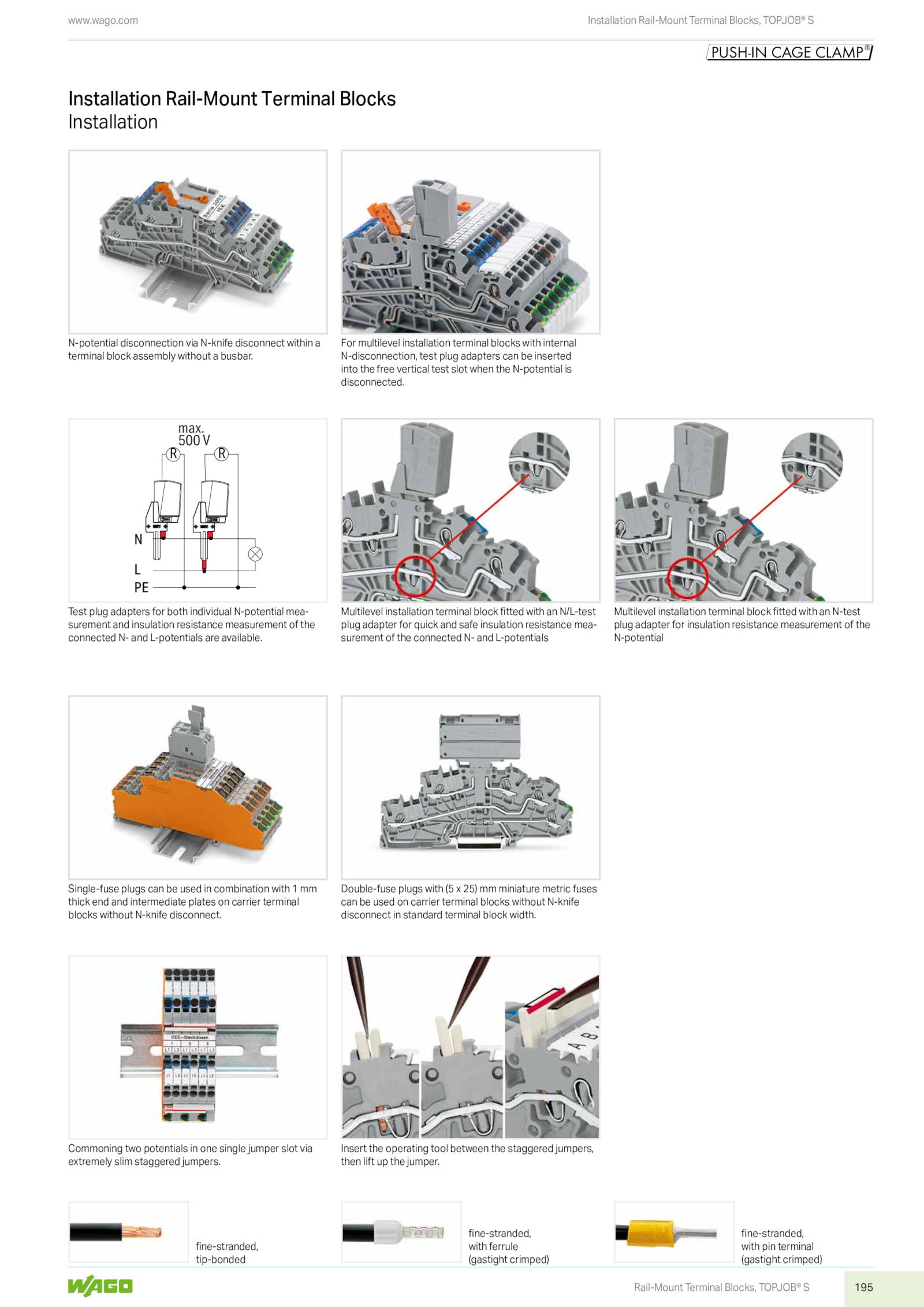

Installation Rail-Mount Terminal Blocks
N-potential disconnection via N-knife disconnect within a
terminal block assembly without busbar.
For multilevel installation terminal blocks with internal
N-disconnection, test plug adapters can inserted
into the free vertical test slot when the N-potential is
disconnected.
Double-fuse plugs with 25) miniature metric fuses
can used carrier terminal blocks without N-knife
disconnect standard terminal block width.wago.195
R R
N
PE
L
max.
Test plug adapters for both individual N-potential mea-
surement and insulation resistance measurement the
connected and L-potentials are available.
fine-stranded,
tip-bonded
fine-stranded,
with ferrule
(gastight crimped)
fine-stranded,
with pin terminal
(gastight crimped)
Insert the operating tool between the staggered jumpers,
then lift the jumper.
Commoning two potentials one single jumper slot via
extremely slim staggered jumpers.
Multilevel installation terminal block fitted with N/L-test
plug adapter for quick and safe insulation resistance mea-
surement the connected and L-potentials
Multilevel installation terminal block fitted with N-test
plug adapter for insulation resistance measurement the
N-potential
Single-fuse plugs can used combination with mm
thick end and intermediate plates carrier terminal
blocks without N-knife disconnect.
500 V
www
