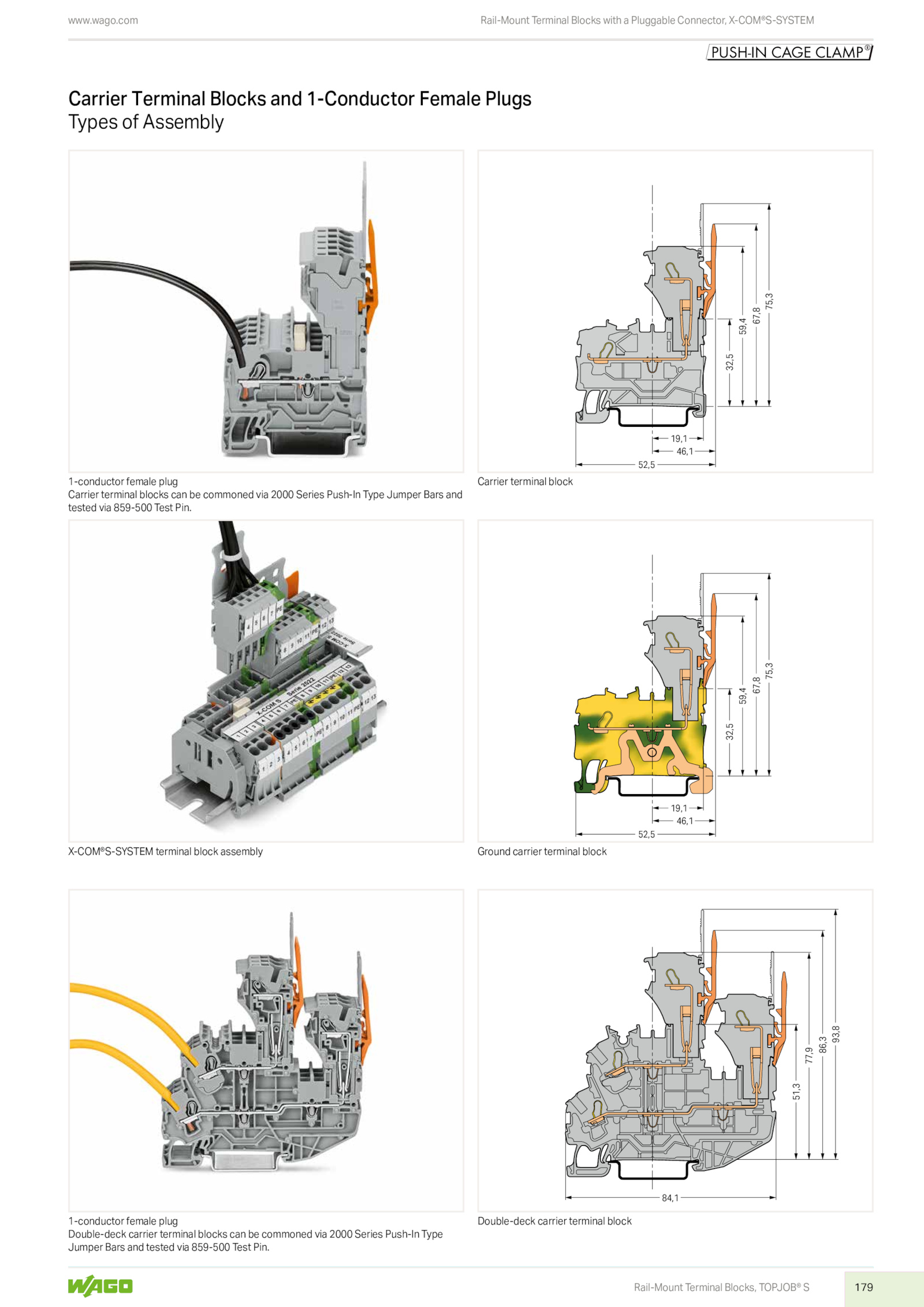

X-COM®S-SYSTEM terminal block assembly
1-conductor female plug
Double-deck carrier terminal blocks can commoned via 2000 Series Push-In Type
Jumper Bars and tested via 859-500 Test Pin.
Carrier terminal block
Ground carrier terminal block
Double-deck carrier terminal block
.com
Rail-Mount Terminal Blocks, TOPJOB® S
Rail-Mount Terminal Blocks with Pluggable Connector, X-COM®S-SYSTEM
Types Assembly
Carrier Terminal Blocks and 1-Conductor Female Plugs
1-conductor female plug
Carrier terminal blocks can commoned via 2000 Series Push-In Type Jumper Bars and
tested via 859-500 Test Pin.179
19,1
46,1
52,5
32,5
59,4
67,8
75,3
19,1
46,1
52,5
32,5
59,4
67,8
75,3
51,3
77,9
86,3
93,8
84,1
