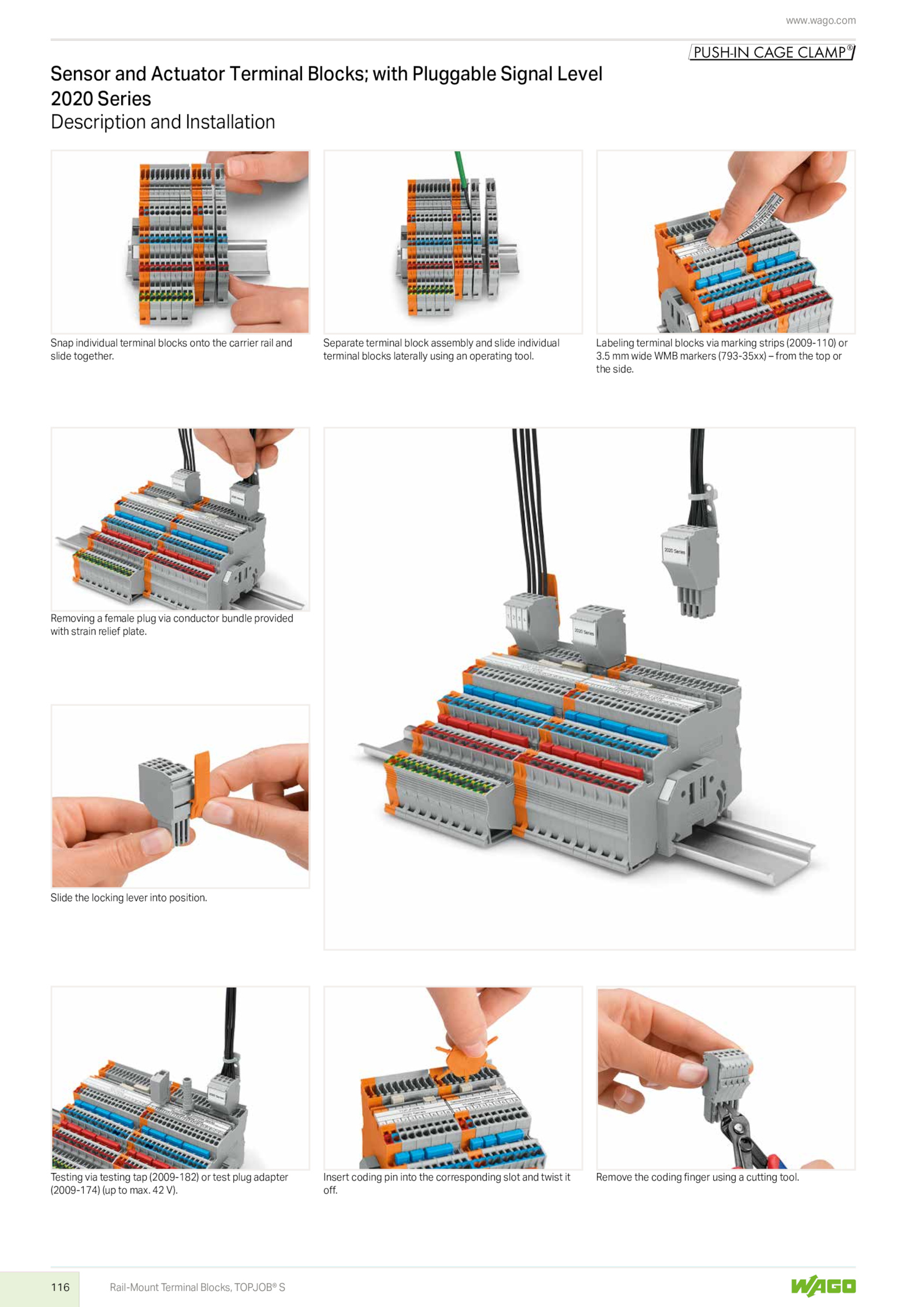

5 wide WMB markers (793‑35xx) from the top or the side. . Removing female plug via conductor bundle provided with strain relief plate. Labeling terminal blocks via marking strips (2009‑110) or 3.116 www. Separate terminal block assembly and slide individual terminal blocks laterally using operating tool. Remove the coding finger using cutting tool.wago. Testing via testing tap (2009-182) test plug adapter (2009-174) (up max.com Rail-Mount Terminal Blocks, TOPJOB® S Description and Installation Sensor and Actuator Terminal Blocks; with Pluggable Signal Level 2020 Series Snap individual terminal blocks onto the carrier rail and slide together. V). Insert coding pin into the corresponding slot and twist it off. Slide the locking lever into position
