Terminating fine-stranded conductors via operating tool.
Push-in CAGE CLAMP®
terminates the following
copper conductors:
solid stranded
fine-stranded,
also with tinned
single strands
Commoning with Step-Down Jumpers This star point jumper has been specially developed to
create “star point” and used motor terminal boards
equipped with TOPJOB® Rail-Mount Terminal Blocks.
Push-In Type Jumper Bars
Marking with felt-tip pen.wago.30
www.
.com
Rail-Mount Terminal Blocks, TOPJOB® S
Rail-Mount Terminal Blocks, TOPJOB® S

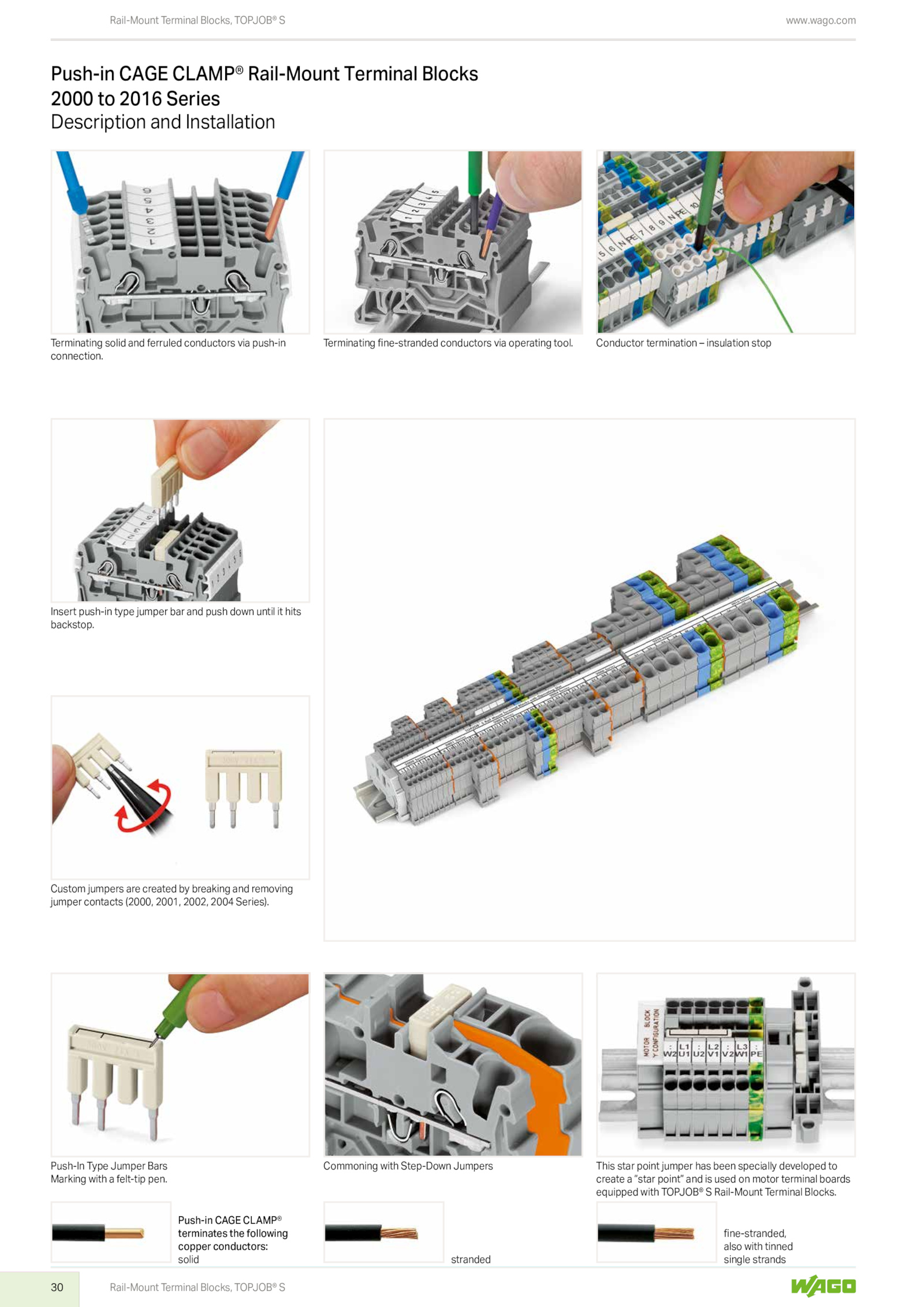

Description and Installation
Push‑in CAGE CLAMP® Rail-Mount Terminal Blocks
2000 2016 Series
Terminating solid and ferruled conductors via push-in
connection.
Custom jumpers are created breaking and removing
jumper contacts (2000, 2001, 2002, 2004 Series). Conductor termination insulation stop
Insert push-in type jumper bar and push down until hits
backstop
