Rail-Mount Terminal Blocks, TOPJOB® S
Mounting Accessories

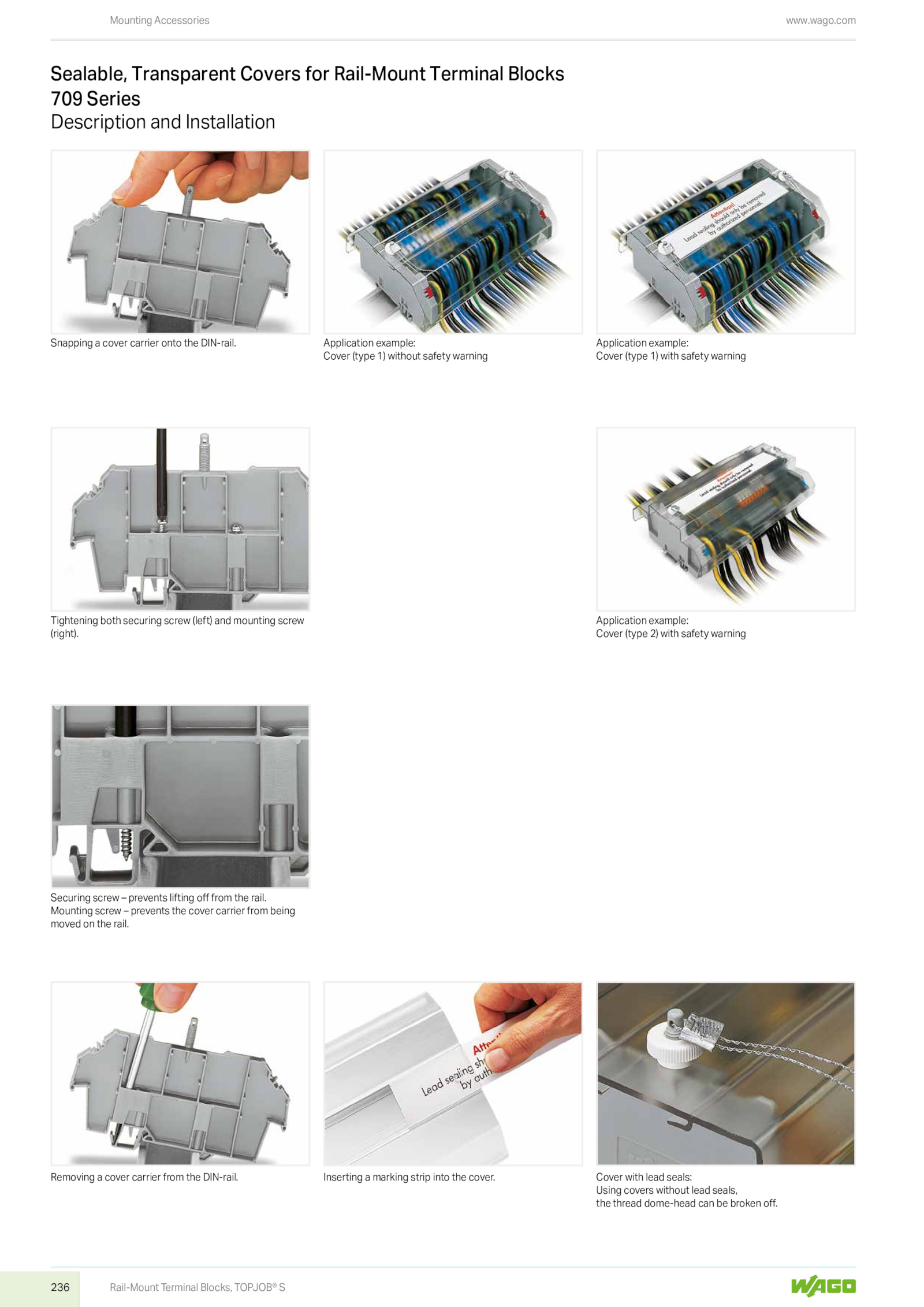

Description and Installation
Sealable, Transparent Covers for Rail-Mount Terminal Blocks
709 Series
Snapping cover carrier onto the DIN-rail.236
www. Cover with lead seals:
Using covers without lead seals,
the thread dome-head can broken off.
Mounting screw prevents the cover carrier from being
moved the rail. Inserting marking strip into the cover.wago.
Securing screw prevents lifting off from the rail.
Application example:
Cover (type with safety warning
Removing cover carrier from the DIN-rail. Application example:
Cover (type without safety warning
Application example:
Cover (type with safety warning
Tightening both securing screw (left) and mounting screw
(right)
