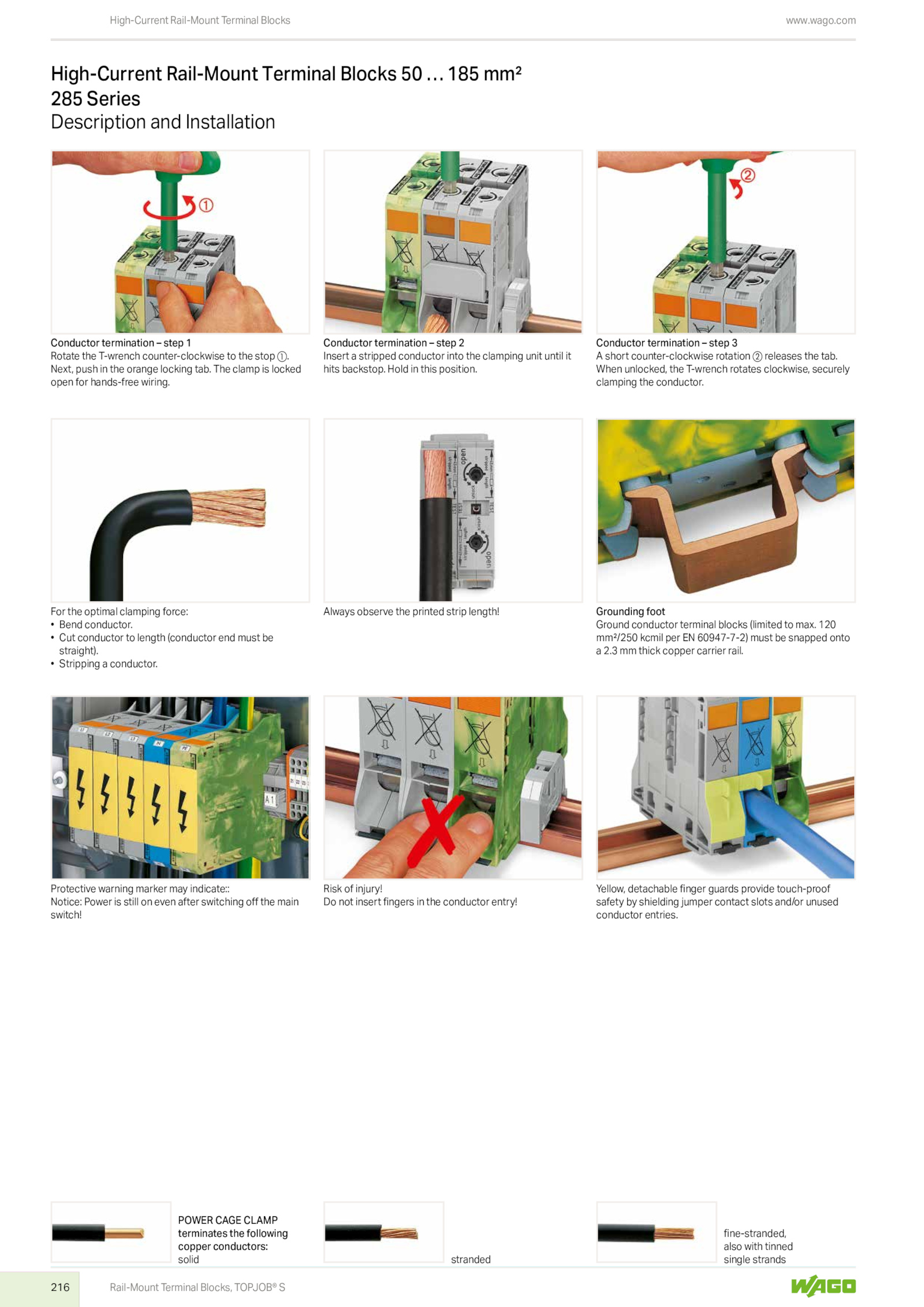

com Rail-Mount Terminal Blocks, TOPJOB® S High-Current Rail-Mount Terminal Blocks Description and Installation High-Current Rail-Mount Terminal Blocks 185 mm² 285 Series Conductor termination step 1 Rotate the T-wrench counter-clockwise the stop !. Next, push the orange locking tab. 120 mm²/250 kcmil per 60947-7-2) must snapped onto a 2. The clamp locked open for hands-free wiring. For the optimal clamping force: • Bend conductor. • Cut conductor length (conductor end must be straight). Hold this position. Always observe the printed strip length! Grounding foot Ground conductor terminal blocks (limited max. . Conductor termination step 2 Insert stripped conductor into the clamping unit until it hits backstop. When unlocked, the T-wrench rotates clockwise, securely clamping the conductor. • Stripping conductor.216 www.3 thick copper carrier rail. Conductor termination step 3 A short counter-clockwise rotation releases the tab.wago. Protective warning marker may indicate:: Notice: Power still even after switching off the main switch! Risk injury! Do not insert fingers the conductor entry! POWER CAGE CLAMP terminates the following copper conductors: solid stranded fine-stranded, also with tinned single strands Yellow, detachable finger guards provide touch-proof safety shielding jumper contact slots and/or unused conductor entries
