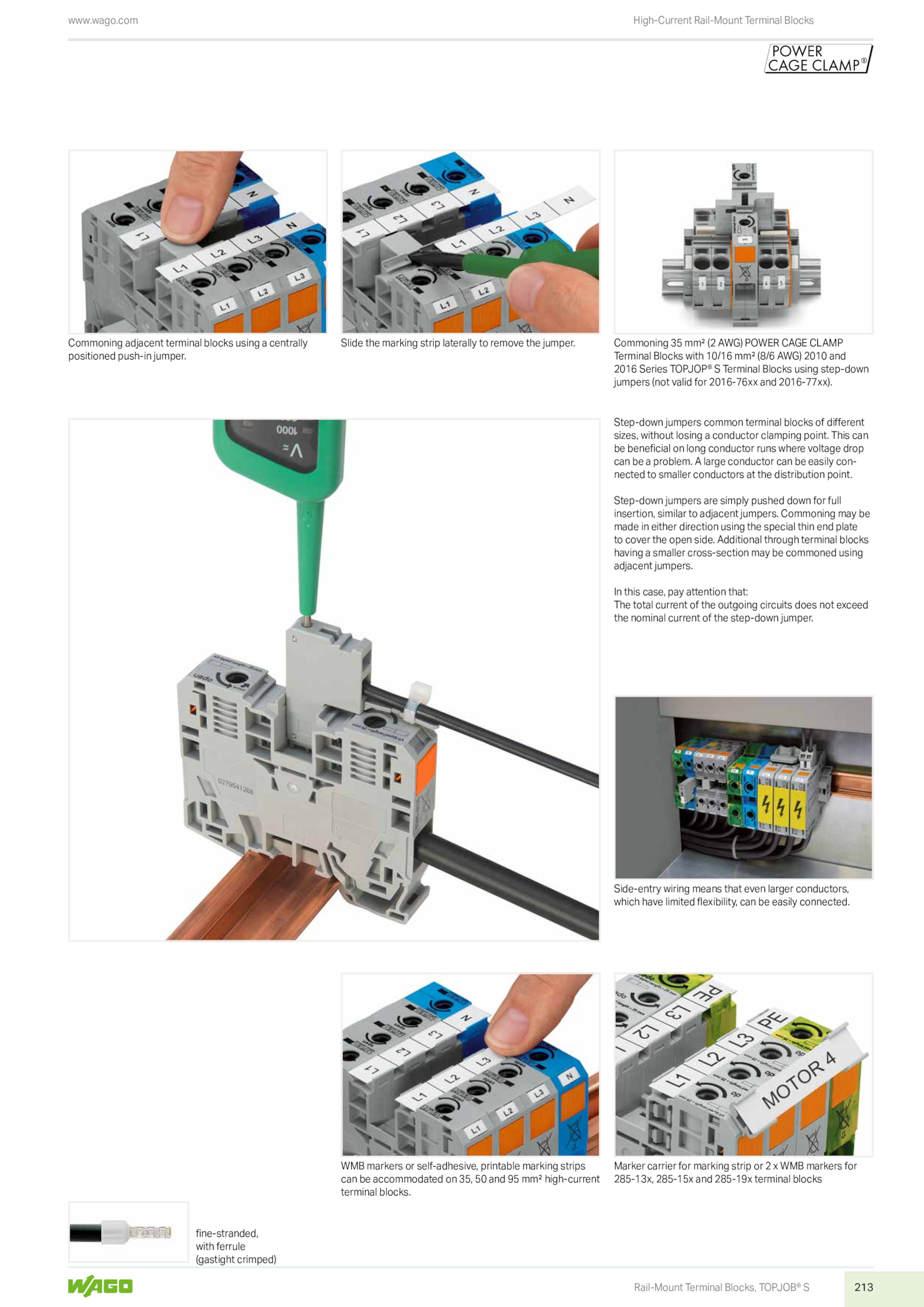

213 www. large conductor can easily con- nected smaller conductors the distribution point. Commoning mm² AWG) POWER CAGE CLAMP Terminal Blocks with 10/16 mm² (8/6 AWG) 2010 and 2016 Series TOPJOP® Terminal Blocks using step-down jumpers (not valid for 2016‑76xx and 2016‑77xx). This can be beneficial long conductor runs where voltage drop can problem.com Rail-Mount Terminal Blocks, TOPJOB® S High-Current Rail-Mount Terminal Blocks fine-stranded, with ferrule (gastight crimped) Commoning adjacent terminal blocks using centrally positioned push-in jumper. WMB markers self-adhesive, printable marking strips can accommodated 35, and mm² high-current terminal blocks.wago. Marker carrier for marking strip WMB markers for 285‑13x, 285‑15x and 285‑19x terminal blocks . Additional through terminal blocks having smaller cross-section may commoned using adjacent jumpers. In this case, pay attention that: The total current the outgoing circuits does not exceed the nominal current the step-down jumper. Step-down jumpers are simply pushed down for full insertion, similar adjacent jumpers. Commoning may be made either direction using the special thin end plate to cover the open side. Side-entry wiring means that even larger conductors, which have limited flexibility, can easily connected. Slide the marking strip laterally remove the jumper. Step-down jumpers common terminal blocks different sizes, without losing conductor clamping point
