TOPJOB S Rail-Mount Terminal Block Systems

| Kategorie: Katalog  | Tento dokument chci!

Vydal: WAGO Elektro spol. s r.o.

Strana 212 z 268







Poznámky redaktora

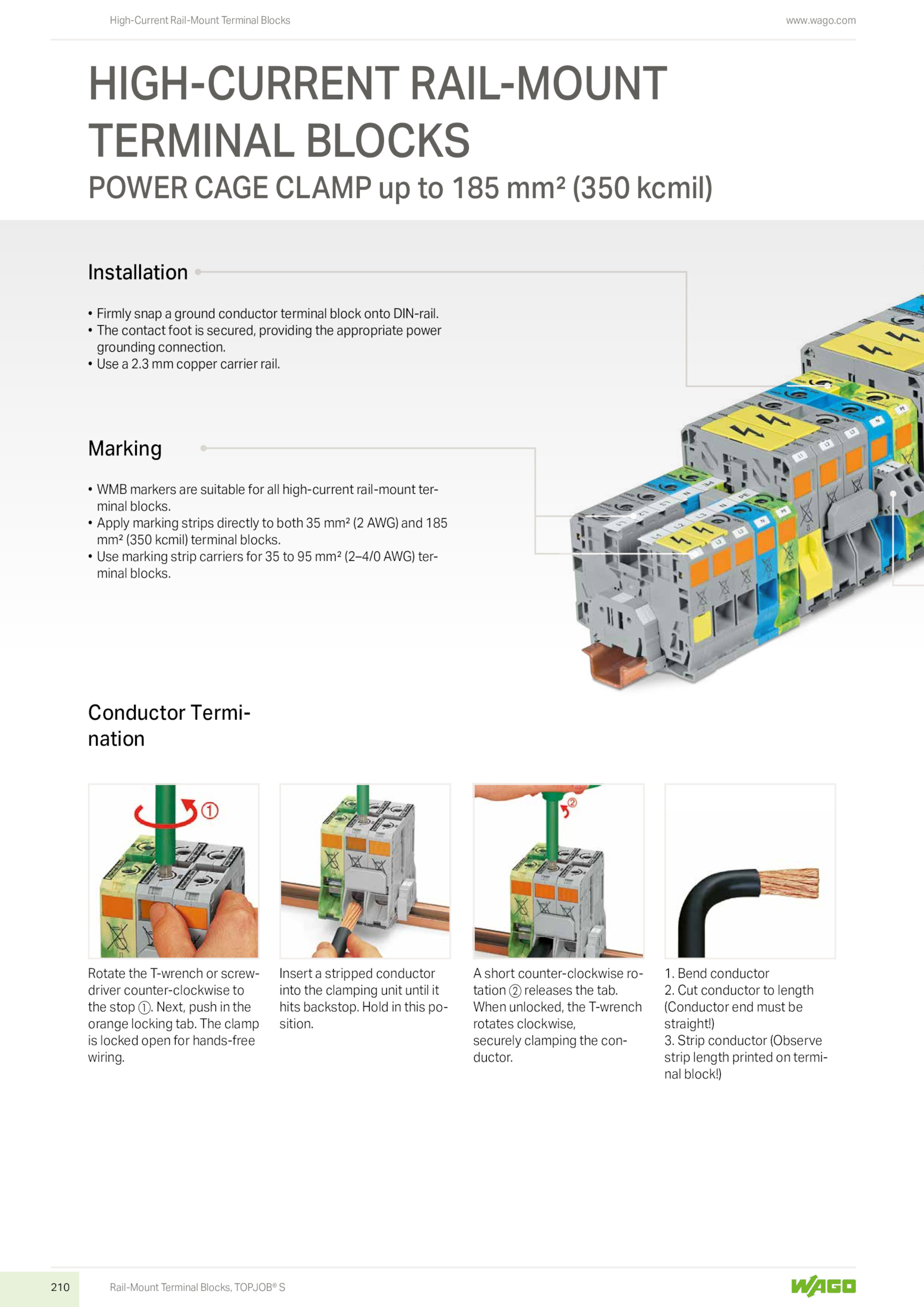

Hold this po- sition. When unlocked, the T-wrench rotates clockwise, securely clamping the con- ductor. Insert stripped conductor into the clamping unit until it hits backstop.210 www. • Use 2.com Rail-Mount Terminal Blocks, TOPJOB® S High-Current Rail-Mount Terminal Blocks HIGH-CURRENT RAIL-MOUNT TERMINAL BLOCKS POWER CAGE CLAMP 185 mm² (350 kcmil) Installation Marking • Firmly snap ground conductor terminal block onto DIN-rail. Bend conductor 2. Conductor Termi- nation Rotate the T-wrench screw- driver counter-clockwise to the stop Next, push the orange locking tab.wago. • WMB markers are suitable for all high-current rail-mount ter- minal blocks. • Use marking strip carriers for mm² (2–4/0 AWG) ter- minal blocks. Cut conductor length (Conductor end must be straight!) 3. Strip conductor (Observe strip length printed termi- nal block!) . • The contact foot secured, providing the appropriate power grounding connection. • Apply marking strips directly both mm² AWG) and 185 mm² (350 kcmil) terminal blocks. A short counter-clockwise ro- tation releases the tab. The clamp is locked open for hands-free wiring. 1.3 copper carrier rail
