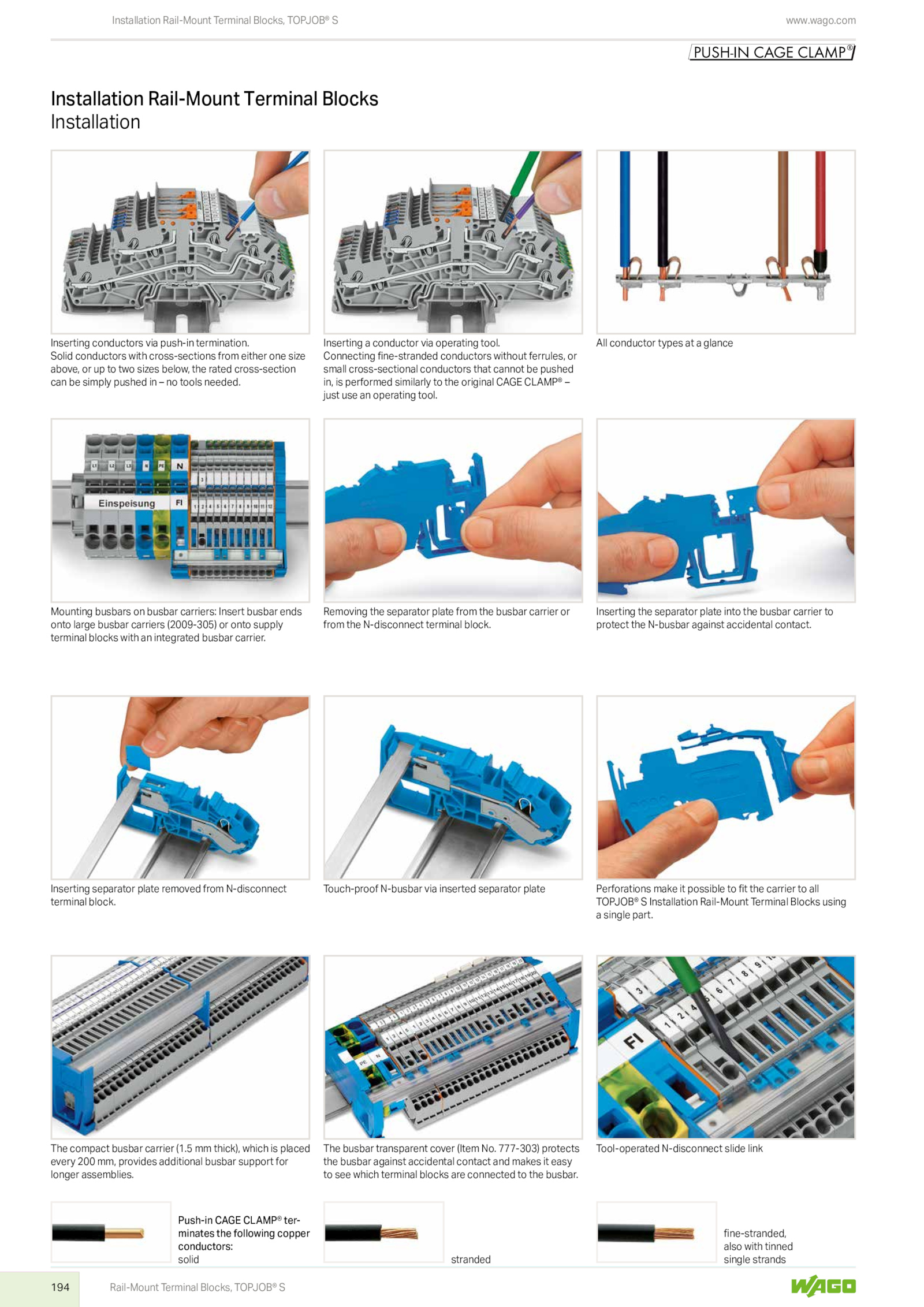

Installation Rail-Mount Terminal Blocks, TOPJOB® S
Installation
Installation Rail-Mount Terminal Blocks
Inserting conductors via push-in termination.
Inserting the separator plate into the busbar carrier to
protect the N-busbar against accidental contact.
The compact busbar carrier (1.5 thick), which placed
every 200 mm, provides additional busbar support for
longer assemblies.194
www.
Tool-operated N-disconnect slide link
Push-in CAGE CLAMP® ter-
minates the following copper
conductors:
solid stranded
fine-stranded,
also with tinned
single strands
.
Touch-proof N-busbar via inserted separator plate Perforations make possible fit the carrier all
TOPJOB® Installation Rail-Mount Terminal Blocks using
a single part.
All conductor types glance
Mounting busbars busbar carriers: Insert busbar ends
onto large busbar carriers (2009‑305) onto supply
terminal blocks with integrated busbar carrier.
Inserting conductor via operating tool. 777-303) protects
the busbar against accidental contact and makes easy
to see which terminal blocks are connected the busbar.wago.
Solid conductors with cross-sections from either one size
above, two sizes below, the rated cross-section
can simply pushed tools needed.
Connecting fine-stranded conductors without ferrules, or
small cross-sectional conductors that cannot pushed
in, performed similarly the original CAGE CLAMP® –
just use operating tool.
Removing the separator plate from the busbar carrier or
from the N-disconnect terminal block.
Inserting separator plate removed from N-disconnect
terminal block.
The busbar transparent cover (Item No
