2-conductor female plug
Carrier terminal blocks can commoned via 2000 Series Push-In Type Jumper Bars and
tested via 859-500 Test Pin.
1-conductor female plug
Double-deck carrier terminal blocks can commoned via 2000 Series Push-In Type
Jumper Bars and tested via 859-500 Test Pin.163
32,5
52,5
46,1
19,1
59,4
67,8
75,3
19,1
46,1
50,9
89,2 75,3
67,8
59,4
32,5
51,3
77,9
86,3
93,8
84,1
www.wago.com
Rail-Mount Terminal Blocks, TOPJOB® S
Rail-Mount Terminal Blocks with Pluggable Connector, X-COM®S-SYSTEM-MINI
Types Assembly

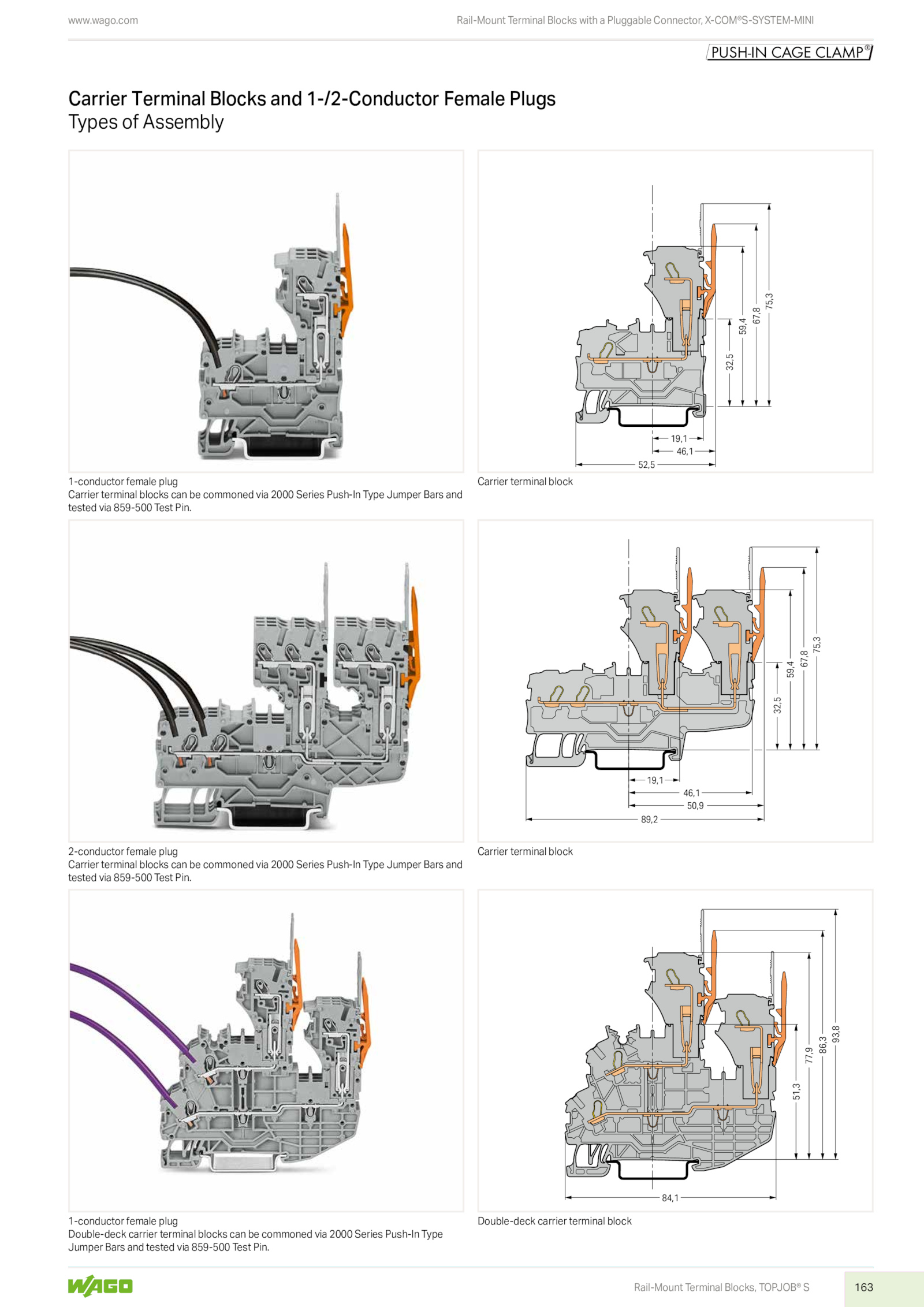

Carrier Terminal Blocks and 1-/2-Conductor Female Plugs
1-conductor female plug
Carrier terminal blocks can commoned via 2000 Series Push-In Type Jumper Bars and
tested via 859-500 Test Pin.
Carrier terminal block
Carrier terminal block
Double-deck carrier terminal block
