EATON SYSTEM
8

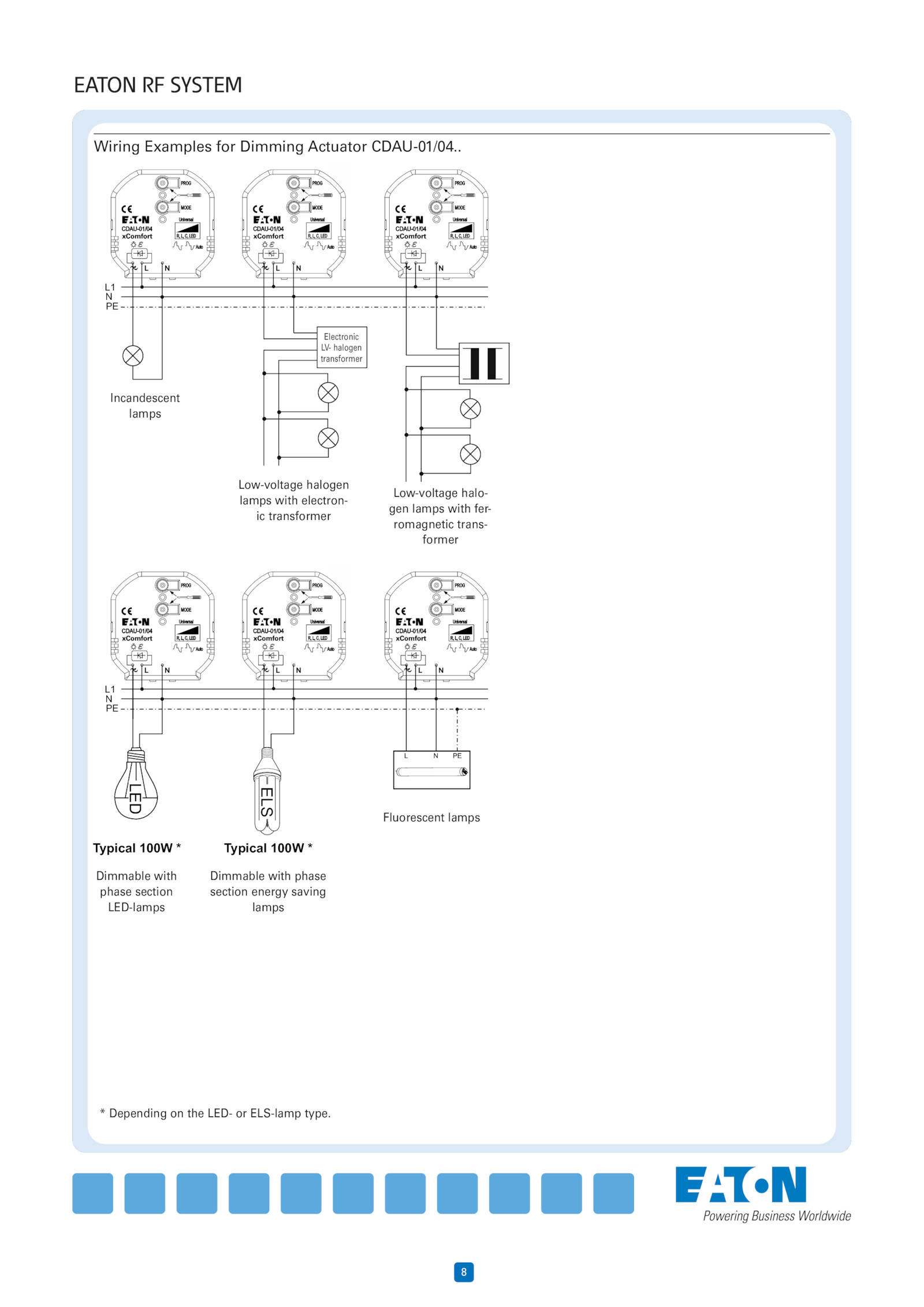

Wiring Examples for Dimming Actuator CDAU-01/04.
.
PE
N
L1
EL NV
Halogen
TRAFO
PE
N
L1
Typical *
10
ELS
Typical *
10
Auto
Auto
CDAU-01/04
MODE
PROG
Universal
R, LED
R, LED
L N
Auto
CDAU-01/04
MODE
PROG
Universal
R, LED
R, LED
L N
Auto
CDAU-01/04
MODE
PROG
Universal
R, LED
R, LED
L N
Auto
Auto
CDAU-01/04
MODE
PROG
Universal
R, LED
R, LED
L N
Auto
CDAU-01/04
MODE
PROG
Universal
R, LED
R, LED
L N
Auto
CDAU-01/04
MODE
PROG
Universal
R, LED
R, LED
L N
LED
Incandescent
lamps
Low-voltage halogen
lamps with electron-
ic transformer
Low-voltage halo-
gen lamps with fer-
romagnetic trans-
former
Electronic
LV- halogen
transformer
Fluorescent lamps
Dimmable with
phase section
LED-lamps
Dimmable with phase
section energy saving
lamps
* Depending the LED- ELS-lamp type.
