5 W
Display
LED orange, LAN PWR: ECI supply and LAN connection ok
LED green, LAN Data: ECI LAN data are being transmitted
LED red, Prog ON/OFF: Ident 25x flashing, for ECI identification
- Data transmission ECI
- Reset ECI
Operation
Supply switch: select supply viaTRS connector mini USB (CCIA-02/01)
Prog ON/OFF push-button: Reset
LAN RJ45 connector
Network factory setting IPv4: 192.EATON SYSTEM
46

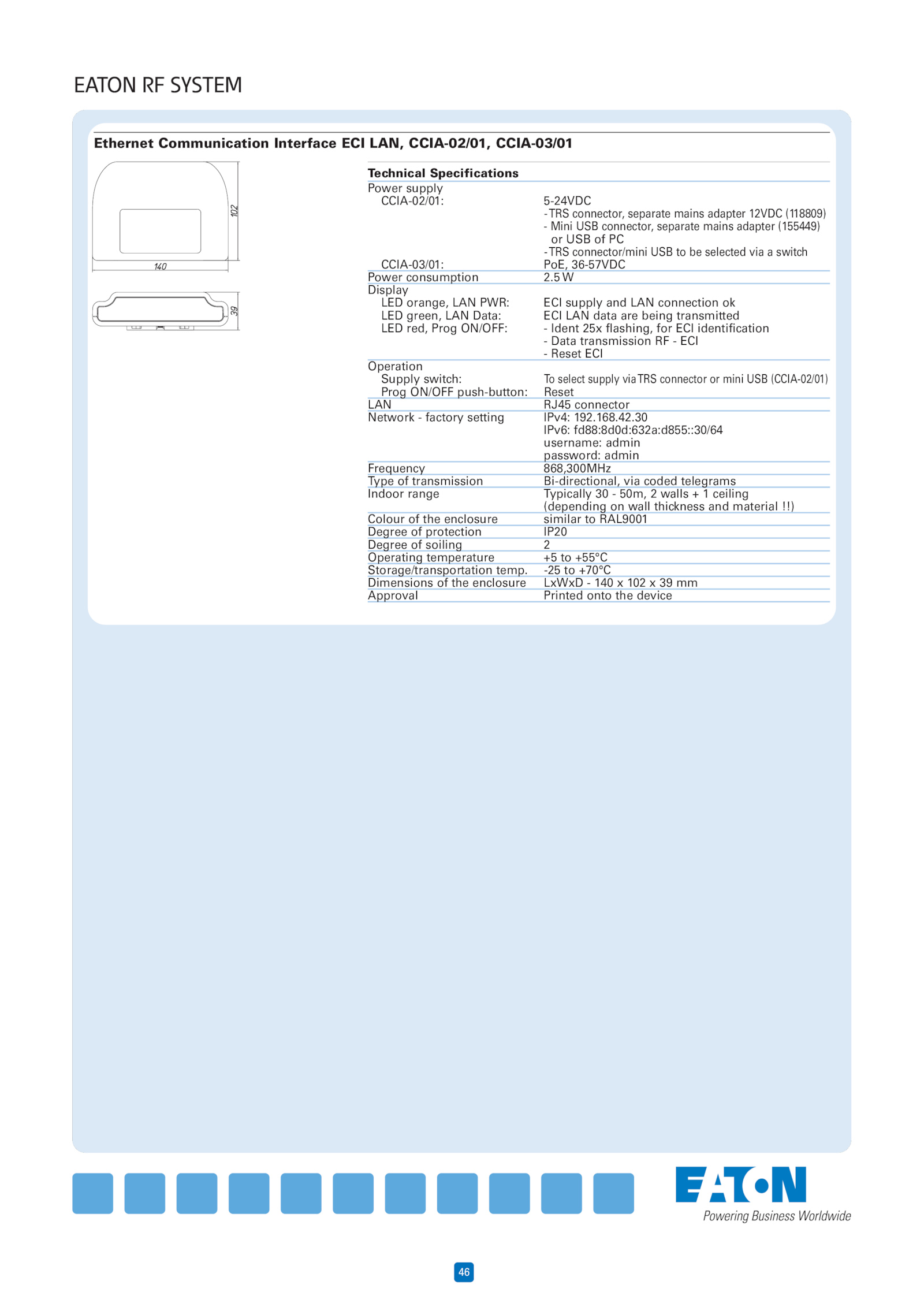

Ethernet Communication Interface ECI LAN, CCIA-02/01, CCIA-03/01
Technical Specifications
Power supply
CCIA-02/01: 5-24VDC
-TRS connector, separate mains adapter 12VDC (118809)
- Mini USB connector, separate mains adapter (155449)
or USB PC
-TRS connector/mini USB selected via switch
CCIA-03/01: PoE, 36-57VDC
Power consumption 2.168.30
IPv6: fd88:8d0d:632a:d855::30/64
username: admin
password: admin
Frequency 868,300MHz
Type transmission Bi-directional, via coded telegrams
Indoor range Typically 50m, walls ceiling
(depending wall thickness and material !!)
Colour the enclosure similar RAL9001
Degree protection IP20
Degree soiling 2
Operating temperature +55°C
Storage/transportation temp.42. -25 +70°C
Dimensions the enclosure LxWxD 140 102 mm
Approval Printed onto the device
