Reason: Leakage and drop voltage at
the wiring and/or the transmitting inter-
vals from the energy sensor the
Room-Manager and the update intervals
at the PV-inverter display
ISG1O-6000/1-I
External sensor
.
Reason: Leakage and drop voltage at
the wiring and/or the transmitting inter-
vals from the energy sensor the
Room-Manager and the update intervals
at the PV-inverter display.

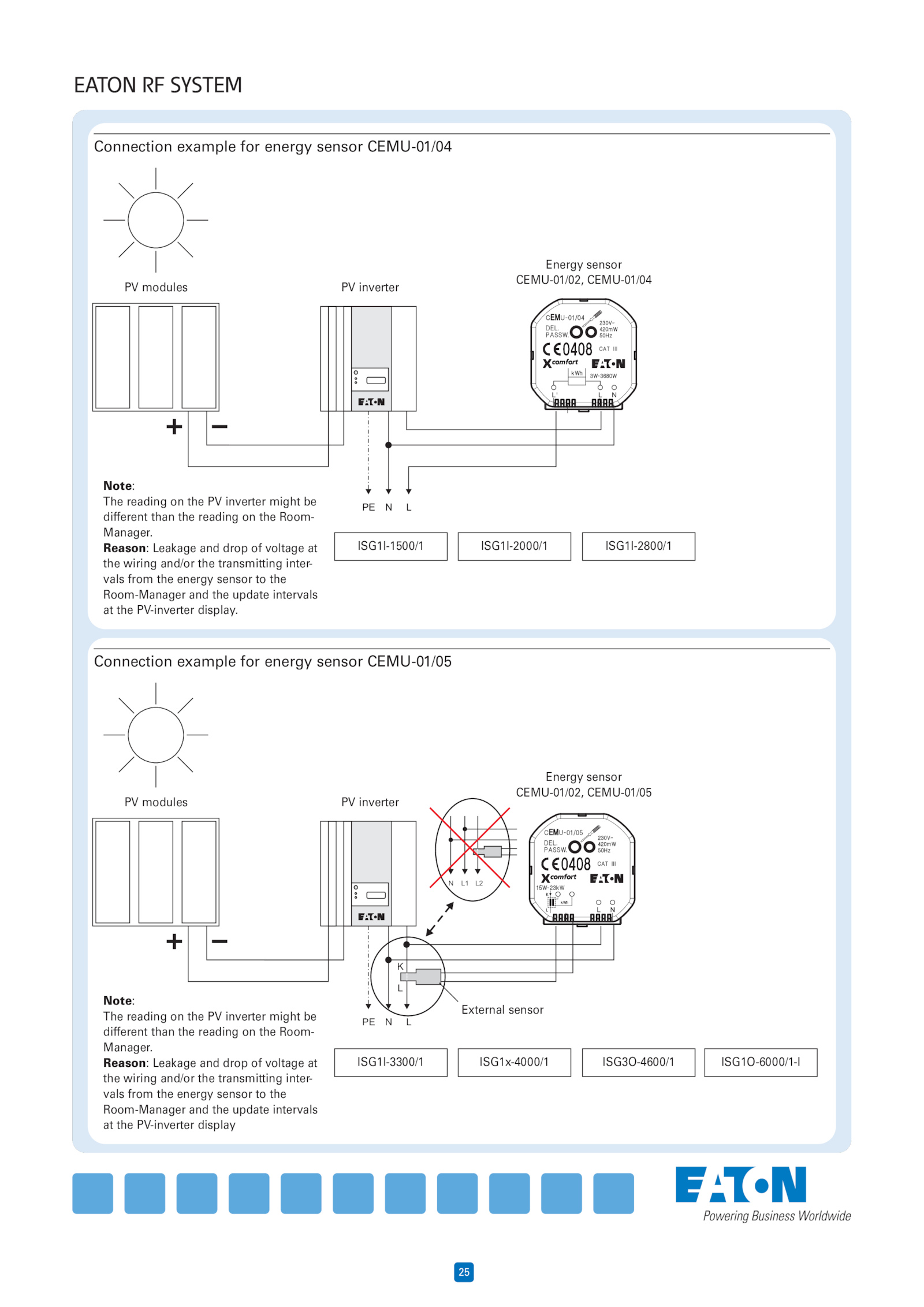

Connection example for energy sensor CEMU-01/05
PE L
L
K
N L2
ISG1I-3300/1
PV modules inverter
Energy sensor
CEMU-01/02, CEMU-01/05
ISG1x-4000/1 ISG3O-4600/1
Note:
The reading the inverter might be
different than the reading the Room-
Manager.EATON SYSTEM
25
Connection example for energy sensor CEMU-01/04
ISG1I-1500/1
PV modules inverter
Energy sensor
CEMU-01/02, CEMU-01/04
ISG1I-2000/1 ISG1I-2800/1
Note:
The reading the inverter might be
different than the reading the Room-
Manager
