EATON system

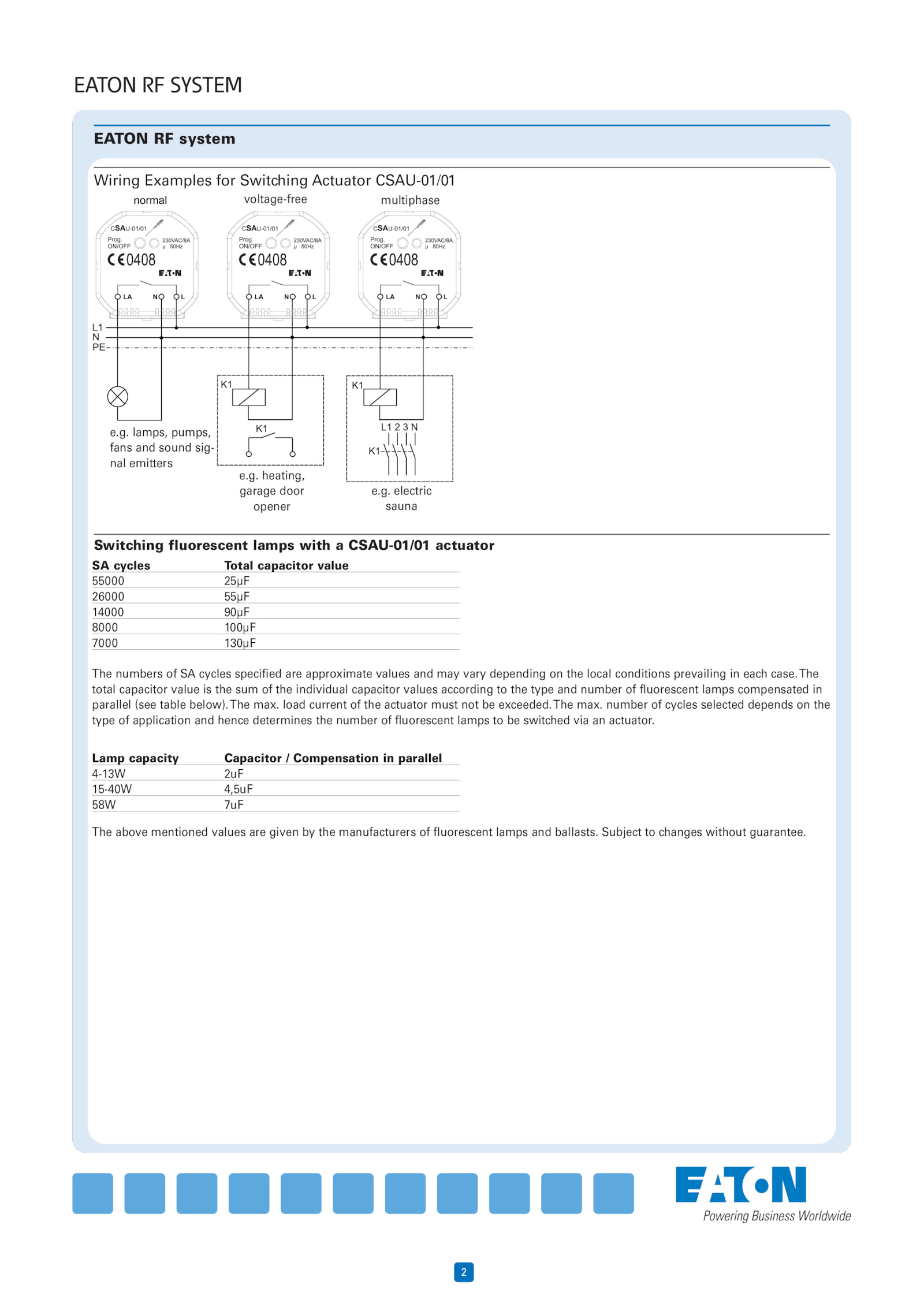

Wiring Examples for Switching Actuator CSAU-01/01
e.g.The max. lamps, pumps,
fans and sound sig-
nal emitters
e.
Lamp capacity Capacitor Compensation parallel
4-13W 2uF
15-40W 4,5uF
58W 7uF
The above mentioned values are given the manufacturers fluorescent lamps and ballasts.The
total capacitor value the sum the individual capacitor values according the type and number fluorescent lamps compensated in
parallel (see table below).The max. number cycles selected depends the
type application and hence determines the number fluorescent lamps switched via actuator. heating,
garage door
opener
e.g. electric
sauna
voltage-free multiphase
Switching fluorescent lamps with CSAU-01/01 actuator
SA cycles Total capacitor value
55000 25µF
26000 55µF
14000 90µF
8000 100µF
7000 130µF
The numbers cycles specified are approximate values and may vary depending the local conditions prevailing each case. load current the actuator must not exceeded.
. Subject changes without guarantee
