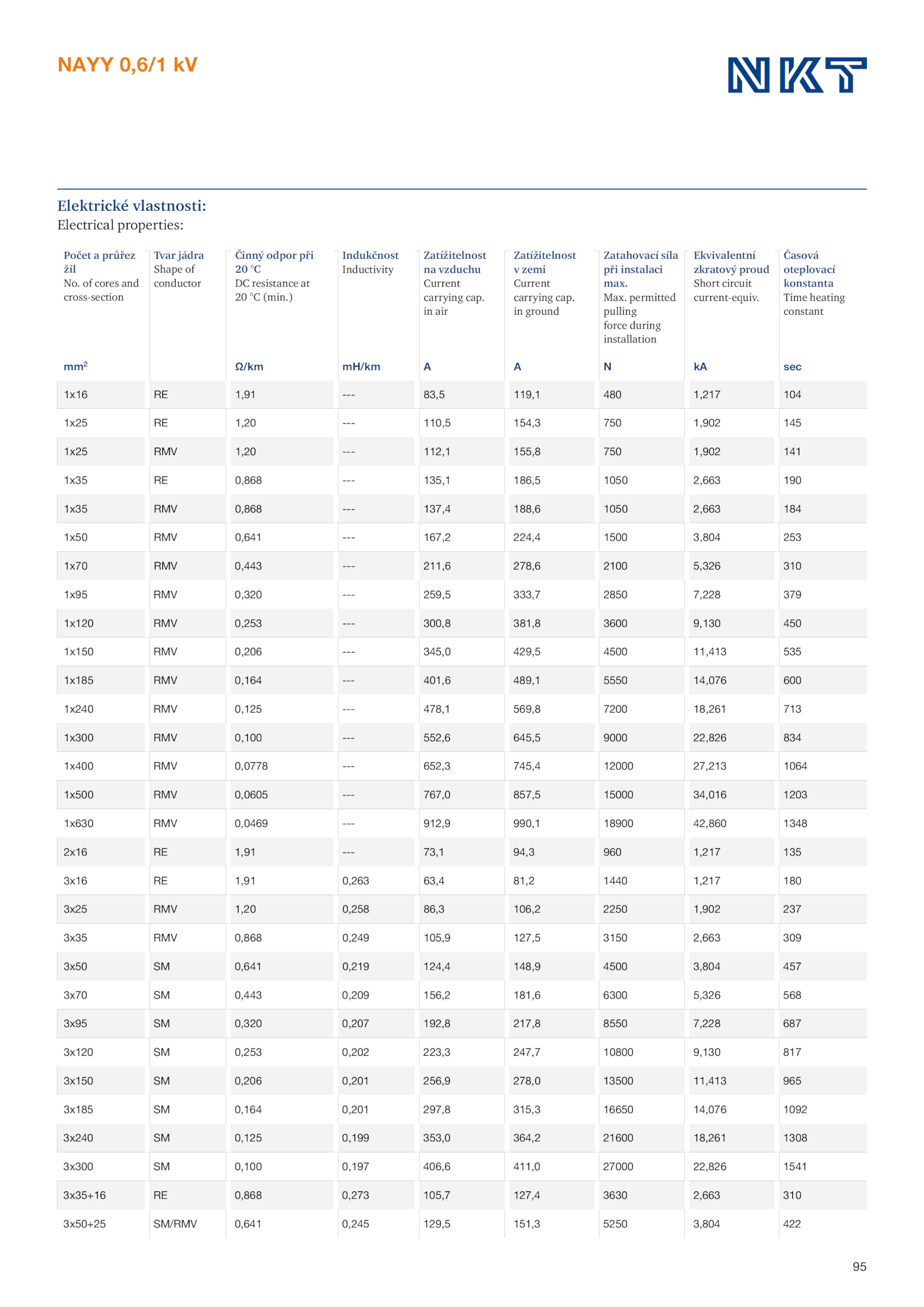

in air Zatížitelnost v zemi Current carrying cap.95 NAYY 0,6/1 kV Elektrické vlastnosti: Electrical properties: Počet průřez žil No. in ground Zatahovací síla při instalaci max. Max.) Indukčnost Inductivity Zatížitelnost na vzduchu Current carrying cap. Časová oteplovací konstanta Time heating constant mm2 Ω/km mH/km sec 1x16 1,91 --- 83,5 119,1 480 1,217 104 1x25 1,20 --- 110,5 154,3 750 1,902 145 1x25 RMV 1,20 --- 112,1 155,8 750 1,902 141 1x35 0,868 --- 135,1 186,5 1050 2,663 190 1x35 RMV 0,868 --- 137,4 188,6 1050 2,663 184 1x50 RMV 0,641 --- 167,2 224,4 1500 3,804 253 1x70 RMV 0,443 --- 211,6 278,6 2100 5,326 310 1x95 RMV 0,320 --- 259,5 333,7 2850 7,228 379 1x120 RMV 0,253 --- 300,8 381,8 3600 9,130 450 1x150 RMV 0,206 --- 345,0 429,5 4500 11,413 535 1x185 RMV 0,164 --- 401,6 489,1 5550 14,076 600 1x240 RMV 0,125 --- 478,1 569,8 7200 18,261 713 1x300 RMV 0,100 --- 552,6 645,5 9000 22,826 834 1x400 RMV 0,0778 --- 652,3 745,4 12000 27,213 1064 1x500 RMV 0,0605 --- 767,0 857,5 15000 34,016 1203 1x630 RMV 0,0469 --- 912,9 990,1 18900 42,860 1348 2x16 1,91 --- 73,1 94,3 960 1,217 135 3x16 1,91 0,263 63,4 81,2 1440 1,217 180 3x25 RMV 1,20 0,258 86,3 106,2 2250 1,902 237 3x35 RMV 0,868 0,249 105,9 127,5 3150 2,663 309 3x50 0,641 0,219 124,4 148,9 4500 3,804 457 3x70 0,443 0,209 156,2 181,6 6300 5,326 568 3x95 0,320 0,207 192,8 217,8 8550 7,228 687 3x120 0,253 0,202 223,3 247,7 10800 9,130 817 3x150 0,206 0,201 256,9 278,0 13500 11,413 965 3x185 0,164 0,201 297,8 315,3 16650 14,076 1092 3x240 0,125 0,199 353,0 364,2 21600 18,261 1308 3x300 0,100 0,197 406,6 411,0 27000 22,826 1541 3x35+16 0,868 0,273 105,7 127,4 3630 2,663 310 3x50+25 SM/RMV 0,641 0,245 129,5 151,3 5250 3,804 422 . cores and cross-section Tvar jádra Shape of conductor Činný odpor při 20 °C DC resistance at 20 (min. permitted pulling force during installation Ekvivalentní zkratový proud Short circuit current-equiv
