Silové kabely a vodiče

| Kategorie: Katalog  | Tento dokument chci!

Vydal: nkt cables s.r.o.

Strana 197 z 208







Poznámky redaktora

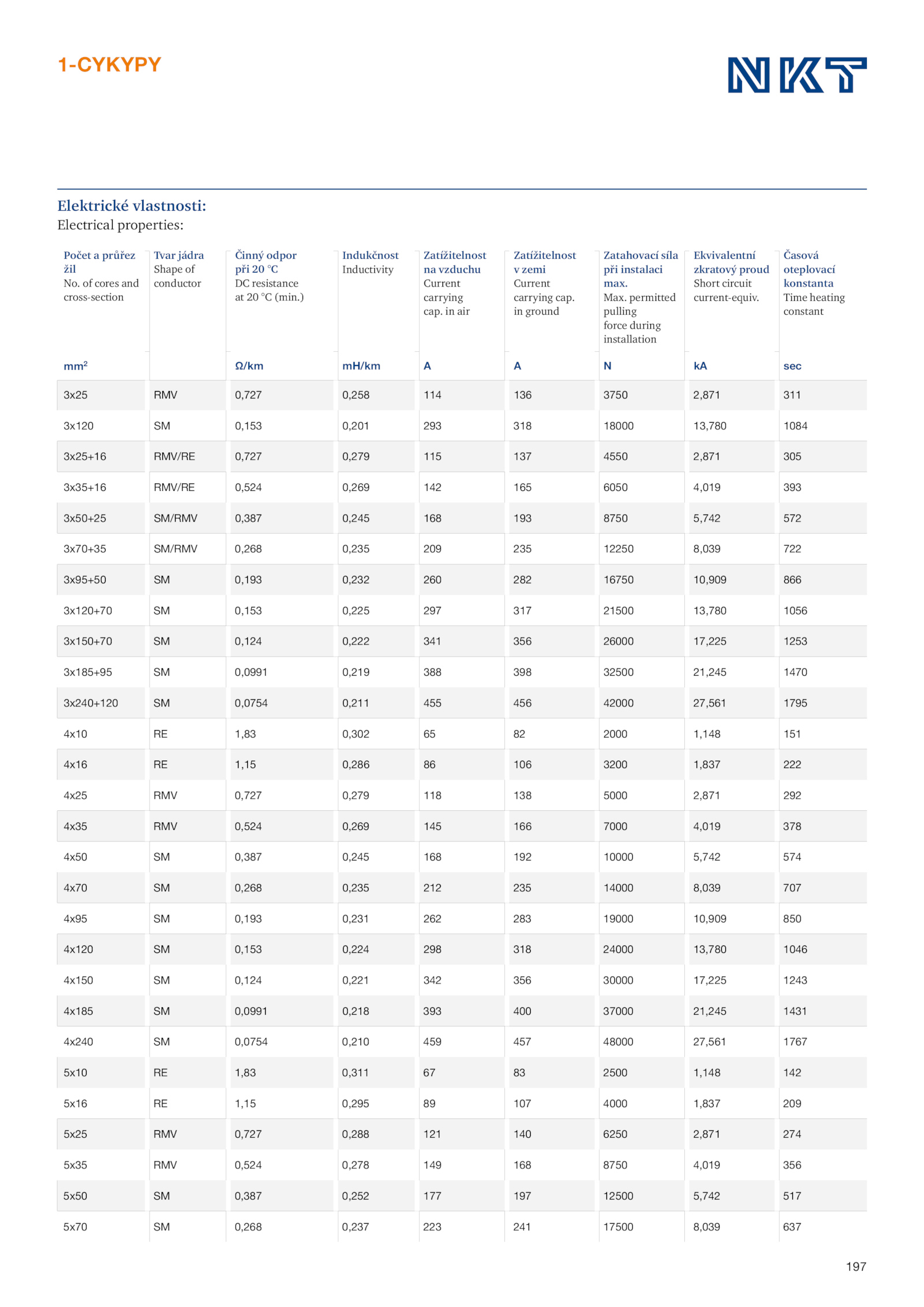

Časová oteplovací konstanta Time heating constant mm2 Ω/km mH/km sec 3x25 RMV 0,727 0,258 114 136 3750 2,871 311 3x120 0,153 0,201 293 318 18000 13,780 1084 3x25+16 RMV/RE 0,727 0,279 115 137 4550 2,871 305 3x35+16 RMV/RE 0,524 0,269 142 165 6050 4,019 393 3x50+25 SM/RMV 0,387 0,245 168 193 8750 5,742 572 3x70+35 SM/RMV 0,268 0,235 209 235 12250 8,039 722 3x95+50 0,193 0,232 260 282 16750 10,909 866 3x120+70 0,153 0,225 297 317 21500 13,780 1056 3x150+70 0,124 0,222 341 356 26000 17,225 1253 3x185+95 0,0991 0,219 388 398 32500 21,245 1470 3x240+120 0,0754 0,211 455 456 42000 27,561 1795 4x10 1,83 0,302 2000 1,148 151 4x16 1,15 0,286 106 3200 1,837 222 4x25 RMV 0,727 0,279 118 138 5000 2,871 292 4x35 RMV 0,524 0,269 145 166 7000 4,019 378 4x50 0,387 0,245 168 192 10000 5,742 574 4x70 0,268 0,235 212 235 14000 8,039 707 4x95 0,193 0,231 262 283 19000 10,909 850 4x120 0,153 0,224 298 318 24000 13,780 1046 4x150 0,124 0,221 342 356 30000 17,225 1243 4x185 0,0991 0,218 393 400 37000 21,245 1431 4x240 0,0754 0,210 459 457 48000 27,561 1767 5x10 1,83 0,311 2500 1,148 142 5x16 1,15 0,295 107 4000 1,837 209 5x25 RMV 0,727 0,288 121 140 6250 2,871 274 5x35 RMV 0,524 0,278 149 168 8750 4,019 356 5x50 0,387 0,252 177 197 12500 5,742 517 5x70 0,268 0,237 223 241 17500 8,039 637 . Max. in ground Zatahovací síla při instalaci max.197 1-CYKYPY Elektrické vlastnosti: Electrical properties: Počet průřez žil No.) Indukčnost Inductivity Zatížitelnost na vzduchu Current carrying cap. air Zatížitelnost v zemi Current carrying cap. cores and cross-section Tvar jádra Shape of conductor Činný odpor při °C DC resistance at (min. permitted pulling force during installation Ekvivalentní zkratový proud Short circuit current-equiv
